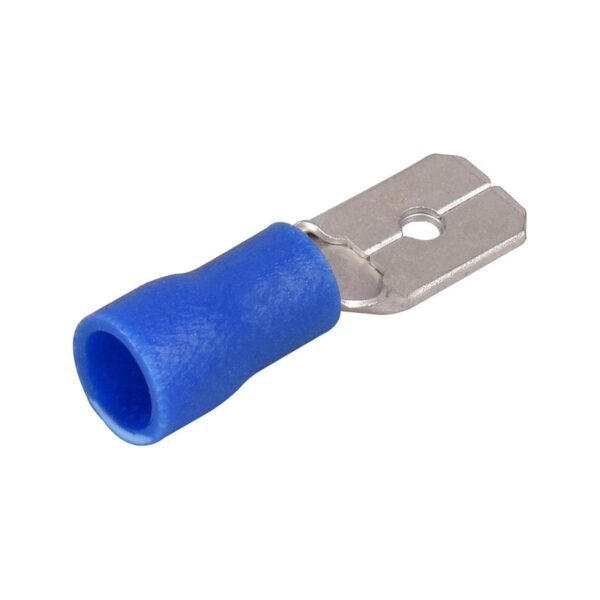

2009-504 – Male Spade Crimp Connector 18-22AWG (x100)

2009-504: Features and Benefits of this Male Spade Connector

The 2009-504 male spade crimp connector is designed for creating secure and reliable electrical connections, primarily in automotive applications. Ideal for both professional mechanics and DIY enthusiasts, these connectors offer a straightforward solution for joining wires. This pack contains 100 connectors and is compatible with 18-22 AWG (American Wire Gauge) wires.

Key Features of the 2009-504 Connector

• Electro-tin plated copper cores for corrosion resistance and secure crimps.
• Durable male fully insulated nylon quick disconnects
• Meets industry standards for wire gauge (18-22 AWG).

Benefits of Using Spade Connectors

• Easy to Install: Spade connectors simplify the wiring process, reducing the time and effort required for installations.
• Safe and Secure Connection: These connectors provide a firm, vibration-resistant connection, minimizing the risk of shorts and disconnections.
• Reliability: Designed for durability, these connectors ensure long-lasting electrical performance.

Technical Specifications and Materials

Material Composition

• Connector Material: Electro-tin plated copper for excellent conductivity and corrosion resistance.
• Insulation Material: High-quality nylon, providing electrical insulation and protection.

Dimensions and Compatibility

• Wire Gauge: Compatible with 18-22 AWG wires.
• Dimensions (Length, Width, Height): Contact the manufacturer for specific dimensional data.

How to Properly Crimp 2009-504 Connectors

Step-by-Step Crimping Guide

1. Step 1: Prepare the wire by stripping the insulation to the correct length, typically around 1/4 inch, according to industry standards.
2. Step 2: Insert the stripped wire into the barrel of the 2009-504 connector until the wire end is fully seated.
3. Step 3: Use a proper crimping tool designed for insulated connectors. Place the connector and wire into the correct jaw of the crimping tool. Squeeze the handles of the crimping tool firmly until the crimp is complete. The crimp should be secure and create a strong electrical and mechanical connection.
4. Step 4: Consult online videos for visual aids.

Applications and Use Cases

Common Applications

• Connecting automotive lights, including headlights, taillights, and interior lights.
• Ideal for use in wiring kits for various automotive accessories.
• Used to upgrade existing automotive electrical systems for improved performance and reliability.

Safety and Installation Tips

Important Safety Precautions

• Turn off power to the circuit before working with electrical wiring. This is crucial to prevent electrical shock.
• Wear safety goggles to protect your eyes from wire clippings or debris.
• Use the correct crimping tool designed for the 18-22 AWG wire and insulated connectors to ensure a secure and reliable connection. Incorrect tools can lead to loose connections, which can cause electrical issues.
