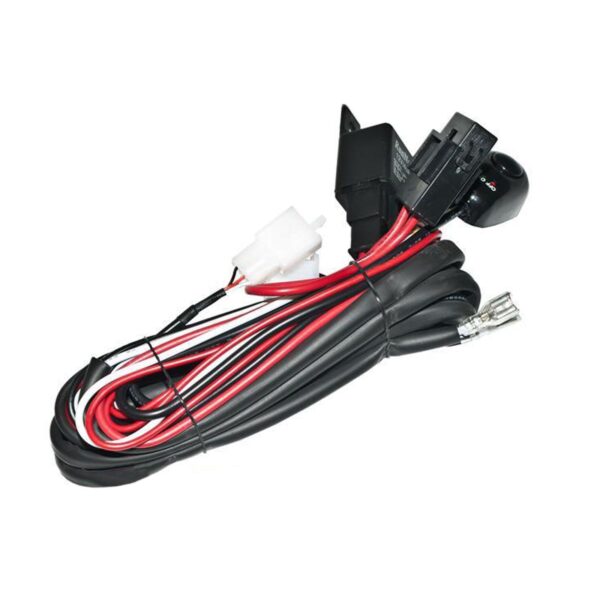

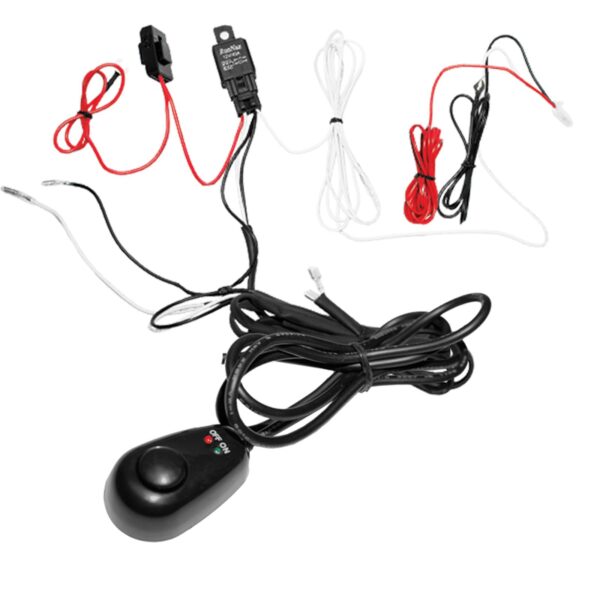

2014-504 – ORACLE Off-Road 40A Double Light Harness – Light Duty

ORACLE 2014-504 Light Harness: Features and Benefits

The ORACLE 2014-504 light harness is designed for off-road enthusiasts seeking a reliable solution for connecting and powering auxiliary lights. This harness streamlines the installation process and ensures optimal performance for various off-road lighting setups. By utilizing this harness, users can enhance their vehicle’s lighting capabilities and improve visibility during nighttime driving or off-road adventures.

Key Features

The ORACLE 2014-504 light harness is distinguished by several key features that contribute to its ease of use and operational efficiency. These include:

• Pre-wired on/off switch
• Weather-packed connectors
• High output wattage (e.g., 80 Watts)
• Heavy-duty relay (e.g., 40A)

Benefits of Using the ORACLE 2014-504 Harness

Employing the ORACLE 2014-504 harness offers multiple advantages, including simplified installation, dependable power delivery, and enhanced protection against the elements. These benefits combine to provide a superior lighting solution for off-road vehicles.

• Simplified Installation: This harness significantly simplifies the process of adding LED or other auxiliary lights to your vehicle, reducing installation time and complexity.
• Reliable Power Supply: The harness ensures a stable and consistent power supply, crucial for maximizing the performance of your off-road lights. A stable power supply helps to maintain consistent brightness and prolong the lifespan of the lights.
• Weatherproof design: Weather-packed connectors and other design elements protect the wiring from moisture, dust, and other environmental factors, ensuring the system’s durability and reliability.

Technical Specifications

The ORACLE 2014-504 light harness is engineered to meet specific performance criteria, with the following technical specifications:

Electrical Specifications

The electrical specifications of the harness are as follows:

• Max Output: 80 Watts
• Relay: 40 AMP
• Fuse: 30 AMP

Physical Dimensions

The physical dimensions of the product are as follows:

• Length: 8 inches
• Width: 3.5 inches
• Height: 3 inches

Installation Guide

Installing the ORACLE 2014-504 light harness involves a few straightforward steps, which can be easily followed with the right tools and a basic understanding of automotive wiring. Detailed instructions are available from the manufacturer. Always consult the official installation guide before beginning.

Step-by-Step Installation Overview

Here is a general overview of the installation steps:

1. Connect the Harness to the light source.
2. Connect the harness to the vehicle’s power source.
3. Connect the pre-wired switch.
4. Verify that all connections are secure.

Compatibility and Application

The ORACLE 2014-504 light harness is designed to be compatible with a wide range of off-road lighting systems and vehicle types, providing versatility and ease of use for various applications.

Compatible Light Types

This harness is designed to work with various light types, including but not limited to:

• LED Light Bars
• Off-Road Lights
• Fog Lights

Vehicle Compatibility

The harness can be used on a range of vehicle types, including:

• Trucks
• SUVs
• ATVs

Care and Maintenance

Proper care and maintenance can extend the lifespan of the ORACLE 2014-504 light harness and ensure optimal performance. Regular inspections and cleaning are recommended.

Cleaning and Inspection

To maintain the harness, follow these steps:

• Explain how to clean the harness
• Suggest inspecting the connections
