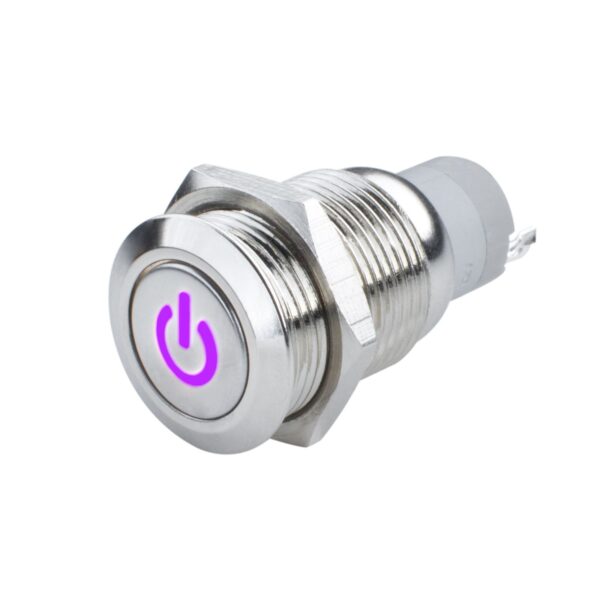

2050-007 – ORACLE Pre-Wired Power Symbol Momentary Flush Mount LED Switch

ORACLE 2050-007: Features and Benefits of the Power Symbol Switch

The ORACLE 2050-007 is a high-quality LED switch designed for seamless integration into vehicle interiors and other applications requiring a durable and aesthetically pleasing control solution. Featuring a distinctive power symbol and a flush mount design, this switch is engineered to provide reliable performance and a clean, professional look. Its pre-wired design simplifies installation, making it a convenient choice for both professional installers and DIY enthusiasts. This switch is ideal for controlling various LED lighting setups, ensuring both functionality and style. The momentary switch type allows for easy on-off control, adding convenience to its use.

Key Features of the ORACLE 2050-007

The ORACLE 2050-007 switch has been designed with several key features to ensure optimal performance and ease of use. An image of the switch would be a great addition here.

• Flush Mount Design: The flush mount design offers a clean, integrated appearance, blending seamlessly with your vehicle’s interior or chosen application. This design minimizes protrusion, providing a sleek and modern aesthetic.
• Pre-Wired for Easy Installation: This feature streamlines the installation process, saving time and reducing the complexity of wiring. The pre-wired design ensures a secure and reliable connection with minimal effort.
• Momentary Switch Type: The momentary switch type means the switch is active only when pressed, returning to its off position when released. This is ideal for applications requiring a short activation period, such as controlling lights or accessories.
• LED Illumination: The built-in LED illumination with the power symbol provides clear visual feedback, indicating the switch’s status even in low-light conditions. The illuminated power symbol also enhances the switch’s visual appeal, contributing to a modern aesthetic.
• Durable Construction: Constructed with brass assemblies and nickel plating, the ORACLE 2050-007 switch is built to withstand the rigors of daily use. The high-quality materials ensure longevity and resistance to corrosion, ensuring reliable performance over time.

Benefits of Choosing the ORACLE 2050-007 Switch

Choosing the ORACLE 2050-007 switch offers numerous benefits, enhancing both the functionality and the appearance of your vehicle or project.

• Enhanced Aesthetics: The flush mount design and illuminated power symbol significantly enhance the interior appearance of your vehicle or project. This sleek design provides a professional and modern look.
• Ease of Use: The momentary switch type and tactile feedback (definitive click) make the switch easy to operate. This design ensures a user-friendly experience, allowing for quick and intuitive control.
• Durability and Reliability: The use of high-quality materials such as brass and nickel plating ensures the switch’s durability and reliability. The construction of the switch is intended to withstand frequent use and environmental factors, providing a long lifespan.
• Versatile Application: The ORACLE 2050-007 is designed for versatile use with various LED lighting setups, allowing for easy control of interior and exterior lights in cars, trucks, and other vehicles.

Detailed Specifications and Technical Information

The following specifications provide detailed technical information to help ensure the ORACLE 2050-007 meets your specific requirements. An image or diagram would be helpful here.

Electrical Specifications

• Voltage: 12V DC
• Amperage rating: 5A
• LED Color Options: Available in various LED colors, including blue, red, and white.

Physical Specifications

• Dimensions: 0.75″ (19mm) diameter face, 1.0″ (25.4mm) total length
• Mounting Hole Size: 16mm (0.63 inches)
• Materials: Brass housing with Nickel Plating

Installation Guide for the ORACLE 2050-007 Switch

Follow these instructions to properly install the ORACLE 2050-007 switch. Ensure the vehicle’s power is disconnected before starting.

Tools and Materials Needed

• ORACLE 2050-007 LED Switch
• 16mm (0.63 inches) drill bit or hole saw
• Wiring connectors (e.g., crimp connectors, solder, or wire nuts)
• Wire strippers/crimpers
• Screwdriver or other appropriate tools for panel removal
• Electrical tape or heat shrink tubing

Step-by-Step Installation Instructions

1. Step 1: Preparation. Disconnect the negative terminal of the vehicle’s battery to prevent any electrical shorts during installation. Identify the location where you want to install the switch, ensuring there is enough space behind the panel for the switch body and wiring.
2. Step 2: Wiring. Connect the switch wires to your LED lighting system according to your wiring diagram. The pre-wired design simplifies this step. Secure the connections using wiring connectors, ensuring they are properly insulated. The red wire is typically for the power source, the black wire is ground, and the other wire controls the LED. Consult the wiring diagram or the manufacturer’s instructions for specific wiring details.
3. Step 3: Mounting. Drill a 16mm (0.63 inches) hole at your chosen location if one does not already exist. Insert the switch body through the hole and secure it using the provided hardware. Ensure the switch is flush against the mounting surface and firmly in place.
4. Step 4: Testing. Reconnect the negative terminal of the vehicle’s battery. Test the switch by pressing it to see if the LED lights and connected accessories are activated. If everything functions as expected, the installation is complete. If the switch does not function, double-check all connections and wiring for any errors.

ORACLE 2050-007 Switch: Applications and Use Cases

The ORACLE 2050-007 switch is a versatile component suitable for a variety of applications, enhancing both functionality and appearance. Additional images of applications will make this section more compelling.

Common Uses in Vehicles

• Interior Lighting: Control interior LED lights, such as dome lights, footwell lights, and accent lighting.
• Exterior Lighting: Activate auxiliary lights, including fog lights, driving lights, and reverse lights.
• Off-Road Lighting: Control light bars, auxiliary lights, and other off-road accessories, providing enhanced visibility during off-road adventures.

Customization and Creative Applications

• Interior Customization: Create custom switch layouts for controlling different lights and accessories inside your vehicle.
• DIY Projects: This switch is ideal for various DIY projects where reliable and visually appealing switches are needed.
