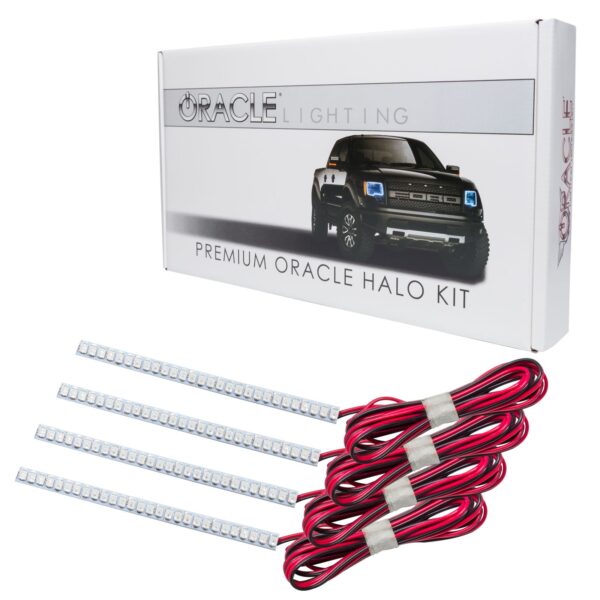

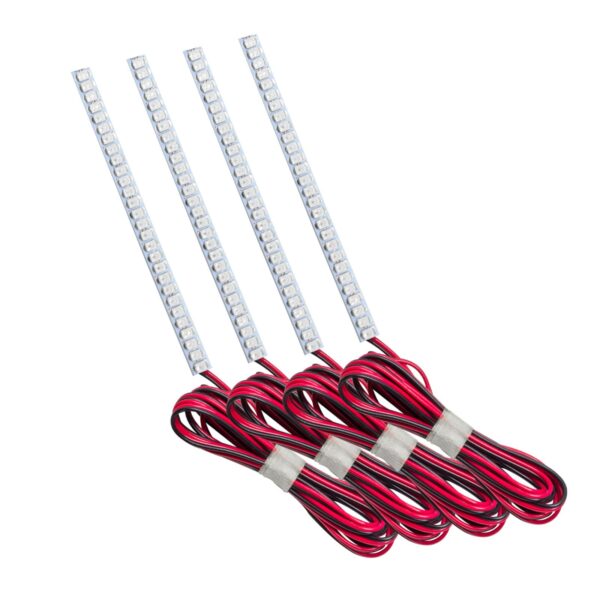

2298-005 – Ford F-150 / Raptor 2013-2014 ORACLE SMD Concept Strip for Projector Headlight

Enhance Your F-150/Raptor with ORACLE SMD Concept Strips

The ORACLE SMD Concept Strip 2298-005 is a premium lighting upgrade designed specifically for 2013-2014 Ford F-150 and Raptor models equipped with projector headlights. This innovative product is engineered to significantly enhance the appearance and functionality of your vehicle’s headlights, offering a modern, customized look. Unlike standard headlights, the ORACLE SMD Concept Strip utilizes advanced Surface Mounted Device (SMD) LED technology, providing brighter, more efficient illumination while adding a unique styling element to your truck. According to industry standards, upgrading to LED lighting improves visibility and can contribute to increased safety on the road.

Why Choose ORACLE SMD Concept Strips?

Choosing ORACLE SMD Concept Strips provides a multitude of benefits over standard headlight configurations. These strips deliver a significantly brighter light output, improving visibility during nighttime driving or in adverse weather conditions. The SMD LEDs are designed for energy efficiency, consuming less power while producing more light compared to traditional halogen bulbs. Furthermore, the strips offer a sleek, modern aesthetic that dramatically enhances the appearance of your Ford F-150 or Raptor. With customizable color options, you can personalize your vehicle’s lighting to match your style. The plug-and-play installation ensures a straightforward upgrade process, requiring no complex modifications to your vehicle.

Key Features and Benefits

• Durable, high-quality SMD LED construction
• Customizable color options
• Plug-and-play installation for ease of use
• Increased visibility and safety

Installation Guide: Installing ORACLE SMD Concept Strips

Installing ORACLE SMD Concept Strips is a manageable task for those with basic automotive knowledge. Following these steps will ensure a successful installation, upgrading your F-150 or Raptor headlights. Always disconnect the vehicle’s battery before beginning any electrical work to prevent shorts or damage.

Tools and Materials Needed

• Screwdrivers (Phillips head and flathead)
• Socket set
• Wire strippers and crimpers
• Electrical tape or heat shrink tubing
• Gloves
• Safety glasses

Step-by-Step Installation Instructions

1. Step 1: Headlight Removal

Carefully remove the headlight assembly from your vehicle. Refer to your vehicle’s owner’s manual or a reliable online guide for specific instructions on removing the headlights. Typically, this involves removing a few screws or bolts and disconnecting the electrical connectors.

2. Step 2: Strip Placement

Once the headlights are removed, open them carefully. Position the ORACLE SMD Concept Strips within the headlight housing. Ensure they are securely placed and aligned according to your desired aesthetic. The strips are designed to fit precisely, but precise alignment is essential for the best results.

3. Step 3: Wiring and Connection

Connect the SMD strip wires to the vehicle’s power source. The wiring will typically involve connecting the positive and negative wires to the appropriate terminals. Use wire strippers and crimpers to make secure connections, and then use electrical tape or heat shrink tubing to insulate the connections properly, preventing shorts or damage. Refer to the product’s wiring diagram for specific details.

4. Step 4: Headlight Reassembly

Carefully reassemble the headlight components, ensuring all parts are correctly aligned and secured. Once reassembled, reattach the headlight assembly to the vehicle. Double-check that all screws and bolts are firmly tightened.

5. Step 5: Testing and Final Adjustments

Reconnect the vehicle’s battery and test the newly installed SMD strips. If the strips do not illuminate, double-check all wiring connections. Make any necessary adjustments to ensure the lighting is aligned correctly and functions as expected. Ensure proper beam direction to avoid blinding other drivers.

Technical Specifications and Compatibility

Understanding the technical specifications and compatibility of the ORACLE SMD Concept Strip 2298-005 is crucial for ensuring a proper fit and optimal performance. The following specifications outline the dimensions and electrical requirements of the product, as well as the specific vehicle models it is designed for.

Product Dimensions

The exact measurements of the SMD Concept Strip are essential for ensuring it will fit within your headlight housing. Measure carefully before beginning the installation process to confirm that the strip will fit correctly and allow the headlight components to be reassembled without issue.

• Length: 8.4″
• Width: 0.8″
• Height: 2.3″

Electrical Specifications

The electrical specifications are critical for ensuring the SMD strips operate safely and efficiently. Verify that your vehicle’s electrical system meets these requirements before installation.

• Voltage: 12V DC
• Power Consumption: Varies by model

Vehicle Compatibility

The ORACLE SMD Concept Strip 2298-005 is specifically designed for the following vehicle models:

• 2013-2014 Ford F-150 (with projector headlights)
• 2013-2014 Ford Raptor (with projector headlights)

It is crucial to verify that your vehicle is listed to ensure a proper fit. The strips are designed to work with projector headlight assemblies. The product will not function properly, or may cause damage, if installed in headlights other than those specified.

Safety and Warranty Information

Prioritizing safety and understanding the warranty details of the ORACLE SMD Concept Strips is essential for a successful installation and long-term satisfaction. These guidelines provide important information to ensure you can safely and effectively utilize the product.

Safety Precautions

When working with electrical components, several safety precautions must be observed to prevent personal injury and damage to your vehicle. Always disconnect the vehicle’s battery before beginning any electrical work. Wear safety glasses to protect your eyes from debris. Work in a well-lit area to ensure proper visibility. Avoid working in damp conditions. If you are unfamiliar with automotive electrical systems, consult a professional for installation.

Warranty Details

The ORACLE SMD Concept Strip 2298-005 comes with a limited warranty covering manufacturing defects and failures under normal use. The warranty period is typically one year from the date of purchase. It is essential to keep your proof of purchase and review the warranty terms and conditions for complete details on coverage, limitations, and procedures for making a warranty claim. Damage resulting from improper installation or misuse is generally not covered.

Featured Accessories

Enhance your headlight customization with these additional products.

ColorShift Controller

The ColorShift Controller enhances the ORACLE SMD Concept Strips by providing dynamic color-changing capabilities. With the ColorShift Controller, users can choose from a wide range of colors and lighting effects, allowing for a personalized lighting experience. The controller offers options such as solid colors, strobe, and color-changing patterns, controlled through a smartphone app or a remote. Installation typically involves integrating the controller into the wiring of the SMD strips, providing a versatile and customizable lighting solution for your F-150 or Raptor. The ColorShift Controller improves the aesthetic and functionality of your headlights, giving your truck a unique look.
