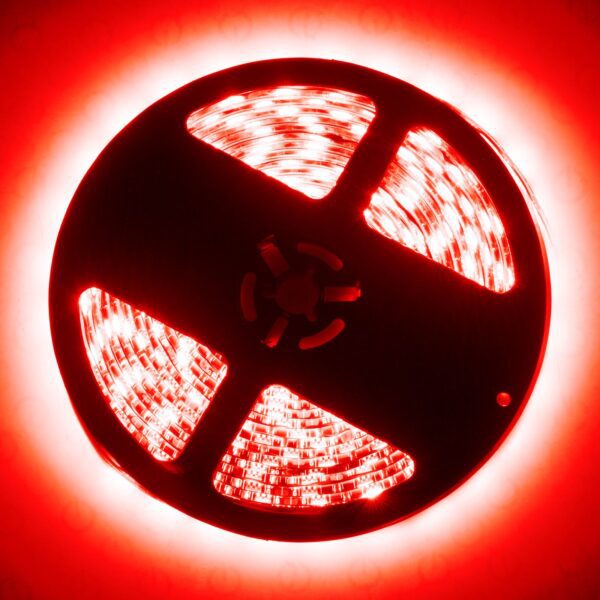

3803-003 – ORACLE Exterior Flex LED 12 in. Strip – Red

Installation and Maintenance

Installation Guide

Installing the ORACLE 3803-003 Red LED Strip is a straightforward process. Here’s a step-by-step guide to help you:

1. Prep the Surface: Clean the mounting surface thoroughly with isopropyl alcohol to remove any dirt, grease, or debris. Ensure the surface is dry before applying the LED strip.
2. Peel and Stick: Remove the protective backing from the 3M adhesive and carefully apply the LED strip to the prepared surface. Press firmly along the entire length to ensure a secure bond.
3. Wiring Instructions: Connect the LED strip to a 12V DC power source. Connect the positive and negative wires, making sure the connections are secure and protected from moisture. Use appropriate wiring connectors and consider using a fuse for added safety.
4. Testing and Final Adjustments: Test the LED strip to ensure it is functioning correctly. Make any necessary adjustments to the placement or wiring. Seal any cut ends with appropriate sealant to maintain waterproof integrity.

Care and Maintenance Tips

To ensure the longevity and optimal performance of your ORACLE 3803-003 LED Strip, follow these care and maintenance tips:

• Cleaning the LED Strip: Regularly clean the LED strip with a soft cloth and mild soap solution to remove any dirt or debris. Avoid using abrasive cleaners or solvents.
• Protecting the LED Strip: Ensure that the LED strip is protected from physical damage. Avoid sharp objects that could puncture or damage the strip.
• Troubleshooting Tips: If the LED strip fails to light, check the wiring connections for any loose connections or shorts. Verify the voltage of the power source. If the problem persists, inspect the strip for any physical damage.
