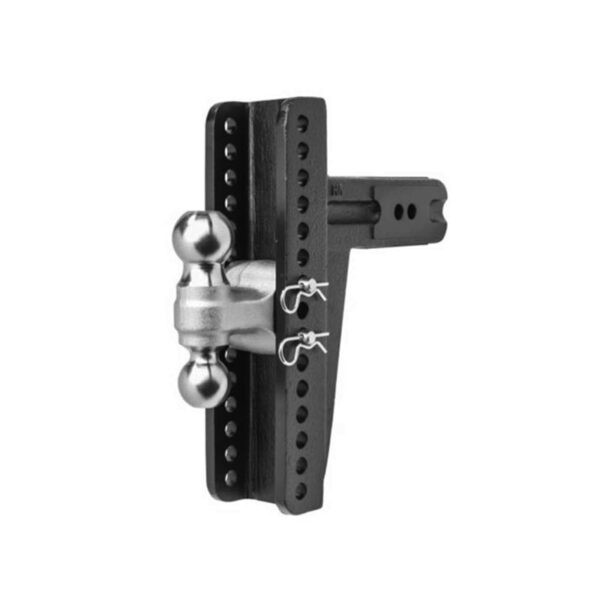

Adjustable Ball Mount

What is an Adjustable Ball Mount and Why Do You Need One?

An adjustable ball mount is a crucial component in the towing system, connecting your vehicle to the trailer. Its primary function is to provide a secure and adjustable point of connection, allowing for level towing. This is essential for safe and efficient transport. By using an adjustable ball mount, users can ensure their trailer sits level, preventing uneven wear on tires and improving handling. This setup is especially important when towing trailers of varying heights or when using vehicles with different ride heights. In essence, an adjustable ball mount enhances both the safety and the practicality of towing.

Key Features and Specifications

Construction and Materials

Adjustable ball mounts are typically constructed from high-strength, solid steel to ensure durability and reliability under heavy loads. The steel is often treated with a powder-coated finish, which offers excellent resistance to rust and corrosion, thus prolonging the lifespan of the ball mount. These ball mounts are manufactured to meet or exceed industry standards, such as those set by the Society of Automotive Engineers (SAE) J684, ensuring they can withstand the stresses of towing various trailer types.

Adjustability and Drop/Rise Range

A key feature of adjustable ball mounts is their ability to change height, allowing users to level their trailers. This is achieved through multiple height positions on the platform. The drop/rise range, measured in inches, indicates the vertical adjustment the mount can provide. For instance, a ball mount might offer a drop range of 2 inches to 10 inches, or a rise range from 2 inches to 4 inches. The actual drop or rise needed depends on the height difference between the vehicle’s receiver and the trailer coupler. The diagram illustrates the drop and rise measurements.

Towing Capacity and Ball Sizes

The towing capacity of an adjustable ball mount is a critical specification, indicating the maximum weight it can safely tow. This is usually expressed in pounds (lbs). For example, a heavy-duty adjustable ball mount may have a towing capacity of 14,000 lbs and a tongue weight capacity of 2,000 lbs. The ball mount also supports different ball sizes, such as 2-inch or 2 5/16-inch balls, to accommodate various trailer coupler sizes. Many adjustable ball mounts include a ball, and some are dual ball mounts offering two different ball sizes.

Compatibility and Installation

Adjustable ball mounts are designed to fit standard receiver sizes, with the most common being 2-inch and 2.5-inch receivers. Installation is typically straightforward, requiring basic tools such as a wrench or socket set. The ball mount slides into the receiver tube, where it is secured with a pin or a locking mechanism. Some models include a built-in adjustment system, while others may require additional tools. Installation is usually a matter of minutes, allowing for quick setup and easy adjustment to meet changing towing needs.
Check out this installation video:

Your browser does not support the video tag.

Choosing the Right Adjustable Ball Mount

Determining Your Towing Needs

Selecting the correct adjustable ball mount starts with understanding your towing requirements. You must know the gross trailer weight (GTW) and the tongue weight (TW) of your trailer. GTW is the total weight of the trailer, including its cargo, while TW is the downward force exerted by the trailer on the ball mount. Additionally, ensure the receiver size of your vehicle (e.g., 2″ or 2.5″) matches the ball mount.

Matching Ball Mount to Your Trailer

• Step 1: Match the receiver size: Confirm that the ball mount’s shank fits your vehicle’s receiver (e.g., 2″ or 2.5″).
• Step 2: Calculate the required drop/rise: To determine the correct drop or rise, measure from the top of the receiver tube to the top of the trailer coupler. If the coupler is higher than the receiver, you need a rise; if it’s lower, you need a drop. The difference between the two measurements dictates the required drop or rise.
• Step 3: Choose the correct ball size: Ensure the ball size matches the trailer coupler.

Refer to the chart below to visualize the process:

Maintaining and Using Your Adjustable Ball Mount Safely

Safety Tips for Towing

• Always check the ball mount and connections before each trip to ensure proper function and integrity.
• Ensure the trailer is properly connected to the ball mount and that the safety chains are securely attached.
• Verify the load capacity of the ball mount is sufficient for the trailer’s weight and cargo.

Maintenance and Care

Regular inspection of your adjustable ball mount is crucial for safety and longevity. Check for signs of wear and tear, such as cracks, bends, or damage. Look for corrosion, especially in areas exposed to the elements. Periodically clean the ball mount to remove dirt and debris, and lubricate moving parts to prevent rust and ensure smooth operation. Following these maintenance tips will help extend the life of your ball mount and ensure safe towing.
