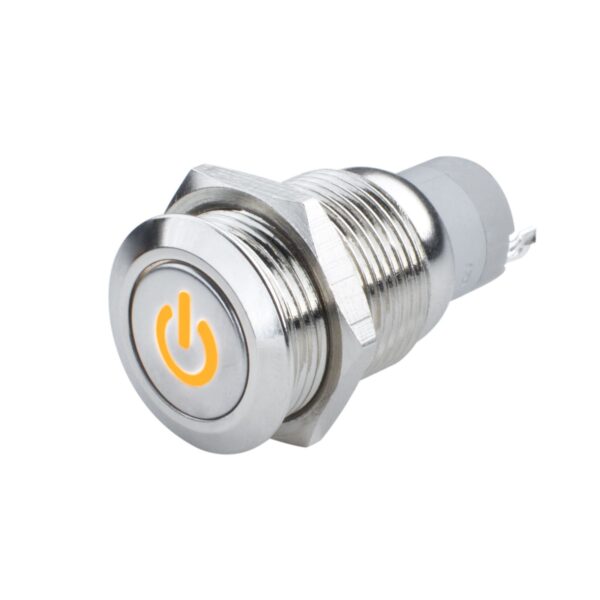

2050-005 – ORACLE Pre-Wired Power Symbol Momentary Flush Mount LED Switch

Key Features of the ORACLE 2050-005 Power Symbol Switch

Durable Construction and Design

The ORACLE 2050-005 switch is engineered for longevity and a premium feel, featuring a heavy-duty brass assembly and durable nickel-plated finishes. The flush mount design ensures a clean, integrated look on any surface, providing both aesthetic appeal and robust performance. The materials used are selected to withstand regular use while maintaining their appearance over time.

• Heavy-duty brass assembly
• Durable nickel-plated finishes
• Flush Mount Design

Illuminated Power Symbol

The switch incorporates an illuminated power symbol, which glows when activated, adding a modern touch and enhancing visibility in low-light conditions. This feature not only adds a sophisticated element but also provides a clear indication of the switch’s status, making it both stylish and functional.

• Glowing Power Symbol when activated
• Adds a modern style
• Improves visibility

Momentary Switch Functionality

The ORACLE 2050-005 utilizes a momentary switch action, meaning it provides power to a circuit only when pressed. This functionality is ideal for applications requiring brief activation, such as starting a vehicle’s ignition, controlling lighting systems, or operating specialized equipment. The press-and-release action ensures precise control and prevents accidental activation.

• Press and release action
• Provides control over a circuit only while pressed
• Suitable for applications like starting or stopping a system

Technical Specifications and Compatibility

Below are the detailed specifications for the ORACLE 2050-005 LED switch to assist in proper implementation:

Installation and Wiring Guide

Step-by-Step Installation Instructions

Installing the ORACLE 2050-005 LED switch is straightforward, provided you follow these steps. Always disconnect the power before beginning installation. If you are not comfortable with electrical work, consult a professional.

1. Preparation: Gather necessary tools, including a 16mm drill bit, wire strippers, and a screwdriver. Ensure you have the correct wiring connectors.
2. Mounting: Drill a 16mm hole in the desired location. Insert the switch body through the hole and secure it using the provided hardware.
3. Wiring: Connect the wires according to the wiring diagram. Typically, this will involve connecting the power input, ground, and the wire leading to the accessory.
4. Testing: Reconnect the power and test the switch by pressing it. Verify that the accessory activates and that the LED illuminates when the switch is engaged.

Applications and Use Cases

Vehicular Applications

The ORACLE 2050-005 is a versatile switch suitable for a variety of automotive and trucking applications, providing a professional appearance and reliable performance.

• Automotive: Interior and exterior lighting control, accessory activation, and custom modifications.
• Trucking: Auxiliary lighting, control panels, and custom truck builds.
• Exterior: Adding style to your vehicle.

Care and Maintenance

Cleaning and Maintenance

To ensure your ORACLE 2050-005 LED switch continues to function optimally and maintain its aesthetic appeal, follow these simple care instructions:

1. Clean the switch regularly with a soft, damp cloth to remove any dirt or debris. Avoid using harsh chemicals or abrasive cleaners.
2. Inspect the switch periodically for any signs of damage or wear.
3. Ensure all connections are secure to prevent electrical issues.
