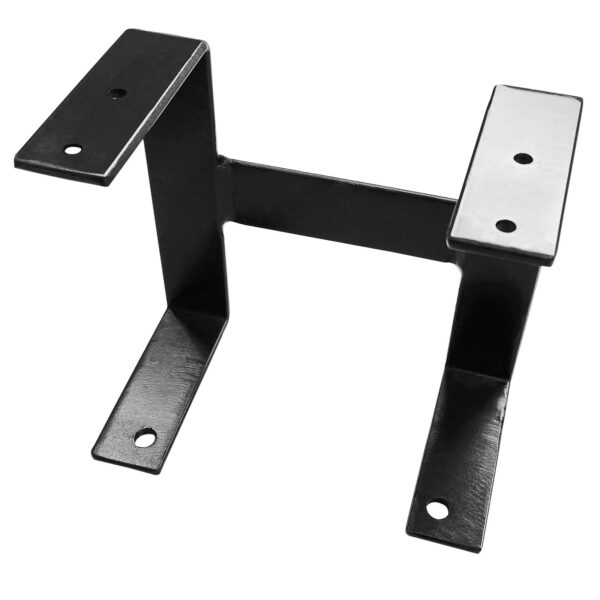

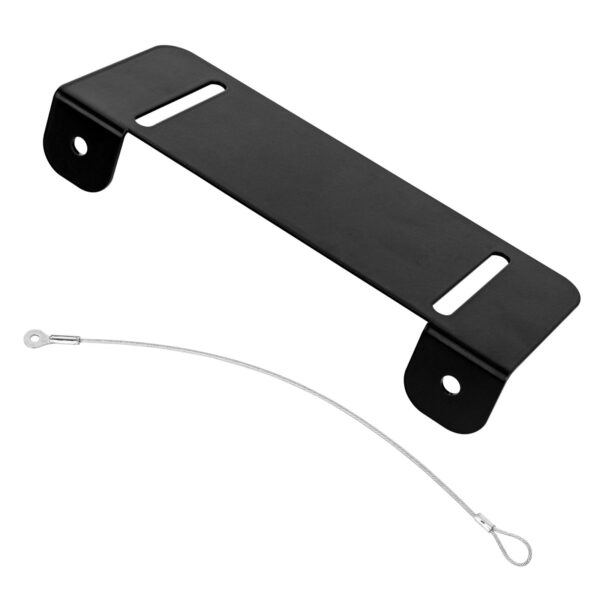

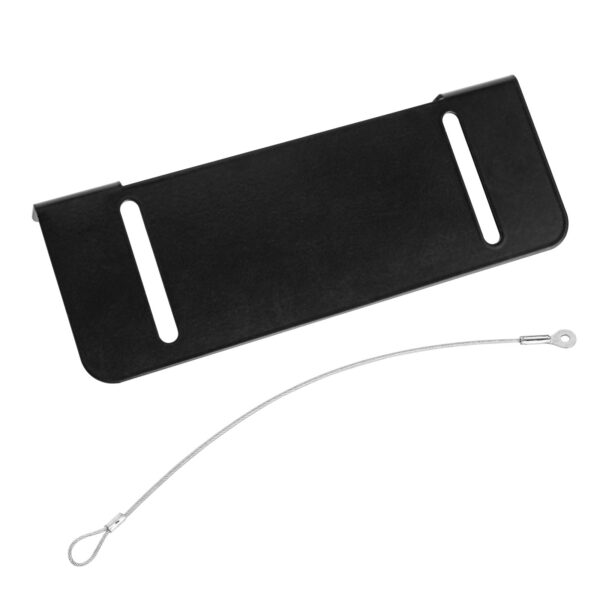

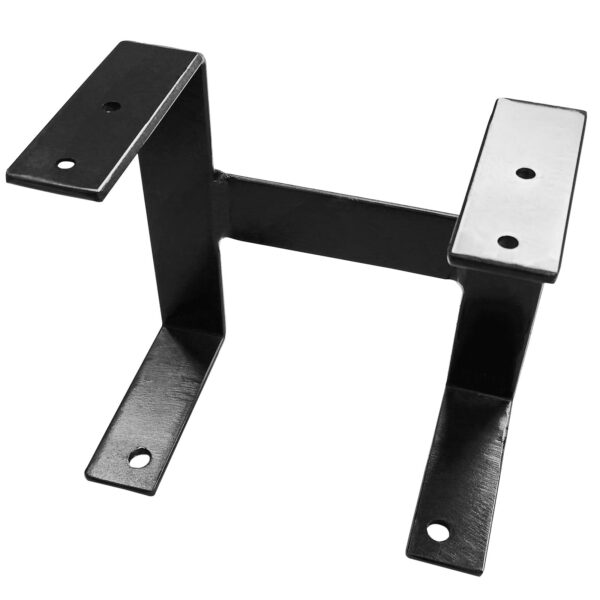

2067-504 – 2009-2017 Ford F150/250/350 ORACLE Off-Road Light Bar Bracket

Installation Guide

Step-by-Step Instructions

1. Step 1: Prepare the vehicle and gather tools. Park the vehicle on a level surface and disconnect the negative battery terminal to ensure safety. Gather the necessary tools, including a wrench, socket set, and any other tools specified in the manufacturer’s instructions.
2. Step 2: Locate mounting points on the frame. Identify the existing mounting points on the vehicle’s frame where the bracket will attach. Consult the included instructions for specific locations based on your vehicle model.
3. Step 3: Attach the bracket to the frame. Align the bracket with the mounting points and secure it using the provided hardware. Ensure all bolts are tightened to the manufacturer’s specifications for a secure fit.
4. Step 4: Mount the light bar to the bracket. Position the light bar on the bracket and secure it using the appropriate hardware. Make sure the light bar is properly aligned and securely fastened to prevent movement during operation.
5. Step 5: Wire the light bar. Connect the light bar’s wiring to the vehicle’s electrical system, following the manufacturer’s instructions. This typically involves connecting the light bar to a power source, such as the battery, and running a switch into the vehicle’s cabin for control.
6. Step 6: Test the light bar. Reconnect the negative battery terminal and test the light bar to ensure it functions correctly. Verify that the light bar illuminates and that all connections are secure.
