2006-001 – 22AWG 4 Conductor RGB Installation Wire (Sold by the Foot)

Oracle Lighting 2006-001 RGB Wire: Everything You Need to Know

What is the 2006-001 RGB Installation Wire?

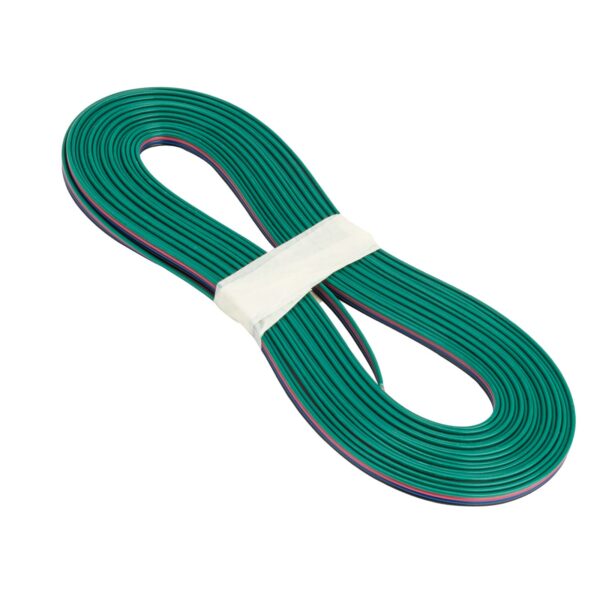

The 2006-001 RGB Installation Wire by Oracle Lighting is a premium solution engineered for automotive lighting projects. This wire is specifically designed to connect RGB (Red, Green, Blue) LED lights to controllers and power sources within vehicles, facilitating a wide array of customizable lighting effects. Sold by the foot, it provides flexibility in managing project scale, accommodating both small enhancements and extensive lighting setups. This installation wire is a core component for those looking to personalize their vehicles with vibrant and dynamic LED lighting.

• Wire specifically for RGB LED lights
• Used for connecting lights and controllers
• Key features: 22AWG, 4 conductors, sold by the foot

Key Features and Benefits

Premium Construction for Durability

The 2006-001 RGB Installation Wire is constructed with oxygen-free copper (OFC), which ensures optimal electrical conductivity and minimizes signal loss. This superior material choice enhances the wire’s performance in transmitting power and signals to your RGB LED lights. Furthermore, the wire is built to resist corrosion and degradation, even when exposed to harsh environmental conditions. This durability ensures the longevity of your lighting setup, allowing it to withstand the rigors of automotive environments. The flexibility of the wire also aids in easy routing and installation within vehicles, reducing the risk of damage during the installation process.

• Oxygen-Free Copper (OFC) to ensure optimal electrical conductivity.
• Resistance to corrosion and degradation.
• Wire’s flexibility and ease of use

22AWG Wire: The Right Gauge for RGB LED Lighting

The 22AWG wire gauge is perfectly suited for RGB LED applications because it strikes an optimal balance between current capacity and flexibility. This gauge provides sufficient current-carrying capability for most automotive LED lighting systems while remaining flexible enough to navigate the tight spaces within a vehicle. The 2006-001 wire features four conductors, allowing for comprehensive control over the red, green, and blue components of the LEDs, along with a common power or ground connection. This configuration enables a full spectrum of colors and dynamic lighting effects, customizable to your preferences.

• Appropriate gauge for low-voltage applications.
• Four conductors allow for full RGB control

Applications & Installation

Where to Use 2006-001 RGB Wire

The 2006-001 RGB wire is versatile and suitable for a wide array of automotive lighting applications, offering limitless possibilities for personalization. It is frequently used for underglow lighting, creating a visually striking effect that outlines the vehicle. Interior ambient lighting, another common application, allows for the customization of the vehicle’s cabin ambiance. Headlight and taillight accent lighting provides a unique aesthetic, enhancing the vehicle’s appearance. The wire’s adaptability makes it suitable for installation in cars, trucks, and SUVs. This allows enthusiasts to tailor their vehicles with customized lighting that reflects their individual style and preferences.

• Underglow lighting for cars and trucks
• Interior ambient lighting
• Headlight and taillight accent lighting
• Showcase the versatility and adaptability of the wire

Installation Tips and Best Practices

Proper installation is crucial for ensuring the longevity and performance of your RGB LED lighting system. Begin by carefully stripping the wire ends using a wire stripper to expose the conductors without damaging them. Secure connections are essential; depending on your needs, you can use soldering or crimping techniques. Soldering provides a robust, permanent connection, while crimping offers a quicker, more accessible solution. Once the connections are made, route the wiring neatly, securing it away from moving parts, sharp edges, and heat sources to prevent damage and ensure safety. Utilize wire looms or protective sleeves to safeguard the wiring against abrasion and environmental factors. Consider using waterproof connectors and sealants if the installation is exposed to the elements, to prevent moisture ingress and corrosion. For more detailed guidance, consult online video tutorials available to visualize the installation process.

1. Wire Stripping
2. Connection type (soldering, crimping)
3. Cable routing and protection

Technical Specifications and Compatibility

Detailed Specifications

The 2006-001 RGB Installation Wire is engineered to meet exacting standards, ensuring reliable performance and easy integration into various lighting setups. Below is a breakdown of the critical specifications:

Compatibility Information

The 2006-001 RGB Installation Wire is designed to be compatible with various RGB LED systems and controllers commonly used in automotive applications. It is suitable for use with a wide array of LED light strips, modules, and controllers that require a 12V power supply, which is standard in most vehicles. Always confirm the voltage requirements of your specific LED lights and controller to ensure they match the 12V operating range of the wire. This ensures that the lighting system operates safely and efficiently, maximizing the lifespan and performance of all components. Additionally, verify the number of conductors needed by your RGB LED setup, as the four-conductor design of this wire facilitates a full range of color control.

• Compatible with various RGB LED systems and controllers.
• Operating voltage range (e.g., 12V).

Choosing the Right Length and Accessories

How to Calculate the Right Wire Length

Accurately estimating the required wire length is crucial for a successful installation and minimizing material waste. Begin by carefully measuring the distance from the power source or controller to the location of each LED light strip or module. When measuring, follow the path the wire will take, accounting for any bends or routing around obstacles. Add extra length to your measurement to allow for comfortable connections and potential future expansions or adjustments. It’s always better to overestimate slightly rather than underestimate, as having extra wire is preferable to running short during installation. To accommodate future upgrades, consider adding extra length. By carefully planning and measuring, you can ensure you have the right amount of wire for your project.

• Measuring tips
• Estimate waste and expansion

Recommended Accessories

To complete your installation and ensure long-lasting performance, consider these essential accessories. Connectors such as crimp connectors or solder connectors are crucial for making secure and reliable electrical connections between the RGB wire and your LED lights and controllers. Heat shrink tubing provides insulation and protection for these connections, preventing short circuits and protecting against environmental damage. Installation tools such as wire strippers, crimpers, and soldering irons (if soldering) are essential for efficiently preparing the wire and making secure connections. These tools facilitate precision and speed up the installation process. By incorporating these accessories, you enhance the quality of your project and extend the lifespan of your lighting setup.

• Connectors (e.g., crimp connectors, solder connectors)
• Heat shrink tubing
• Installation tools
