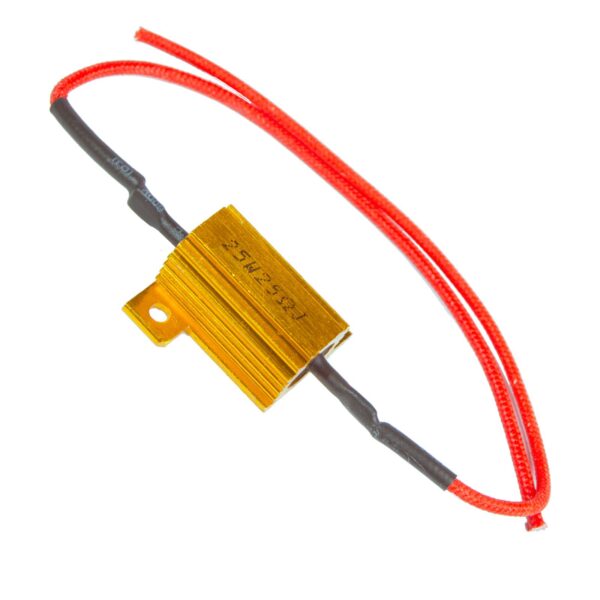

2032-504 – ORACLE 27W Resistor

How to Use and Install the ORACLE 27W Resistor 2032-504

Installation Instructions

1. Identify the turn signal or brake light wires.
2. Locate a suitable mounting location near the light housing or wiring harness. Ensure the resistor is mounted away from plastic components and other heat-sensitive materials.
3. Connect the resistor to the vehicle’s wiring using the provided connectors. Typically, one wire from the resistor connects to the positive wire of the turn signal or brake light, and the other wire connects to the ground.
4. Secure the resistor to a metal surface using the provided mounting hardware.
5. Test the lights to ensure proper function, including blink rate and the absence of error messages.

Troubleshooting Tips

If you experience issues after installation, such as continued hyper flashing or error messages, double-check your wiring connections to ensure they are secure. Verify that the resistor is properly grounded. If the problem persists, consult a professional auto electrician or review the vehicle’s service manual.

Safety Precautions

When working with vehicle electrical systems, always disconnect the negative battery terminal before starting any installation work to prevent electrical shock. Avoid touching the resistor after it has been in use, as it can become hot. Ensure the resistor is mounted away from flammable materials. Always wear safety glasses during installation. If you are not comfortable working with electrical systems, seek professional assistance.
