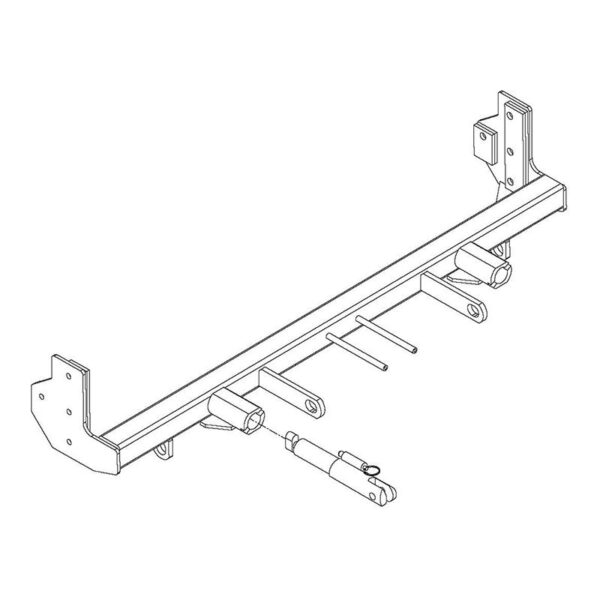

Base Plate

Installation and Use Instructions

Installation Overview

Installing a base plate involves several key steps to ensure a secure and reliable connection. Before starting, gather the necessary tools, including a socket set, wrenches, and a torque wrench. Begin by preparing the vehicle, which may include removing the front bumper or undercarriage components to access the mounting points. Next, attach the base plate brackets to the vehicle frame, using the provided hardware. Carefully route any necessary wiring for lights or other accessories, ensuring it is protected from damage. Finally, double-check all connections and torque all bolts to the manufacturer’s specifications.

1. Step 1: Preparation – Gather tools and prepare the vehicle.
2. Step 2: Mounting – Attach the base plate brackets to the frame.
3. Step 3: Wiring – Connect any necessary wiring.
4. Step 4: Final Checks – Ensure all connections are secure.

Connecting to the Tow Bar

Once the base plate is installed, connecting to the tow bar is a straightforward process. Align the tow bar with the base plate’s connection points and secure them according to the tow bar manufacturer’s instructions. Ensure that the locking mechanisms are engaged and that the connection is firm. Regularly inspect the connection for wear and tear, and follow all safety guidelines provided by both the base plate and tow bar manufacturers. Diagrams and visuals can be found in the included user manual.

Safety Precautions

Safety should always be the top priority when towing a vehicle. Before each trip, conduct a thorough inspection of the base plate, tow bar, and all related components. Check for any signs of damage, such as cracks, bends, or excessive wear. Always adhere to the weight limits specified by both the base plate and the tow bar manufacturers. Proper vehicle preparation includes ensuring the towed vehicle’s lights are functioning correctly and that the vehicle is properly aligned. Review and follow all local and federal regulations regarding towing. Regular maintenance and inspections are essential for safe and reliable towing.
