Base Plate

What is a Base Plate?

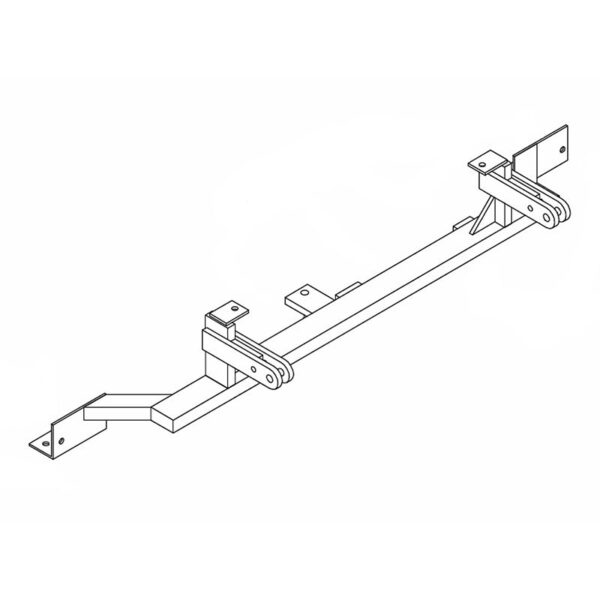

A base plate is a crucial component in a flat towing system, designed to connect the towed vehicle to the tow bar. It serves as the primary interface, allowing the towed vehicle to be safely and securely pulled behind another vehicle. The base plate is custom-designed to attach to the frame of a specific vehicle, ensuring a secure and stable connection. Different types of base plates are available, including custom-fit and universal models.

Purpose and Function

The base plate’s primary role is to provide a solid and reliable attachment point for the tow bar, which then connects to the towing vehicle. This connection allows the towed vehicle to follow the towing vehicle’s movements. The base plate is engineered to withstand the stresses of towing, including acceleration, braking, and turning forces, ensuring the towed vehicle remains securely connected. The base plate connects to the tow bar via removable pins or other locking mechanisms.

Types of Base Plates

Base plates are generally categorized as custom-fit or universal. Custom-fit base plates are designed specifically for certain vehicle makes and models, ensuring a precise fit and optimal performance. Universal base plates, on the other hand, are designed to fit a wider range of vehicles but may require some modifications during installation.

Key Features and Benefits of a Base Plate

A base plate offers several key features and benefits that make it an essential component for flat towing.

Durability and Construction

Base plates are constructed from durable materials such as high-strength steel to withstand the rigors of towing. They often feature a powder-coated finish to resist corrosion and protect against the elements. Measurements often include a length of 47 inches, a width of 19 inches, and a height of 8 inches. The robust construction ensures the base plate can handle the forces exerted during towing and withstand the harsh conditions of the road.

• The rugged design allows the base plate to endure significant towing forces and various road conditions.
• Welding and coating processes enhance the base plate’s durability, extending its lifespan.

Easy Installation

Base plates are designed for relatively straightforward installation, often with user-friendly features. Most base plates come with all the necessary hardware, including bolts, brackets, and instructions, simplifying the installation process. While professional installation is an option, many base plates can be installed by individuals with basic mechanical skills and tools.

• Base plates are generally supplied with all required hardware for installation.
• DIY installation is often feasible, but following the manufacturer’s instructions carefully is crucial.

Compatibility and Fitment

Base plates are engineered to fit a wide array of vehicle models, enhancing the utility of towing. It’s important to verify the fitment of the base plate to specific vehicle models, considering the Year, Make, and Model. Proper fitment ensures the base plate integrates safely and effectively with the vehicle’s frame, enabling safe and reliable towing.

• Compatibility with various tow bars is a key factor, ensuring the base plate works seamlessly with your towing setup.
• Vehicle-specific considerations, such as bumper modifications, may be necessary for some installations.

How to Install a Base Plate

Installing a base plate involves several steps, requiring attention to detail and safety precautions. Here’s a general guide to the installation process.

Preparation

Before starting, gather the necessary tools and take safety precautions.

1. Tools and Equipment: Wrenches, sockets, a torque wrench, safety glasses, gloves, and possibly a drill.
2. Safety Tips: Wear safety glasses to protect your eyes. Work in a well-ventilated area, and use jack stands to support the vehicle.
3. Preparatory Steps: Inspect the vehicle’s frame for any damage or corrosion. Clean the mounting areas to ensure a good fit.

Installation Steps

Follow these steps to install the base plate.

1. Step 1: Mounting the Base Plate Brackets: Position the brackets according to the manufacturer’s instructions and attach them to the vehicle frame, securing them with the provided bolts.
2. Step 2: Securing the Base Plate to the Vehicle Frame: Align the base plate with the brackets and attach it, tightening all bolts to the specified torque.
3. Step 3: Connecting the safety cables: Attach the safety cables to the base plate and towing vehicle for additional security.
4. Step 4: Final Checks and Adjustments: Verify all connections, tighten any loose bolts, and make any necessary adjustments to ensure a secure and level fit.

Tips and Troubleshooting

Keep these tips in mind during installation.

• Potential Problems and Solutions: If bolts don’t align, adjust the brackets. For rust, use a rust penetrant.
• Tips for Ensuring a Secure and Proper Fit: Ensure the base plate is level. Double-check all bolts after the first trip.
• Any Advice on Maintenance: Regularly inspect the base plate for wear and tear. Keep it clean and lubricated.

Safety Information and Regulations

Towing safely involves adhering to safety practices and complying with regulations.

Safety Checklist

Follow this checklist to ensure safe towing practices.

• Checklist of Safety Practices Before Towing: Ensure the tow bar is properly connected. Check the lights. Verify the vehicle’s brakes.
• Safety Checks to Perform Before Each Trip: Inspect the base plate, tow bar, and safety cables. Check the tire pressure.

Regulations and Compliance

Be aware of and adhere to all regulations.

• Relevant Regulations or Industry Standards: Comply with all state and federal regulations regarding towing. Follow industry standards for base plate installation.
• Any Legal Requirements Regarding Base Plate Use: Ensure the base plate is used within its specified weight limits. Check local laws regarding towing requirements.
