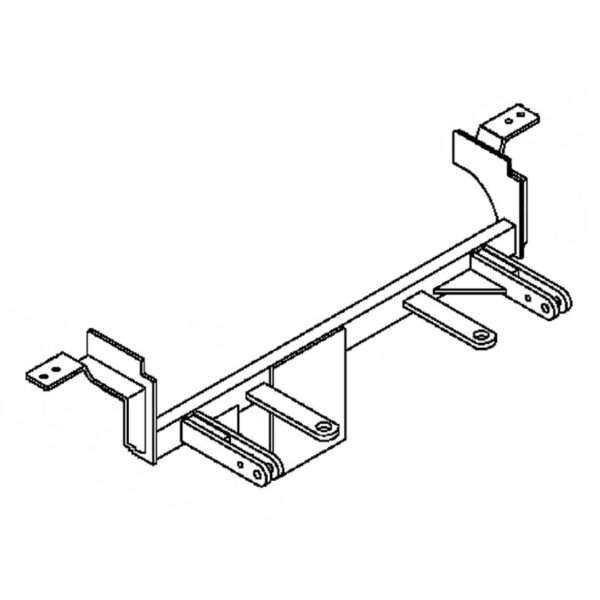

Base Plate

What is a Base Plate and How Does it Work?

A base plate is a crucial component in a vehicle’s towing system, acting as the primary connection point for the tow bar. It’s a custom-designed metal frame that securely attaches to the chassis of a vehicle, providing a robust and reliable interface for towing. Essentially, the base plate serves as the foundation upon which the tow bar, and subsequently the towed vehicle, is supported. Without a properly installed and compatible base plate, safe and effective towing is impossible.

Definition and Purpose

The base plate is specifically engineered to provide a strong and stable connection between the towing vehicle and the tow bar. This connection is fundamental for transferring the forces required to move the towed vehicle safely. The primary purpose of a base plate is to ensure a secure and reliable attachment, distributing the towing load evenly across the vehicle’s chassis. This is crucial for maintaining vehicle control, preventing damage, and ensuring the safety of both the towing and towed vehicles. This also minimizes the risk of the tow bar disconnecting during transit, which can cause a dangerous situation on the road. By providing a solid and dependable link, the base plate is a critical safety component in any towing setup.

How a Base Plate Works

The base plate works by bolting directly to the frame or chassis of the towing vehicle, using existing mounting points whenever possible to avoid the need for drilling or welding. These mounting points are designed by engineers to withstand the considerable stresses associated with towing, ensuring the base plate’s stability and durability. Once securely attached, the base plate has two or more receiver tubes or attachment points. These are where the tow bar connects. The tow bar then extends to the towed vehicle, completing the link. The design of the base plate typically involves the use of high-strength steel or other durable materials to provide the structural integrity needed for towing. The installation process for a base plate will vary depending on the vehicle and the base plate design, but the basic principle remains the same: to create a secure and reliable connection that can handle the forces involved in towing. Each base plate is meticulously designed to match the frame configuration of specific vehicle models, which ensures a perfect fit.

Simple Diagram:

The towing vehicle has the base plate that is attached to the vehicle’s frame. The tow bar links the base plate to the towed vehicle.

Key Features and Benefits of Base Plates

Choosing a base plate offers numerous benefits, including enhanced towing safety, and ease of use. The key features of base plates that contribute to their functionality, reliability, and overall value are detailed below.

Durable Construction

Base plates are constructed from high-strength steel and powder-coated to ensure their longevity and resistance to harsh conditions. The choice of materials is fundamental to the base plate’s ability to withstand the stresses of towing, including the constant forces exerted during acceleration, braking, and turning. These components are engineered to meet the performance requirements in various environments. The materials used can vary depending on the manufacturer and the specific model. However, the goal is always to create a robust and dependable product that can withstand the rigors of regular towing.

• Material Specifications: Typically, base plates are made from high-strength steel. Some manufacturers use aircraft-grade aluminum for specific applications to reduce weight without compromising strength.
• Corrosion Resistance Details: The base plate is powder-coated. This coating creates a protective barrier against rust, corrosion, and the elements. The powder-coating process involves applying a dry powder to the metal surface and then curing it under heat. This process results in a durable, uniform finish.

Custom Fit and Vehicle Compatibility

Base plates are engineered for specific vehicle makes and models. This ensures an exact fit, and makes for ease of installation. The custom fit minimizes any adjustments or modifications during installation, reducing the risk of errors or complications. Vehicle-specific base plates provide a safe and secure connection, which maximizes the towing capabilities. The use of vehicle-specific designs ensures that the base plate integrates seamlessly with the vehicle’s frame, preserving its structural integrity.

• Vehicle Fitment Chart: Vehicle fitment charts are available that identify the base plates that are compatible with a specific vehicle. Users can refer to the charts to find the correct base plate for their vehicle.
• Easy Installation: Base plates are designed to be installed with minimal modifications to the vehicle’s frame. Many models use existing holes and attachment points. This reduces the time and effort needed for installation, and minimizes the potential for errors.

Enhanced Towing Safety and Reliability

The primary function of a base plate is to enhance towing safety. The secure attachment points create a robust connection between the towing and towed vehicles, minimizing the risk of detachment during transit. The quality of the base plate’s construction, and the materials used, play a critical role in its reliability. The design of the base plate also often incorporates features to enhance safety, such as the ability to connect safety cables. These cables provide an extra layer of security. All of these features contribute to a more reliable and safer towing experience. Proper installation is crucial. Regular inspections and maintenance ensure that the base plate continues to perform effectively.

• Secure Attachment Points: Base plates feature robust attachment points. These points are designed to handle the significant forces generated during towing. The design and placement of these attachment points are crucial for ensuring a safe and reliable towing experience.
• Safety Cable Compatibility: Base plates are designed to accommodate safety cables. Safety cables are an essential safety feature in any towing setup. In the event of a tow bar failure or detachment, the safety cables will keep the towed vehicle connected to the towing vehicle, preventing a dangerous separation.

Installation and Maintenance Guide

Proper installation and regular maintenance are essential for ensuring the base plate’s effectiveness and longevity. Installation is a process that involves attaching the base plate to the vehicle’s frame, while maintenance involves periodic inspections and cleaning to ensure the base plate remains in optimal condition.

Installation Instructions

Installing a base plate typically involves several steps. Because the specific steps vary depending on the make and model of the vehicle, and the base plate, it is important to consult the manufacturer’s instructions. It is important to ensure that the base plate is correctly aligned. The installation procedure will typically involve:

1. Preparing the Vehicle: This often includes removing any underbody panels or components. The vehicle needs to be lifted to provide access to the frame.
2. Attaching the Base Plate: The base plate is then aligned with the frame. It is attached using bolts, which are often provided with the kit. It is critical that all bolts are tightened to the manufacturer’s specifications.
3. Securing and Checking: Once the base plate is attached, it’s important to double-check all connections to ensure everything is secure.

Maintenance Tips

Regular maintenance is essential for ensuring the base plate remains in optimal condition. Maintenance involves regular cleaning and inspections. Cleaning removes dirt, debris, and road salt, all of which can contribute to corrosion. Inspections involve checking for any signs of damage, such as cracks, rust, or loose bolts. A regular maintenance schedule will help extend the life of the base plate and ensure it remains safe and reliable.

• Cleaning Procedures: Use mild soap and water to clean the base plate. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Inspection and Maintenance Checklist: Perform regular inspections to identify any signs of damage. Check all bolts for tightness, and look for any rust or corrosion. Address any issues promptly.

Base Plate Specifications and Dimensions

Base plates come in various sizes and shapes, and the specifications vary. The dimensions and specifications of a base plate are important for ensuring that it is a correct fit. The dimensions and specifications of the base plate are provided by the manufacturer.

Technical Specifications

These are the general specifications, however, specific models may vary.

• Length: 46.75″
• Width: 16.5″
• Height: 10.5″
• Material: Metal
• Finish: Powder-Coated

Material and Finish Details

The base plate is constructed from high-strength metal, which is crucial for providing durability and structural integrity. The metal is then finished with a powder coating. The powder coating protects the metal from the elements, preventing rust and corrosion. The powder coating also provides a durable, long-lasting finish that will not chip or peel easily. The powder coating enhances the appearance of the base plate. The powder coating process is environmentally friendly. The combination of high-strength metal and a durable powder coating ensures that the base plate can withstand the rigors of towing. This makes the base plate a reliable and long-lasting component of the towing system.

Choosing the Right Base Plate for Your Vehicle

Selecting the correct base plate is essential for ensuring the safety and effectiveness of your towing setup. This involves considering factors such as vehicle compatibility, weight capacity, and the quality of the base plate. The appropriate base plate will provide a secure and reliable connection. This ensures that your towing experience is safe and enjoyable. Choosing the right base plate will give you peace of mind.

Vehicle Make and Model Compatibility

The base plate must be compatible with your vehicle’s make, model, and year. This ensures that the base plate fits properly. The compatibility information is usually found in the product specifications, or on the manufacturer’s website. Selecting a base plate that is specifically designed for your vehicle will make the installation process easier. A compatible base plate ensures that it is able to withstand the forces. An incompatible base plate can compromise the safety of the towing setup, leading to potential accidents or damage.

Weight Capacity and Towing Needs

The base plate’s weight capacity must be sufficient for the weight of the vehicle being towed. The weight capacity is typically listed in the product specifications. Always choose a base plate that meets or exceeds your towing requirements. This ensures that the base plate can safely handle the weight of the vehicle being towed. Exceeding the weight capacity can lead to equipment failure, and potential accidents. When determining your towing needs, consider the weight of the vehicle, and any additional cargo. This helps to ensure that you are choosing a base plate. For example, if you are towing a vehicle that weighs 3,500 pounds, you will need a base plate that can handle at least that much weight. It is always best to have a margin of safety.

Brand and Quality Considerations

Consider the reputation and quality of the base plate manufacturer. Reputable brands often produce base plates that are well-engineered, and manufactured to meet the highest standards. This results in a product that is safe, reliable, and durable. Read reviews, and compare product specifications, to make an informed decision. Researching different brands, and models, can help you to select a base plate that is right for you. Choosing a reputable brand can offer peace of mind, knowing that you are investing in a high-quality product. A higher-quality base plate is more likely to provide a safe and reliable towing experience.
