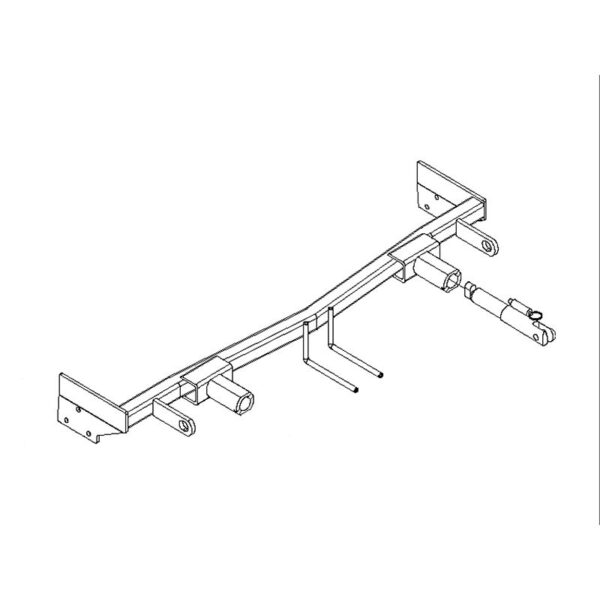

Base Plate

Choosing the Right Base Plate for Your Vehicle

Compatibility Guide

Selecting the correct base plate is paramount for ensuring safe and effective towing. Base plates are engineered to be vehicle-specific, meaning they are designed to fit a particular make and model, or a range of similar vehicles. Using a base plate that is not designed for your vehicle can compromise the integrity of your towing setup, leading to potential safety hazards and damage. Before purchasing, carefully review the manufacturer’s specifications to confirm compatibility with your vehicle. This includes checking the vehicle’s year, make, model, and any specific modifications it may have. For example, this base plate would fit the following vehicles:

• Make: Ford, Model: F-150 (2015-2020)
• Make: Chevrolet, Model: Silverado 1500 (2014-2018)
• Make: Dodge, Model: Ram 1500 (2013-2018)

Always check if any modifications are needed. Installation might require adjustments to the vehicle’s bumper or undercarriage to accommodate the base plate.

Base Plate Dimensions

Understanding the dimensions of a base plate is crucial for ensuring proper fit and installation on your vehicle. The physical size of the base plate impacts how it integrates with your vehicle’s frame and other components. These dimensions are also relevant when considering the approach angle and ground clearance after installation. The following dimensions are for a representative base plate model:

• Length: 42.5 inches
• Width: 17 inches
• Height: 4.5 inches

Always verify these dimensions against your vehicle’s specifications to confirm a seamless and secure fit.

Material and Build Quality

The construction of a base plate is vital for its performance, durability, and ability to withstand the stresses of towing. Base plates are typically constructed from high-strength materials like steel, known for its robustness and ability to handle heavy loads. The finish on the base plate is equally important for longevity. Most base plates feature a powder-coated finish, which provides a protective layer against corrosion, rust, and the elements. This finish extends the lifespan of the base plate and maintains its structural integrity over time. The quality of the welds and the thickness of the steel contribute to the base plate’s overall strength and reliability. Always consider these factors to ensure your base plate can withstand the demands of regular towing.

• Material Type: High-strength steel.
• Powder-coated Finish: Protects against corrosion and wear.

Key Features and Benefits

Easy Installation Process

A base plate designed for easy installation simplifies the setup process, saving time and effort. Many base plates are designed as bolt-on solutions, which means they attach directly to the vehicle’s frame using pre-existing holes. This eliminates the need for welding or extensive modifications, making the installation accessible for DIY enthusiasts. Clear, step-by-step instructions and diagrams are often included to guide the user through the process. Some base plates feature unique installation features, such as quick-disconnect mechanisms, which allow for easy attachment and removal of the tow bar. Following the manufacturer’s instructions carefully is key to a secure and proper installation.

• Step-by-step Installation: Clear instructions or a link to installation videos.
• Unique Installation Features: Quick-disconnect mechanisms for easy setup.

Safety and Durability

The safety and durability of a base plate are critical for a reliable towing setup. The materials used in construction, such as high-strength steel, contribute to the plate’s ability to withstand the stresses of towing. The design of the base plate should incorporate features that enhance its structural integrity, such as reinforced mounting points and robust welds. The base plate should be designed to distribute the towing load evenly across the vehicle’s frame. Always ensure that the base plate has the appropriate load capacity for your towing needs, and that it meets any relevant safety certifications or ratings. Regular inspections of the base plate and related components are crucial to ensure continued safe operation.

• Build Materials: High-strength steel and robust welds.
• Load Capacity: Meets or exceeds the vehicle’s towing capacity.

How to Install a Base Plate

Pre-Installation Preparation

Before starting the installation, proper preparation is essential for a smooth and safe process. Begin by gathering all the necessary tools, including wrenches, sockets, a torque wrench, and possibly a drill, depending on the base plate design. Read the manufacturer’s instructions thoroughly to understand the installation process and any specific requirements. Park the vehicle on a level surface and engage the parking brake. Disconnect the negative battery cable to prevent any electrical shorts. Prepare the vehicle by removing any necessary components, such as the front bumper or undercarriage panels, to access the frame. Having all the tools and parts readily available will streamline the process.

• Tools Needed: Wrenches, sockets, torque wrench, drill.
• Pre-Installation Checklist: Read instructions, park on a level surface, disconnect battery.

Step-by-Step Installation Guide

Following these steps will guide you through the installation of the base plate. Remember to consult the manufacturer’s specific instructions, as the process can vary slightly. Always adhere to the torque specifications provided. Safety glasses and gloves are recommended throughout the installation. If at any point you are uncertain, consult a professional.

1. Position the base plate components: Carefully align the base plate components with the vehicle’s frame. Ensure the mounting points align correctly with the pre-drilled holes or attachment points on the frame.
2. Secure the base plate: Use the provided hardware (bolts, nuts, washers) to attach the base plate to the frame. Hand-tighten the hardware initially, then use the torque wrench to tighten the bolts to the manufacturer’s specified torque settings. Work in a cross-pattern to ensure even distribution of pressure.
3. Reassemble vehicle components: Reattach any components removed during the preparation phase, such as the front bumper or undercarriage panels. Double-check that all parts are securely fastened and aligned properly.

Post-Installation Checks

After completing the installation, perform thorough post-installation checks to ensure everything is secure and functioning correctly. Inspect all bolts and hardware to confirm they are tightened to the correct torque specifications. Verify that the base plate is securely attached to the vehicle frame and does not move or flex excessively. Inspect the surrounding components, such as the bumper and undercarriage panels, to ensure they are correctly reassembled and do not interfere with the base plate. Check for any signs of damage or wear, and address any issues immediately. Perform a test connection with the tow bar to confirm that the attachment points align correctly and that the connection is secure. Regularly inspect the base plate and hardware for any signs of wear or damage to ensure continued safety and reliability.

• Safety Checks: Verify all bolts are properly torqued.
• Maintenance Instructions: Regular inspections for wear and tear.

Troubleshooting Common Issues

Alignment Problems

Alignment problems can arise during base plate installation, often affecting the proper attachment of the tow bar. If the base plate does not align with the tow bar, check the vehicle’s frame for any damage or deformation that could be causing misalignment. Ensure that the base plate is correctly positioned and that all mounting hardware is properly installed. If the misalignment persists, the base plate may not be compatible with the vehicle, or the installation process may have been performed incorrectly. Ensure that the tow bar attachment points are correctly aligned and not obstructed by any vehicle components. Always consult the manufacturer’s instructions or seek professional help if alignment issues persist.

• Problem #1: Incorrect alignment of the base plate to the vehicle frame.
• Problem #2: Misalignment of the tow bar attachment points.

Hardware Issues

Hardware issues can range from missing parts to problems with bolt threads or corrosion. If parts are missing, contact the manufacturer or retailer immediately to obtain the correct replacements. When installing bolts, be careful not to overtighten, as this can strip threads or damage the hardware. If corrosion is present, clean the affected areas thoroughly before reassembly. Using the correct type of hardware is essential for ensuring a secure and durable installation. Regularly inspect the hardware for any signs of wear or damage, and replace parts as necessary. If you encounter persistent hardware issues, consider seeking assistance from a qualified mechanic.

• Problem #1: Missing or incorrect hardware.
• Problem #2: Corrosion or damaged hardware.
