1443-330 – Oracle ColorSHIFT DRL

Installation Guide for the 1443-330 Kit

Follow these step-by-step instructions to install the Oracle ColorSHIFT 1443-330 DRL upgrade kit. Before beginning, ensure you have the necessary tools, including a screwdriver, pliers, and any tools specified in the kit.

Step-by-Step Instructions

1. Step 1: Preparation: Disconnect the vehicle’s battery and gather all necessary tools and components.
2. Step 2: Removal of existing DRLs: Carefully remove the existing DRLs from your vehicle, following the manufacturer’s instructions or a repair manual.
3. Step 3: Installation of Oracle ColorSHIFT Boards: Mount the Oracle ColorSHIFT LED boards in place of the original DRLs.

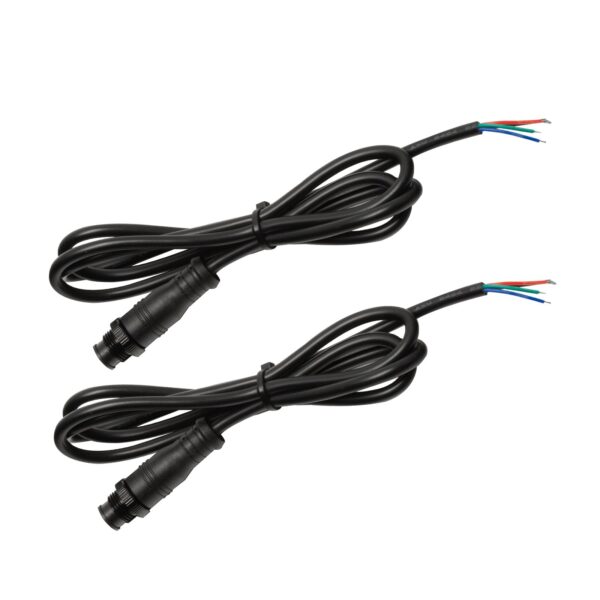

4. Step 4: Wiring and Connections: Connect the wiring harnesses to the LED boards and the controller, following the wiring diagrams provided in the kit.

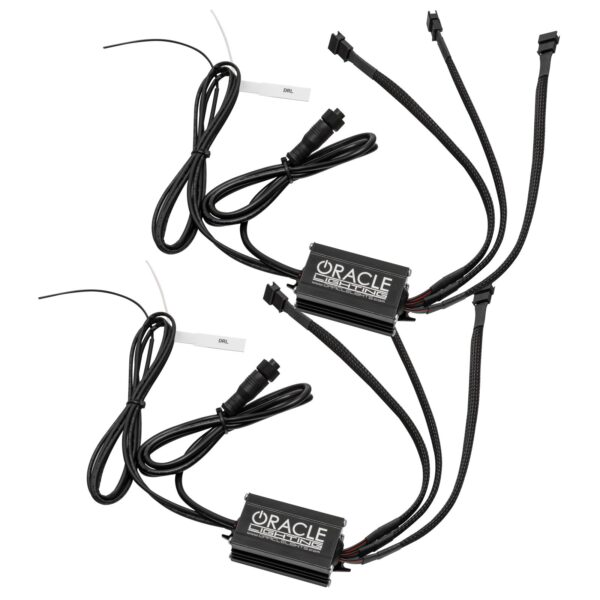

5. Step 5: Controller Setup: Mount the controller in a convenient location and connect it to the wiring harness.
6. Step 6: Testing and Finalization: Reconnect the vehicle’s battery and test the new DRLs, ensuring all functions are working correctly. Secure any loose wires and components.

Installation Tips and Tricks

For a smoother installation process, keep these tips in mind:

• Wiring Tips: Ensure all wiring connections are secure and properly insulated to prevent shorts.
• Common Mistakes to Avoid: Double-check all connections before finalizing the installation to avoid troubleshooting later.
