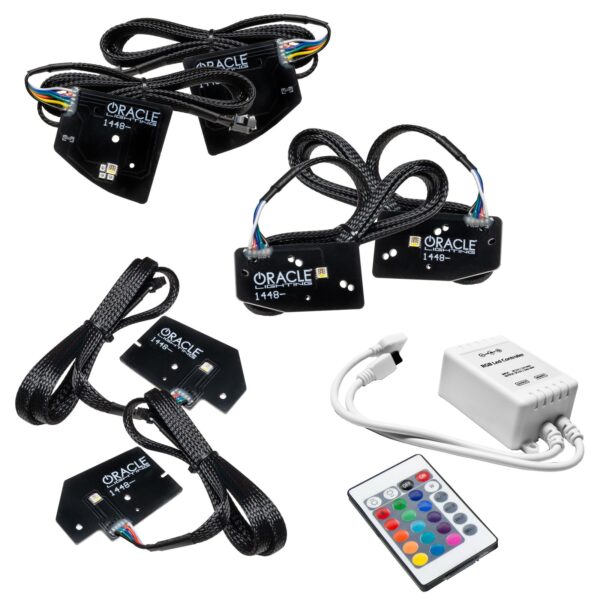

1448-504 – Daytime Running Light Circuit Board

Key Features of the Oracle Lighting 1448-504 DRL Circuit Board

ColorSHIFT Technology Overview

The Oracle Lighting 1448-504 ColorSHIFT DRL Circuit Board offers advanced color customization, allowing users to personalize their vehicle’s daytime running lights with a wide spectrum of colors and dynamic patterns. Controlled via a dedicated remote or smartphone app, this technology provides an intuitive interface for selecting and adjusting colors to match any mood or preference. The system utilizes RGBW (Red, Green, Blue, White) LED technology, which provides a broader range of colors and improved white light output compared to traditional RGB LEDs. This allows for enhanced visibility and a more vibrant appearance.

• RGBW LED Technology: The RGBW configuration of the LEDs ensures a superior range of colors and improved white light output. The addition of white LEDs offers brighter and cleaner white light compared to standard RGB LEDs, enhancing overall visibility and aesthetic appeal.
• Color Customization: Users can easily select from a vast array of colors and dynamic patterns using a user-friendly controller or smartphone app, providing full control over the DRL appearance.

Brightness Control

The Oracle Lighting 1448-504 ColorSHIFT DRL Circuit Board includes sophisticated brightness control features, allowing users to adjust the intensity of the DRLs to suit various conditions. The system allows for dimming capabilities, offering a range of brightness levels to avoid glare and adapt to different environments. This functionality ensures optimal visibility without being overwhelming, enhancing both safety and convenience.

• Brightness Levels: The DRLs offer multiple brightness settings, allowing for adjustments from a subtle glow to maximum illumination.

Compatibility and Fitment

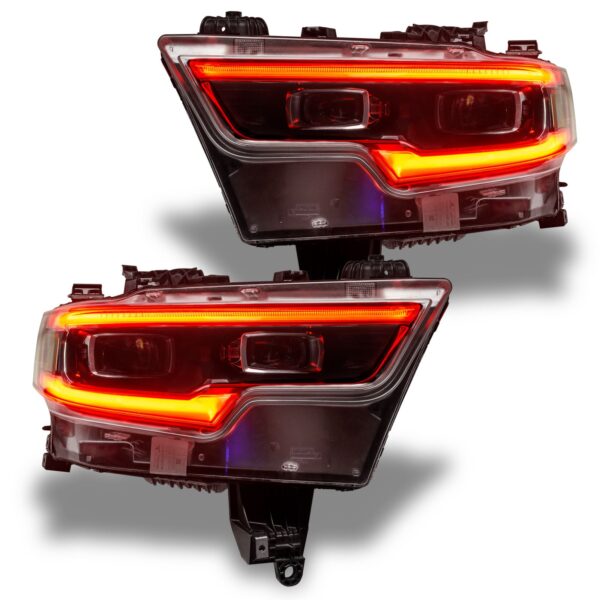

Designed for specific vehicle models, the Oracle Lighting 1448-504 DRL Circuit Board is engineered for a precise fit, simplifying installation and ensuring optimal performance. It is compatible with factory LED DRL options on select RAM 1500 models, providing a seamless integration with the existing vehicle systems. Refer to the product specifications to confirm compatibility with your vehicle’s make and model.

• Specific Vehicle Models: This DRL circuit board is designed for use with the RAM 1500 (specific model years). Confirm compatibility before purchasing.
• Headlight Compatibility: This DRL is designed to be compatible with factory LED DRL and should work with most headlight types.

Installation Guide

Tools Needed

The installation of the Oracle Lighting 1448-504 DRL Circuit Board requires a few basic tools. It is recommended that you have these tools on hand prior to beginning the installation process.

• Tools: Phillips head screwdriver, flathead screwdriver, pliers, and trim removal tools (optional).

Step-by-Step Installation Process

Follow these detailed steps to install the Oracle Lighting 1448-504 DRL Circuit Board. If you have any questions, refer to the included instructions. Video tutorials are available on the Oracle Lighting website.

1. Step 1: Remove the Headlight Assembly: Carefully detach the headlight assembly from the vehicle. Refer to your vehicle’s service manual for specific instructions.
2. Step 2: Open the Headlight Housing: Carefully open the headlight housing. This may involve removing clips, screws, or using heat to soften the adhesive.
3. Step 3: Install the DRL Circuit Board: Place the new DRL circuit board inside the headlight housing, aligning it with the existing components.
4. Step 4: Wire Connections: Connect the wiring harness of the new DRL circuit board. Secure all connections with electrical tape to ensure they are safe.
5. Step 5: Close the Headlight Housing: Reassemble the headlight housing, ensuring all parts are properly aligned and secured.
6. Step 6: Testing the DRL: Reinstall the headlight assembly in the vehicle. Test the DRLs to ensure they function correctly, including all color and brightness settings.

Benefits of Upgrading Your DRL

Enhanced Visibility and Safety

Upgrading to the Oracle Lighting 1448-504 ColorSHIFT DRL Circuit Board significantly improves vehicle visibility, thereby increasing safety on the road. The brighter and more dynamic lighting patterns capture attention, making the vehicle more noticeable to other drivers, particularly in adverse weather conditions or low-light environments.

• Increased Road Awareness: The enhanced visibility provided by the DRLs makes the vehicle more noticeable to other drivers.

Aesthetic Enhancement

The ColorSHIFT feature of the Oracle Lighting DRL circuit board offers a significant aesthetic upgrade, allowing for a high degree of customization. The ability to change colors and patterns adds a unique touch, enhancing the vehicle’s overall appearance and allowing for personalization. Choose from a wide array of colors and dynamic patterns to match your style.

• Customization Options: Users can choose from a vast array of colors and dynamic patterns, offering a high degree of personalization.

Technical Specifications

Circuit Board Details

The Oracle Lighting 1448-504 ColorSHIFT DRL Circuit Board is built with high-quality materials for durability and performance.

• Dimensions: The circuit board has dimensions designed to fit perfectly within compatible headlight assemblies.
• LED type: RGBW

Power Requirements

The DRL circuit board operates on a standard 12V DC power supply, common in automotive applications. The system is designed to consume minimal power while providing high-intensity illumination. Detailed power consumption specifications can be found in the product documentation.

Troubleshooting

Common Problems and Solutions

If you encounter any issues with the Oracle Lighting 1448-504 ColorSHIFT DRL Circuit Board, consult these troubleshooting tips:

• Problem 1: DRLs not lighting up: Check all wiring connections to ensure they are secure and properly connected.
• Problem 2: Color issues: Verify the connections between the circuit board and the control module.
