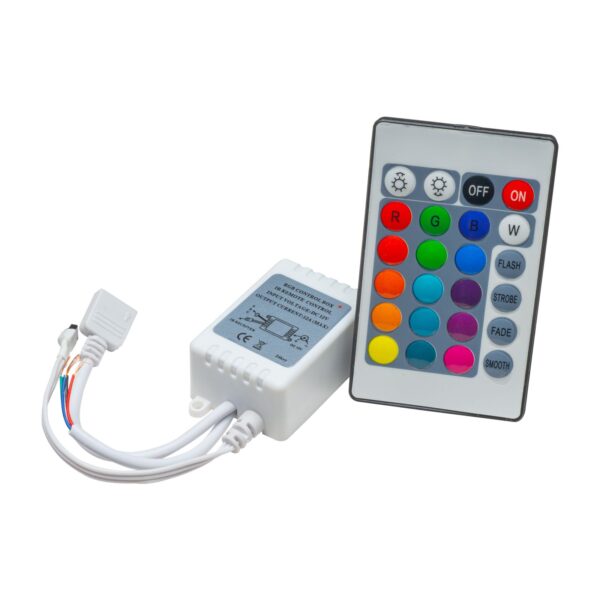

1612-504 – ORACLE 5-24V Simple LED Controller w/ Remote

Oracle 1612-504: Features and Benefits

The Oracle 1612-504 LED controller is designed to give users simple and effective control over their LED lighting setups. This controller allows for easy color selection and dynamic lighting effects, making it ideal for both home and automotive applications. Whether you are looking to enhance your vehicle’s aesthetics or add ambiance to a living space, the 1612-504 provides a user-friendly solution for managing LED strip lights. With the included remote control, adjusting colors, modes, and brightness levels is effortless, offering unparalleled convenience.

Simple Control and Versatility

The Oracle 1612-504 stands out with its simplicity and ease of use. It features an intuitive interface that allows users to quickly choose from a palette of 24 different colors and 9 distinct lighting modes. This versatility ensures that you can create the perfect atmosphere for any occasion, from a vibrant party to a relaxing evening. The adjustable brightness settings further enhance the controller’s adaptability, allowing you to customize the lighting to your precise preferences.

• Effortless color selection
• Dynamic lighting effects
• Adjustable brightness

Key Technical Specifications

Understanding the technical specifications of the Oracle 1612-504 is crucial for ensuring compatibility and optimal performance. This controller is designed to operate within a voltage range of 5-24V, making it compatible with a wide variety of LED strip lights. Its design also ensures that the controller can handle different LED strip types. The included remote control offers a convenient way to manage all functions from a distance, providing flexibility and ease of use in any setting.

• Voltage: 5-24V
• Compatibility: Supports various LED strip types.
• Remote Control: Included remote for easy control

How to Install and Use the Oracle 1612-504 Controller

Proper installation and setup are key to unlocking the full potential of the Oracle 1612-504 LED controller. This section provides a comprehensive guide to help you get started quickly and efficiently, from wiring to remote control operation. Following these steps ensures a seamless and enjoyable user experience.

Wiring Guide

Before starting the installation, ensure that you have all the necessary components: the Oracle 1612-504 controller, LED strip lights, a power supply compatible with the voltage of your LED strips, and the included remote control. Always disconnect the power before making any electrical connections. Carefully follow these steps to ensure a secure and functional setup:

1. Step 1: Connect power wires. Connect the positive (+) and negative (-) wires from your power supply to the corresponding terminals on the controller. Ensure these connections are secure to prevent any electrical issues.
2. Step 2: Attach LED strip wires. Connect the positive (+) and negative (-) wires from your LED strips to the corresponding terminals on the controller. Make certain the connections are properly aligned.
3. Step 3: Secure all connections. Double-check all wire connections to ensure they are firmly in place. Use wire connectors or electrical tape if necessary to secure the connections and prevent any shorts.

Using the Remote

The remote control is designed for ease of use, providing a simple interface for managing your LED lighting. The remote offers multiple functions to control different colors, modes, brightness, and power. Familiarize yourself with the layout of the buttons to make the most of your lighting setup.

• Color Selection: Use the color selection buttons to choose from a wide range of colors, allowing you to customize the lighting to your preference.
• Mode Switching: The mode selection buttons enable you to switch between various lighting effects, such as fading, strobing, and color-changing patterns.
• Brightness Adjustment: Easily adjust the intensity of the LED lights using the brightness control buttons.
• Power Control: Use the power button to turn the LED lights on and off.

Applications and Use Cases

The Oracle 1612-504 LED controller’s versatility makes it suitable for various applications, from automotive enhancements to home decor. Its simple operation and wide range of features allow users to create custom lighting schemes that enhance their environment.

Automotive Lighting

The 1612-504 is an excellent choice for automotive lighting modifications. It allows for the implementation of custom color schemes and effects, enhancing the vehicle’s aesthetic appeal. Whether you’re looking to add a subtle underglow or create an elaborate interior lighting setup, the controller provides a user-friendly solution.

• Underglow
• Headlights
• Interior

Home and General Lighting

In home settings, the 1612-504 can transform any space by allowing for customizable lighting. Its ability to offer a wide range of colors and modes makes it suitable for accent lighting, mood lighting, or creating special effects. It is easy to install and use, making it an ideal solution for enhancing the aesthetic appeal of your home.

• Accent lighting
• Backlighting
