1614-504 – ORACLE In-Line LED RGB Controller

Key Features of the ORACLE 1614-504 In-Line LED Controller

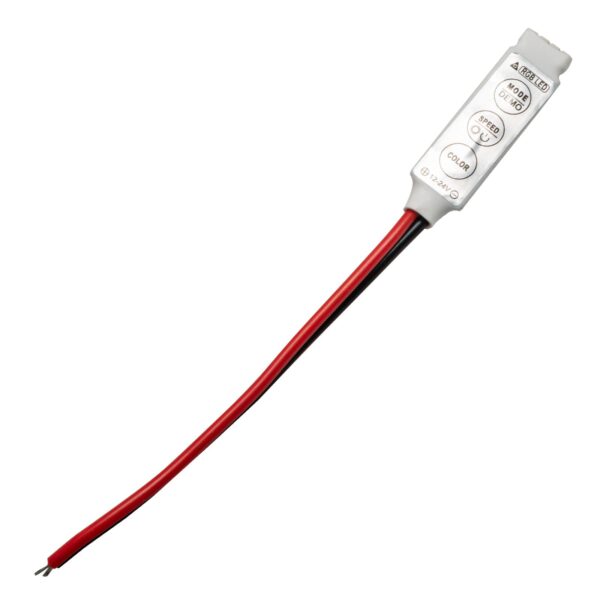

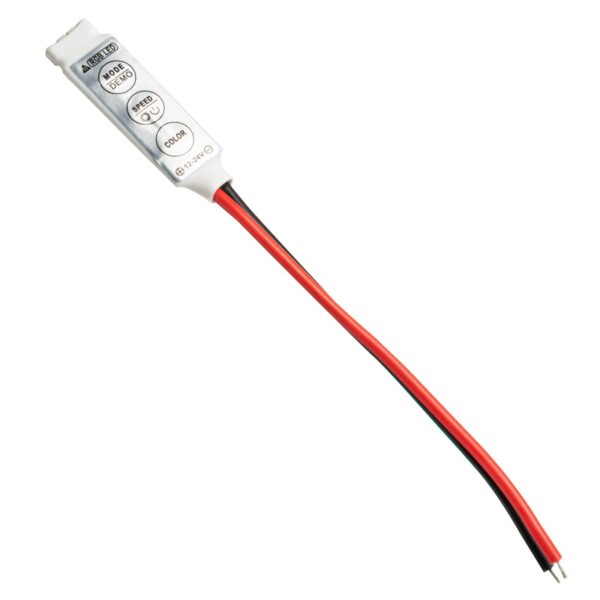

The ORACLE 1614-504 In-Line LED RGB Controller provides versatile and customizable lighting solutions for a wide array of RGB LED products. Designed for ease of use and installation, this controller allows users to effortlessly enhance their lighting setups. It is ideal for anyone looking to add dynamic and vibrant color effects to their lighting displays.

Versatile Lighting Modes

The 1614-504 offers a variety of lighting modes to suit different moods and applications:

• Breathing Mode: Gently cycles through a spectrum of colors.
• Heartbeat Mode: Mimics a pulsing effect.
• Primary and Secondary Strobe Modes: Offers flashing effects with adjustable speeds.
• Dimming Mode: Allows for brightness control.

Ease of Installation

The in-line design allows for quick and easy integration into existing LED setups, minimizing installation time. The controller can be easily connected without the need for complex wiring, making it suitable for both beginners and experienced users.

Compatibility and Control

The ORACLE 1614-504 is designed to work seamlessly with a range of RGB LED products, providing versatile control options:

• Flex Strips: Compatible with various types of LED flex strips.
• Other RGB LED products: Works with a wide variety of RGB LED lighting solutions.

Technical Specifications

Dimensions

The compact design of the 1614-504 ensures it can be easily integrated into various setups. Specific dimensions are as follows:

Length: 2.5 inches
Width: 1.5 inches
Height: 0.5 inches

Power Input/Output

The controller operates on a standard 12V DC input, making it compatible with most LED power supplies. The current output is rated at 6A, supporting a significant number of LEDs. Proper power supply selection is essential to ensure optimal performance and avoid damage. Always refer to the LED product’s specifications to ensure compatibility.

Operating Modes

The controller offers several operating modes with adjustable settings:

Speed Control: Allows users to adjust the speed of strobe and breathing effects. Color Selection: Enables the selection of static colors and color-changing modes for a dynamic lighting experience.

How to Install and Use the ORACLE 1614-504 Controller

Installation Steps

The ORACLE 1614-504 is designed for straightforward installation. Follow these steps to set up the controller:

1. Connect the input wires of the controller to a 12V DC power supply, ensuring correct polarity.
2. Connect the output wires of the controller to the RGB LED strip, matching the corresponding color channels (Red, Green, Blue).
3. Secure all connections to prevent any disconnections.

It is always recommended to consult the product manual for detailed installation instructions and safety guidelines.

Operating Instructions

The controller features intuitive controls for easy operation:

Mode Selection: Use the controller’s buttons or remote (if applicable) to cycle through different lighting modes, such as breathing, strobe, and dimming. Color Adjustment: Adjust the color output and brightness as desired. Always follow the manufacturer’s instructions for specific button functions and settings.

Benefits of the ORACLE 1614-504 In-Line LED Controller

Enhanced Lighting Customization

The controller allows for extensive customization of lighting effects, enabling users to create personalized lighting schemes. With various modes and adjustable settings, users can tailor their lighting to match any mood or occasion. The ability to select from a wide array of colors and effects significantly enhances the visual appeal of the lighting setup.

Easy Integration

The in-line design and simple wiring make it incredibly easy to integrate the controller into an existing LED setup. This plug-and-play nature ensures that users can quickly and effortlessly upgrade their lighting without the need for extensive technical knowledge. This ease of integration makes it ideal for both professional installers and DIY enthusiasts.
