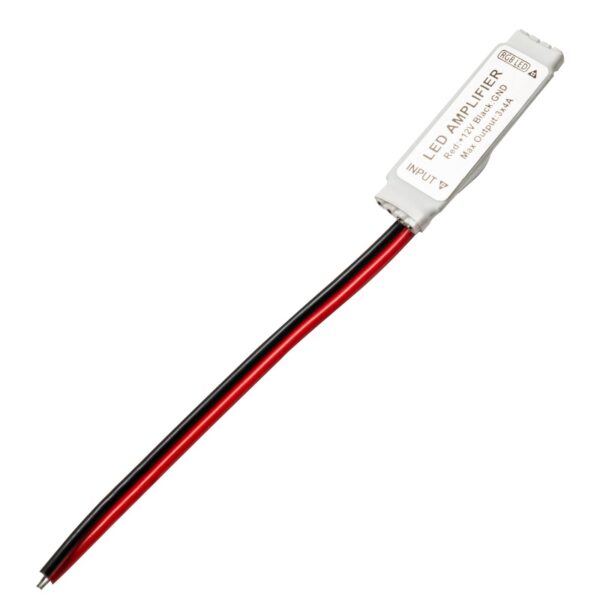

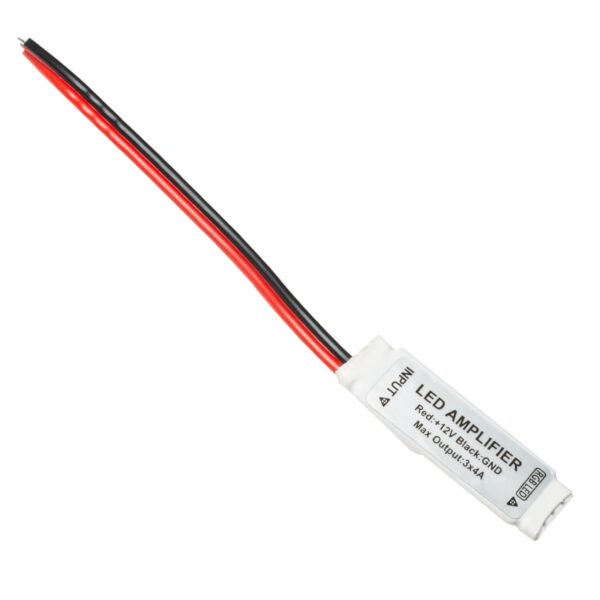

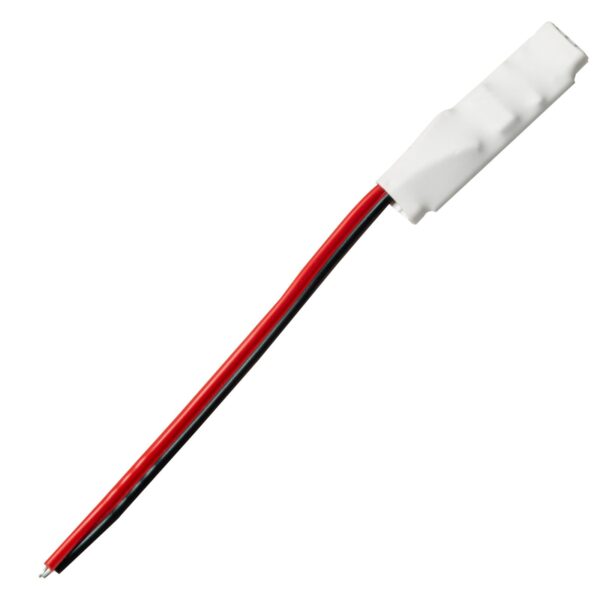

1615-504 – ORACLE In-Line LED Amplifier

Key Features and Benefits of the ORACLE 1615-504 LED Amplifier

The ORACLE 1615-504 In-Line LED Amplifier is designed to boost the signal and increase the load capacity of RGB LED controllers. This is particularly beneficial for users with multiple LED strips or those needing to extend the signal range. This amplifier ensures that your LED setups function reliably and with consistent color accuracy.

Increased Load Capacity

The ORACLE 1615-504 allows users to connect more LED lights than a standard controller can handle. This capability is crucial for larger installations where a single controller’s output is insufficient.

• The amplifier supports a maximum load of 6 Amps per channel.
• This increased capacity is essential for powering extensive LED setups without overloading the controller.

Extended Signal Range

The amplifier extends the distance the LED signals can travel without degradation, ensuring that the colors and effects are consistent across the entire setup. This is particularly important for larger vehicles or installations where the controller is located far from the LED strips.

• The amplifier can extend the signal range up to 30 feet.
• This feature is ideal for maintaining signal integrity in larger applications.

Compatibility and Ease of Use

The ORACLE 1615-504 is designed for easy integration with common RGB controllers and straightforward installation.

• It is compatible with standard 4-pin RGB controllers.
• The plug-and-play design, including pigtail connectors, simplifies the setup process.

How to Use the ORACLE 1615-504 In-Line LED Amplifier

Implementing the ORACLE 1615-504 is simple and requires a few straightforward steps to ensure proper functionality.

Wiring and Connections

Follow these steps to connect the amplifier to your RGB controller and LED strips:

1. Connect the amplifier to the RGB controller using the provided pigtail connectors. Match the corresponding wires (Red, Green, Blue, and 12V or Ground).
2. Connect the LED strips to the output side of the amplifier. Ensure that the positive and negative terminals align correctly.
3. Verify all connections to ensure they are secure.

(Diagrams or visual aids are typically included with the product to assist with wiring.)

Troubleshooting

If you encounter issues, here are some common problems and solutions:

• If the LEDs do not light up, check all wiring connections and power supply.
• If the colors are incorrect, verify that the connections between the controller, amplifier, and LED strips match the correct color codes.
• Ensure that the power supply meets the voltage requirements of the LED strips and the amplifier (typically 12V DC).

Technical Specifications and Dimensions

Product Dimensions

The ORACLE 1615-504 is compact and easy to integrate into various setups.

• Length: 1.6 inches
• Width: 1 inch
• Height: 1 inch

Electrical Specifications

Understanding these specifications is crucial for proper setup and operation.

• Input voltage: 12V DC
• Maximum load per channel: 6 Amps
• Output voltage: Matches the input voltage (12V DC)
