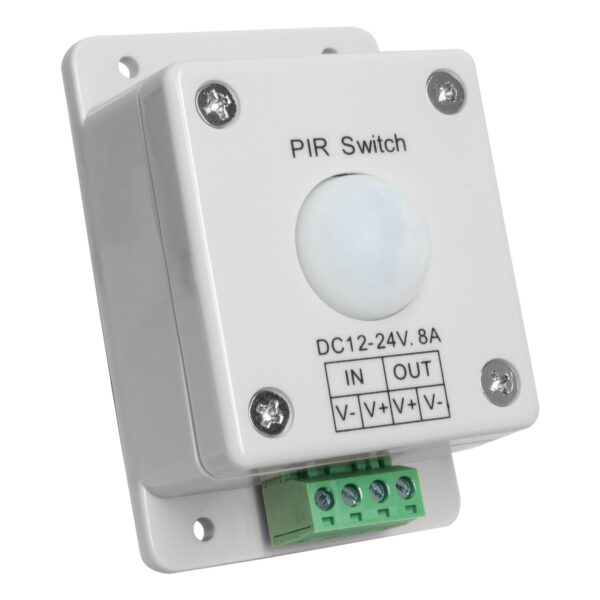

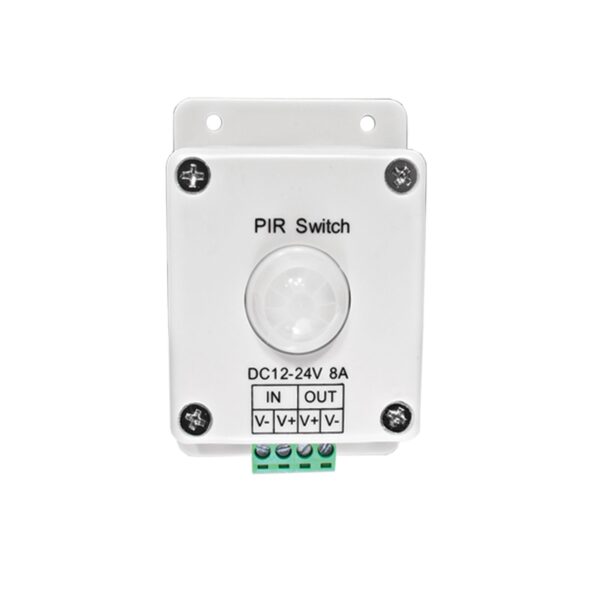

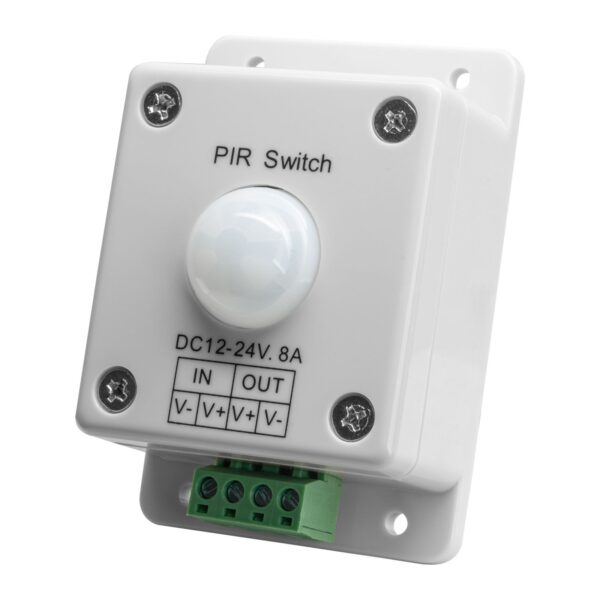

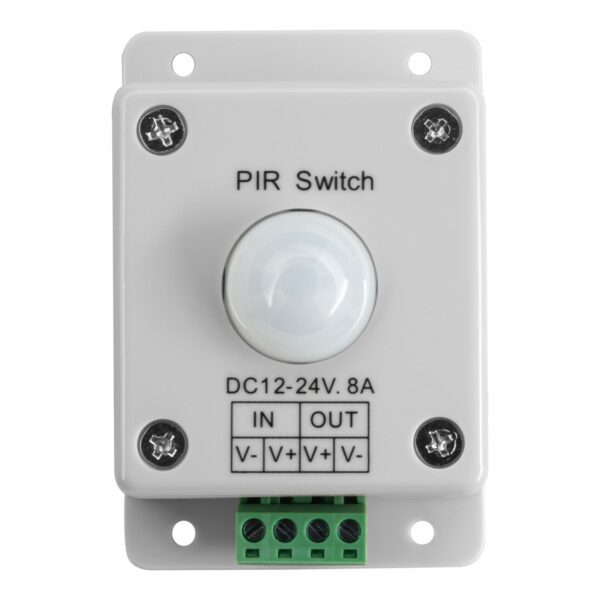

1618-504 – ORACLE 8A PIR Sensor Switch

Key Features of the ORACLE 8A PIR Sensor Switch (1618-504)

The ORACLE 8A PIR Sensor Switch (1618-504) is a passive infrared (PIR) sensor switch designed to automatically control lighting and other electrical devices based on motion detection. This device is commonly used in various applications where automated control and energy efficiency are desired, such as in hallways, stairwells, and outdoor security lighting. The switch uses a PIR sensor to detect changes in infrared radiation, typically emitted by human bodies, and activates the connected load when motion is detected. This functionality makes it a valuable component in both residential and commercial settings.

Motion Detection Technology

The core technology of the ORACLE 8A PIR Sensor Switch (1618-504) revolves around its PIR sensor. This sensor detects infrared (IR) radiation, a type of heat energy emitted by objects with a temperature above absolute zero. When the sensor detects a change in the IR radiation, such as when a person moves into its detection zone, it triggers the switch to activate. The advantages of using PIR technology include low power consumption and reliable performance in various lighting setups. The switch is designed to be unobtrusive and operates silently. The detection range and angle are key performance indicators; the ORACLE 8A PIR Sensor Switch (1618-504) offers a detection range of up to 8 meters and a detection angle of 100 degrees. This ensures comprehensive coverage in the monitored area, making it suitable for diverse installation requirements.

• Advantages of PIR Technology: Low power consumption, reliable motion detection, and cost-effectiveness.
• Detection Range and Angle: Up to 8 meters detection range and 100-degree detection angle.

Technical Specifications

The ORACLE 8A PIR Sensor Switch (1618-504) is engineered to meet specific performance criteria. It operates on a 12-24V DC input voltage, providing flexibility for various power supply setups. The maximum load current is 8 Amps, enabling the switch to handle moderately sized electrical loads, such as LED lighting arrays. It features a single output channel for streamlined connectivity. The output power is rated at 100 Watts, which supports a wide variety of lighting systems and other electrical devices. The carefully designed specifications ensure durability and efficient performance, tailored to meet common application needs.

• Input Voltage: 12-24V DC
• Max Load Current: 8 Amps
• Output Channel: 1 Channel
• Output Power: 100 Watts

How to Install and Use the ORACLE 8A PIR Sensor Switch (1618-504)

Proper installation and configuration are essential for the optimal performance of the ORACLE 8A PIR Sensor Switch (1618-504). The following steps provide a structured approach to installing and connecting the device. It is crucial to follow all safety guidelines and consult a qualified electrician if unsure about any part of the installation process. Careful attention to these guidelines will ensure the longevity and reliability of the switch.

Installation Guide

The installation of the ORACLE 8A PIR Sensor Switch (1618-504) requires careful preparation and adherence to safety standards. The steps include preparing the wiring, connecting the power source, connecting the load, and testing the functionality of the setup. Proper execution of each step will guarantee reliable operation. Always ensure the power is disconnected during the installation. Visual guides and diagrams should be used where necessary to provide clarity during the process.

1. Step 1: Preparing the Wiring: Ensure the power supply is disconnected. Identify and prepare the necessary wires. Strip the insulation to the correct length for the wire connectors.
2. Step 2: Connecting the Power Source: Connect the positive (+) and negative (-) wires from the power supply to the corresponding input terminals on the sensor switch, carefully observing the correct polarity.
3. Step 3: Connecting the Load (e.g., LED Lights): Connect the wires from the load (e.g., LED lights) to the output terminals of the sensor switch. Ensure the load does not exceed the maximum load current of the switch.
4. Step 4: Testing and Calibration: Reconnect the power supply and test the sensor switch by simulating motion in the detection zone. Adjust the sensitivity and time delay settings as needed for optimal performance.

Adjusting Settings

The ORACLE 8A PIR Sensor Switch (1618-504) may include adjustable settings that allow for customization based on the installation environment. Common settings to adjust include the sensitivity and time delay. Sensitivity determines how easily the sensor detects motion, which can be set higher for more sensitive detection or lower to reduce false triggers. The time delay specifies the amount of time the load stays activated after motion is detected. Review the product documentation for specific guidance on the switch adjustments.

Applications and Use Cases

The ORACLE 8A PIR Sensor Switch (1618-504) is ideally suited for a range of applications where automated control and energy efficiency are required. It is particularly effective in settings where motion detection enhances safety and convenience. The sensor switch can be easily integrated into existing systems and is designed to provide dependable performance in varied scenarios.

Common Applications

The ORACLE 8A PIR Sensor Switch (1618-504) is suitable for a broad range of applications. This includes automotive lighting, such as controlling interior lights in vehicles or for under-car lighting, and security lighting. In security systems, it can be used to trigger lights in response to motion, deterring intruders and enhancing safety. It is also used in indoor and outdoor lighting scenarios, such as in hallways, gardens, and entryways, providing convenience and reducing energy consumption. The versatility of the switch makes it a valuable component in many modern electrical setups.

• Automotive Lighting: Interior lights, under-car lighting, and other vehicle lighting systems.
• Security Lighting: Motion-activated lights for enhanced security and deterrence.
• Indoor/Outdoor Lighting: Hallways, gardens, entryways, and other areas where automated lighting is beneficial.

Benefits of Using the Sensor Switch

Implementing the ORACLE 8A PIR Sensor Switch (1618-504) offers several significant advantages, including energy savings, increased convenience, and enhanced safety. By automatically activating lights only when motion is detected, the switch minimizes unnecessary energy consumption, leading to reduced electricity bills. The convenience factor is also a major benefit; users do not have to manually switch lights on and off. The motion-activated feature provides increased security by illuminating areas when motion is detected, potentially deterring unwanted activity. Overall, the sensor switch represents a practical, efficient, and user-friendly solution for various lighting control needs.

• Energy Efficiency: Reduces energy consumption by activating lights only when needed.
• Convenience: Automates lighting control, eliminating the need for manual operation.
• Enhanced Safety: Provides immediate illumination when motion is detected, deterring intruders and improving visibility.
