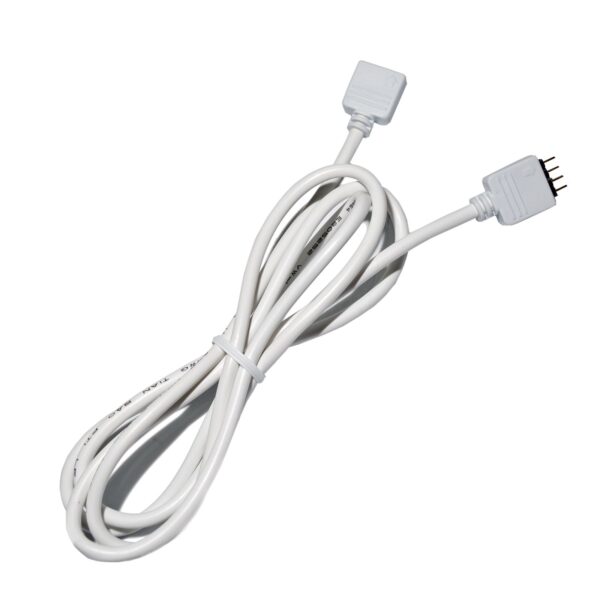

1622-504 – ORACLE 4 Pin RGB Male/Female Connector

What is the ORACLE 1622-504 Connector?

The ORACLE 1622-504 connector is a 4-pin RGB male/female connector designed for securely and reliably connecting RGB (Red, Green, Blue) LED devices. This connector simplifies the process of connecting LED strips, modules, and other RGB lighting components by providing a plug-and-play solution, eliminating the need for soldering or complex wiring.

Key Features and Benefits

Easy Plug-and-Play Installation

The primary advantage of the ORACLE 1622-504 connector is its ease of installation. The male and female design allows for quick and straightforward connections without the need for soldering tools. This simplifies the setup process for both professionals and DIY enthusiasts, reducing installation time and potential for errors.

Durable and Reliable Design

Constructed from high-quality materials, the ORACLE 1622-504 is built for durability and longevity. The robust design ensures reliable connections and performance in various environmental conditions. While specific certifications may vary by production batch, the connector is designed to meet industry standards for safety and performance, ensuring its suitability for a wide range of applications.

• Robust construction
• RoHS compliance

Technical Specifications

Pin Configuration and Compatibility

The 4-pin configuration of the connector is designed to support the standard RGB LED setup, which includes connections for Red, Green, Blue, and a common positive or negative connection. The connector is compatible with a variety of RGB LED devices and controllers that utilize a 4-pin configuration, ensuring broad usability across different lighting systems.

Physical Dimensions and Materials

The connector’s dimensions and materials are carefully selected to balance durability, flexibility, and ease of use. Specific dimensions, including length, width, and height, are optimized for secure connections in various applications. The materials are chosen for their electrical properties and resistance to wear and tear.

• Material: PVC
• Pin: 4
• Voltage: 12V

Applications and Use Cases

Common Applications

The ORACLE 1622-504 connector is versatile and suitable for a wide range of applications, including automotive lighting, architectural lighting, and various DIY projects. It allows for the easy integration of RGB LED lighting into different environments, providing flexibility in design and functionality.

• Automotive lighting
• Architectural lighting
