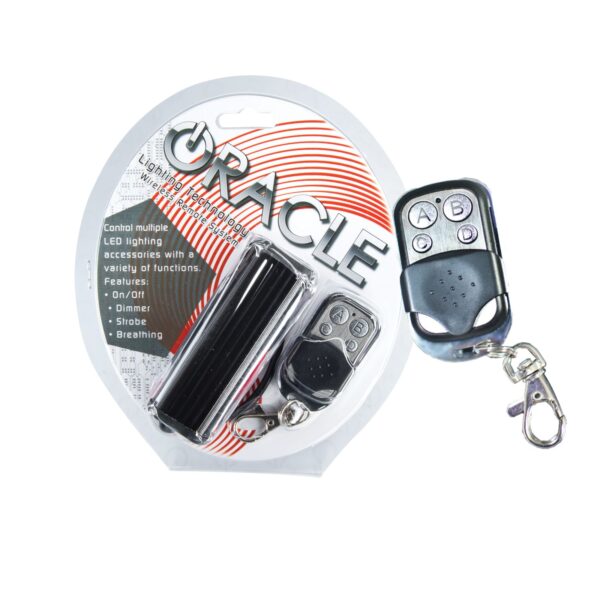

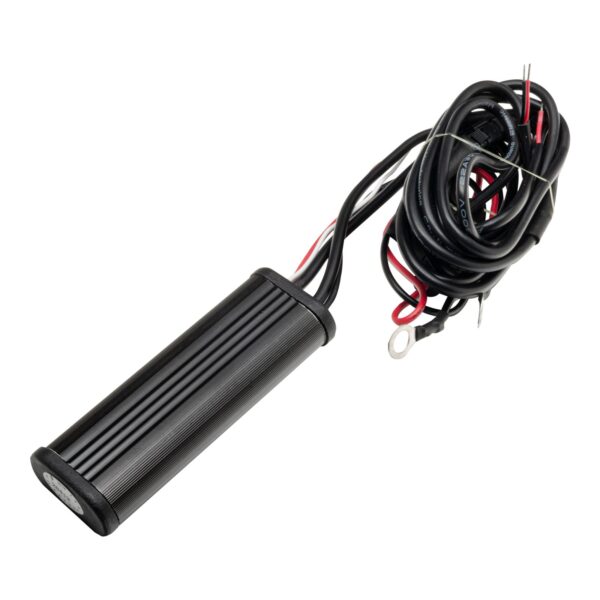

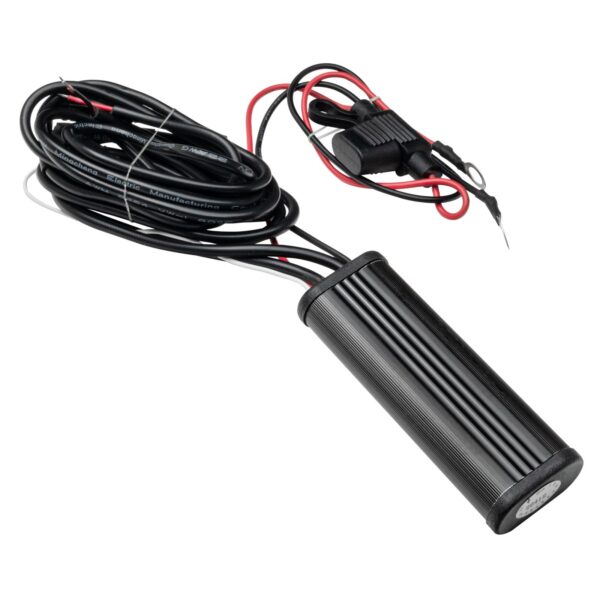

1701-504 – ORACLE Single Channel Multi-Function Remote

ORACLE 1701-504: Features and Benefits for LED Lighting Control

The ORACLE 1701-504 is a wireless remote control system designed to provide convenient and versatile control over 12V ORACLE LED products. This multi-function remote empowers users with effortless command over their LED lighting setups, offering an array of features tailored for both functionality and aesthetic appeal.

Effortless Control of Your LED Lighting

The ORACLE 1701-504’s primary function is to provide simple and intuitive control over your LED lighting. This section details the core functionality of the remote, such as powering lights on/off, dimming capabilities, and dynamic modes.

• On/Off Functionality: Easily turn your LED lights on and off with a simple button press.
• Brightness Control: Adjust the intensity of your LED lights with multiple dimming levels.
• Dynamic Mode Activation: Includes strobe, breathe, and other pre-programmed modes to create dynamic lighting effects.

Key Features and Specifications of the ORACLE 1701-504

The ORACLE 1701-504 boasts several key features that enhance its usability and performance. It is engineered to deliver reliable and consistent operation for various LED lighting applications. These specifications ensure the remote’s compatibility and optimal performance.

Technical Specifications

These specifications detail the technical aspects of the remote, including input voltage, output power, and wireless range. Understanding these specifications is crucial for proper installation and usage.

• Input Voltage: Requires 12V DC power.
• Output: 60W.
• Wireless Range: Operational range of up to 100 feet, depending on environmental conditions.

Design and Build Quality

The ORACLE 1701-504 is designed with both functionality and durability in mind. The remote’s build quality and design contribute to its longevity and user-friendliness.

• Material: Constructed with high-quality materials for durability.
• Dimensions: Compact design, with dimensions of approximately 5.1 inches in length, 3.3 inches in width, and 1.8 inches in height.
• Design Elements: Features a keypad guard to protect the buttons from accidental activation.

Compatibility and Applications

The ORACLE 1701-504 is designed to work seamlessly with a wide range of ORACLE LED products, offering users extensive options for customizing their lighting setups. Its versatility allows for applications across multiple platforms, enhancing the user experience.

Compatible ORACLE LED Products

The remote is specifically designed to control the following types of single-color LED lighting accessories, enhancing their functionality and user control.

• Halo Rings
• Accent Lighting
• Other Compatible Accessories (Specific Product numbers)

User Applications and Use Cases

The ORACLE 1701-504 remote offers numerous applications, particularly for automotive and home lighting modifications. Here are some example uses:

• Vehicle Lighting Customization: Control and customize your vehicle’s lighting with ease.
• Interior and Exterior Lighting: Use it to control various lighting in your home, office, or outdoor spaces.
• HomeLink Integration: Compatible with HomeLink systems for integrated lighting control.

Installation and Setup Guide

Installing the ORACLE 1701-504 remote is straightforward. Following these steps will ensure the remote is properly connected and ready to use with your LED lights.

Step-by-Step Installation Instructions

1. Wiring Connection Guide: Connect the remote to your LED lights according to the wiring diagram.
2. Remote Pairing Process: Pair the remote with your LED lights for wireless control.
3. Troubleshooting Tips: Basic troubleshooting tips for common issues that may arise during setup.

Care and Maintenance Tips

Proper care and maintenance of the ORACLE 1701-504 remote will help ensure its longevity and continued optimal performance. Regular maintenance can prevent common issues and prolong the remote’s lifespan.

Cleaning and Maintenance

Follow these suggestions for the care of the remote.

• Cleaning Instructions: Use a soft, dry cloth to clean the remote. Avoid using harsh chemicals or excessive moisture.
• Storage: Store the remote in a cool, dry place when not in use.
