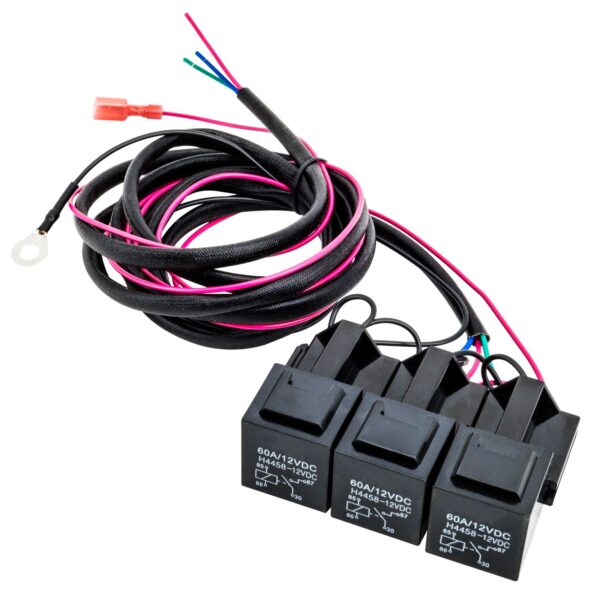

1715-504 – ORACLE Automatic DRL ColorSHIFT Harness

What is the ORACLE 1715-504 DRL ColorSHIFT Harness?

The ORACLE 1715-504 Automatic DRL ColorSHIFT Harness is an innovative wiring solution designed to seamlessly integrate with ORACLE Lighting’s ColorSHIFT halo lights, transforming them into functional, eye-catching daytime running lights (DRLs). This harness is specifically engineered to provide a sophisticated lighting upgrade while maintaining ease of use and compatibility.

Overview

The primary function of the 1715-504 harness is to enable ORACLE ColorSHIFT halo lights to operate as bright, white DRLs during the day. This enhances vehicle visibility and safety. Additionally, it offers the convenience of automatically reverting the lights to a user-selected color when the vehicle is parked or when headlights are activated, providing a customizable and dynamic lighting experience.

Key Features and Benefits of the 1715-504 Harness

Enhanced Visibility

White DRLs significantly improve a vehicle’s visibility to other drivers and pedestrians, especially during daylight hours and in inclement weather. This added visibility reduces the likelihood of accidents by making the vehicle more noticeable on the road.

• Increases vehicle conspicuity, making it easier for other drivers to see your vehicle.
• Improves safety in low-light conditions, such as dawn, dusk, and overcast days.
• Enhances the overall aesthetic appearance of the vehicle with a modern and functional lighting upgrade.

Automatic Color Change

The automatic color change feature is a key benefit, as it allows users to switch between white DRL mode and a user-selected color (or the factory default) when the headlights are turned on or when the vehicle is parked. This functionality is managed by the harness itself, which detects the activation of the headlights or the vehicle’s parked status and automatically changes the light color accordingly.

• Seamless transition between white DRL mode and custom color settings.
• User-friendly operation, requiring no manual adjustments for color changes.
• Maintains compliance with local regulations regarding headlight colors and usage.

Easy Installation

The ORACLE 1715-504 harness is designed for straightforward installation, allowing users to upgrade their vehicle’s lighting system with minimal effort. The harness comes with pre-wired connectors and clear instructions, making the installation process simple even for those with limited experience in automotive electrical systems.

• Plug-and-play design, reducing the need for cutting or splicing wires.
• Comprehensive installation guide with detailed steps.
• Compatible with a wide range of vehicles, enhancing versatility.

Installation Guide for ORACLE 1715-504

What You’ll Need

To install the ORACLE 1715-504 Automatic DRL ColorSHIFT Harness, you will need a few essential tools and components. Ensure you have all the necessary items before beginning the installation process to ensure a smooth and efficient setup.

• Wire strippers and crimpers
• Electrical tape or heat shrink tubing
• Screwdrivers (Phillips and flathead)
• Socket set
• Multimeter (optional, for testing connections)

Step-by-Step Installation

1. Preparation: Disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts. Locate the vehicle’s existing headlight wiring and the ORACLE ColorSHIFT halo light connections.
2. Harness Connections: Connect the 1715-504 harness to the ORACLE ColorSHIFT halo lights, ensuring secure and proper connections.
3. Trigger Wire Connection: Identify the factory DRL wire and connect the trigger wire from the harness to this wire, which tells the harness when to switch to white DRL mode.
4. Parking Light Connection: Connect the parking light wire to the harness to enable the automatic color change when the parking lights are activated. This connection will vary based on your vehicle.
5. Grounding: Securely ground the harness to the vehicle’s chassis.
6. Testing: Reconnect the battery terminal and test the functionality of the DRLs and color-changing features to confirm the setup is working correctly.

Technical Specifications and Compatibility

Specifications

The ORACLE 1715-504 Automatic DRL ColorSHIFT Harness is engineered to meet specific technical standards, ensuring optimal performance and compatibility. Key specifications include the following:

• Length: 3.42 in
• Width: 3.42 in
• Height: 2.08 in

Vehicle Compatibility

The ORACLE 1715-504 harness is designed for wide-ranging vehicle compatibility. This harness is a universal fit for vehicles with ORACLE ColorSHIFT halo lights, requiring some electrical knowledge for installation. It is essential to review the specific instructions for your vehicle model.

• Consult the ORACLE Lighting website for the most up-to-date compatibility information and installation guides.

Safety and Legal Information

Safety Instructions

Working with automotive electrical systems requires careful attention to safety to prevent injury and protect your vehicle. Always follow these safety precautions during the installation of the ORACLE 1715-504 harness:

• Always disconnect the negative terminal of the vehicle’s battery before starting any electrical work to prevent shorts.
• Use appropriate safety gear, including eye protection, when working with tools or wiring.
• Double-check all connections to ensure they are secure and properly insulated.
• If you are not comfortable with automotive electrical work, seek professional assistance.

Legal Information

The ORACLE 1715-504 Automatic DRL ColorSHIFT Harness is designed to be legal for on-road use when installed and used in compliance with local and federal regulations. Ensure that the white DRLs are used appropriately and that the color-changing functions comply with all relevant laws.

The product is legal for on-road use.
