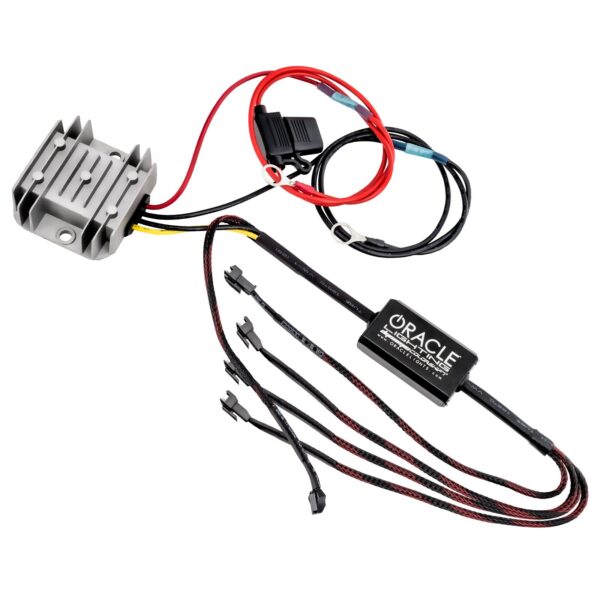

1719-504 – ORACLE High Output Data Splitter 6-Way Hub

Key Features and Benefits of the ORACLE 1719-504 Data Splitter Hub

Enhanced Compatibility and Control

The ORACLE 1719-504 Data Splitter Hub is engineered to enhance the functionality of your Oracle Lighting products, particularly in applications involving multiple lighting components. This 6-way hub allows you to control numerous devices from a single source, simplifying complex lighting setups.

• Seamlessly integrates with ORACLE Lighting Dynamic ColorSHIFT(tm) Halo Kits, expanding their control capabilities.
• Features a single input pigtail to connect to the lighting controller, streamlining the wiring process.

Simplified Wiring and Installation

Compared to traditional wiring methods, the ORACLE 1719-504 hub significantly simplifies the installation process, saving time and effort. Its design promotes a cleaner and more organized setup, reducing clutter and potential wiring errors.

• Allows for easy connection of multiple lighting components to a single control source.
• Streamlines the overall wiring process, making installations quicker and more efficient.

Durability and Reliability

The ORACLE 1719-504 Data Splitter Hub is built with high-quality materials to ensure durability and reliable performance in automotive environments. Its robust construction is designed to withstand the rigors of daily use, ensuring longevity and consistent functionality. The materials used provide resistance to environmental factors, safeguarding the internal components.

Technical Specifications and Compatibility

Detailed Specifications

The ORACLE 1719-504 Data Splitter Hub is engineered to meet the demanding requirements of automotive lighting applications. Here are the detailed specifications:

• Input Voltage: 12V DC
• Number of Outputs: 6
• Connector Type: [Specify]
• Operating Temperature: [Specify]

Compatibility Information

The ORACLE 1719-504 Data Splitter Hub is designed to work seamlessly with a variety of Oracle Lighting products, enhancing their functionality and control. The following products are confirmed to be compatible with this data splitter:

• Compatible with ORACLE Lighting ColorSHIFT Halo Kits.
• Compatible with various ORACLE Lighting accessories [Specify].

Installation Guide and Best Practices

Step-by-Step Installation

Follow these steps to install the ORACLE 1719-504 Data Splitter Hub:

1. Step 1: Preparation – Gather all necessary tools, including wire strippers, crimpers, and a multimeter, along with the data splitter hub and all the components to be connected.
2. Step 2: Wiring – Connect the data splitter hub to the power source, ensuring correct polarity. Then, connect the lighting components to the hub’s output ports. Follow the wiring diagrams provided with your specific lighting components.
3. Step 3: Testing – After all connections are made, test the functionality of the lighting components. Use the control source (e.g., a smartphone app) to verify that all lights respond correctly.

Troubleshooting Tips

• If the lights do not light up, check all wiring connections to ensure they are secure and that there are no loose wires or incorrect connections. Also, verify that the power source is providing the correct voltage.
• If the lights blink, this could indicate a power supply issue or a problem with the control signal. Check the power supply and the connections to the control module.

Applications and Use Cases

Custom Automotive Lighting Projects

The ORACLE 1719-504 Data Splitter Hub is ideal for enhancing automotive lighting projects, especially those using ColorSHIFT technology. It allows for complex lighting configurations, such as customizing headlights, tail lights, and interior lighting, enabling a wide range of color and effect options.

This is well-suited for a variety of vehicles, including trucks, SUVs, and cars, as well as any custom build seeking to add advanced lighting features.

Showcasing a car with it installed

Consider a custom-built vehicle with ORACLE ColorSHIFT Halo Kits installed in the headlights and taillights, all controlled by a single controller through the ORACLE 1719-504 Data Splitter Hub. The owner can easily change the car’s lighting theme to match their mood or the event.

Enhancing Car Shows and Events

The ORACLE 1719-504 Data Splitter Hub allows for creating impressive lighting displays at car shows and other events. By connecting multiple lighting components, car enthusiasts can create synchronized light shows that captivate audiences, adding a professional touch to their vehicle’s appearance.
