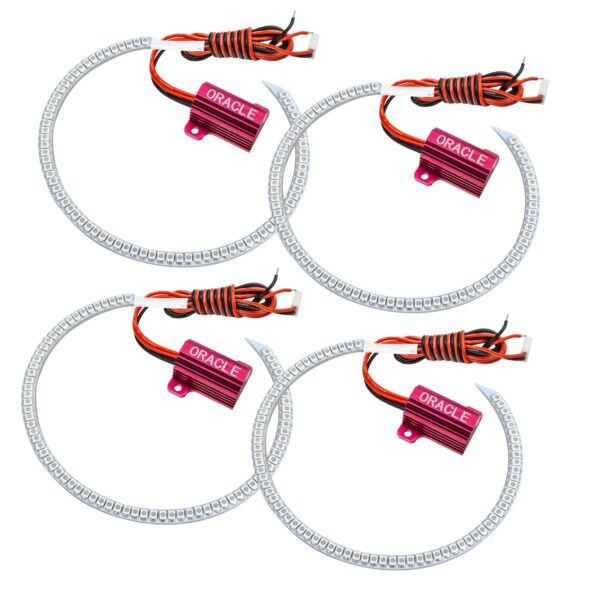

2268-001 – Dodge Challenger 2015-2018 ORACLE LED Halo Kit

Upgrade Your Dodge Challenger: ORACLE LED Halo Kit Overview

What is the ORACLE LED Halo Kit?

The ORACLE LED Halo Kit is designed to dramatically enhance the aesthetics of your Dodge Challenger. These halo rings, installed around the headlights, provide a unique and modern lighting signature. ORACLE Lighting is a well-regarded brand in the automotive lighting industry, known for its high-quality products and innovative designs.

Benefits of Installing an LED Halo Kit

• Improved Vehicle Aesthetics: Halo rings add a distinctive visual element to your Challenger, giving it a more aggressive and custom appearance.
• Enhanced Visibility: While primarily for aesthetics, the bright LED rings can subtly improve visibility, especially in low-light conditions.
• Increased Customization Options: Many kits offer a range of color options, allowing you to personalize your vehicle’s look to match your style.

Key Features and Technical Specifications

Advanced LED Technology

The ORACLE LED Halo Kit utilizes advanced LED technology, specifically Surface Mount Device (SMD) LEDs. SMD LEDs offer several advantages, including high brightness, energy efficiency, and a long lifespan. They produce a strong, consistent light output, ensuring the halo rings are visible even in daylight. The LEDs are designed to last for thousands of hours of use, providing reliable performance over the vehicle’s lifespan.

Design and Construction

The halo rings are constructed from durable materials to withstand various environmental conditions. The design incorporates features to ensure longevity and optimal performance.

• Durable Materials: The halos are typically made from high-quality materials such as polycarbonate or acrylic, chosen for their durability and resistance to impacts and UV exposure.
• Waterproof Design: The kits are designed with a waterproof construction, often featuring sealed components and robust housing to prevent moisture from damaging the LEDs. This ensures the halos remain functional and prevents condensation buildup. An IP rating, if available, would further specify the level of protection against water and dust.

Technical Specifications

• Voltage and Power Requirements: The ORACLE LED Halo Kit is designed to operate on a standard 12V DC system, making it compatible with most vehicles. Power consumption is minimal, ensuring it does not significantly impact the vehicle’s electrical system. Specific power consumption details will vary depending on the kit.
• Compatibility: This kit is specifically designed for Dodge Challenger models from 2015 to 2018. Ensure compatibility by verifying the model year before purchase and installation.
• Kit Contents: The kit includes the LED halo rings, wiring harnesses, and any necessary drivers or control modules. Mounting hardware and detailed installation instructions are also included.

Installation Guide

Preparation and Tools Needed

Before beginning the installation, gather all necessary tools and materials. Safety glasses and gloves are recommended. The following items are typically required:

• Screwdrivers (Phillips and flathead)
• Socket set
• Wire strippers and crimpers
• Electrical tape
• Heat gun (optional, for heat shrink tubing)
• A clean, well-lit workspace

Before starting, disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts. Read all instructions thoroughly before beginning.

Step-by-Step Installation Instructions

1. Step 1: Headlight Removal: Carefully remove the headlights from the vehicle. Consult the vehicle’s service manual for specific instructions on headlight removal. This usually involves removing screws or clips and unplugging the electrical connectors.
2. Step 2: Halo Ring Placement: Open the headlight housing and carefully position the halo rings around the projector or reflector. Use the provided adhesive or clips to secure the rings in place, ensuring they are evenly spaced and properly aligned.
3. Step 3: Wiring and Connections: Route the wiring harnesses from the halo rings to the power source. Connect the wires according to the instructions, usually to the vehicle’s running lights or a separate switch. Ensure all connections are secure and insulated with electrical tape or heat shrink tubing.
4. Step 4: Testing and Final Assembly: Reconnect the negative battery terminal and test the halo rings to ensure they light up correctly. Once verified, reassemble the headlights and reinstall them on the vehicle. Check all connections and ensure proper functionality before driving.

Installation Tips and Troubleshooting

• Tips for a smooth installation process: Take your time, and work in a clean, well-lit environment. Double-check all connections before final assembly. Watch video tutorials to help visualize the steps.
• Common issues and how to resolve them: If the halos do not light up, check the wiring connections and ensure the power source is functioning. If there is a short circuit, check for exposed wires and repair them. If the halos flicker, ensure all connections are secure and the voltage is stable.
