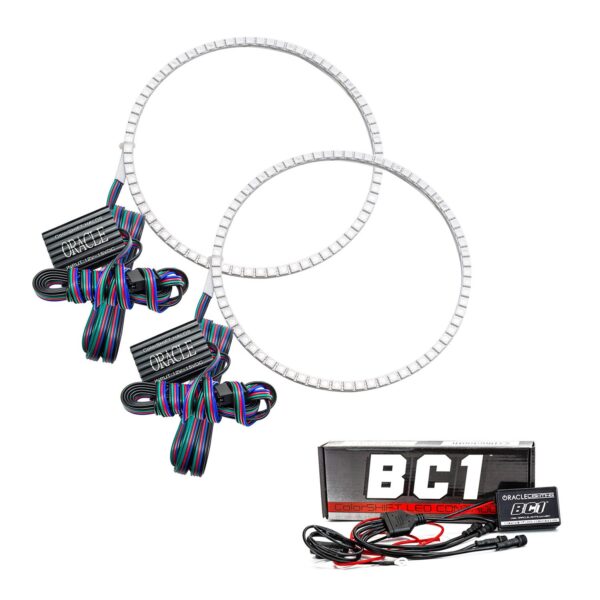

2301-335 – Headlight Halo Ring Emitter Set

2301-335 Headlight Halo Rings: Features, Benefits, and Installation

Key Features of the 2301-335 Halo Ring Emitter Set

The 2301-335 Headlight Halo Ring Emitter Set is designed to dramatically enhance the appearance and functionality of your vehicle’s headlights. This innovative system allows for a wide spectrum of color options, controlled remotely, to personalize your car’s aesthetic. The set utilizes ColorSHIFT technology, enabling users to select from a vast range of colors and dynamic lighting effects via a user-friendly remote control. Constructed with high-quality, durable materials, the halo rings are built to withstand various weather conditions, ensuring longevity and consistent performance. Their robust design incorporates waterproof features to protect against moisture, maintaining optimal functionality in diverse environments. Installation is designed to be straightforward, allowing for a relatively easy upgrade process for car enthusiasts and DIY installers alike.

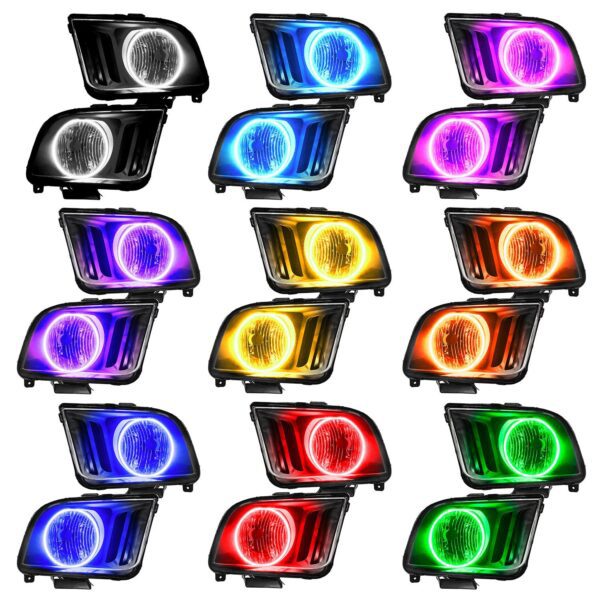

• ColorSHIFT Technology: Offers customizable color options and dynamic lighting effects.
• Superior Brightness: Provides enhanced visibility with bright, evenly distributed light.
• Durable Construction: Features waterproof design and high-quality materials for long-lasting performance.
• Easy Installation: Designed for a user-friendly installation process.

Benefits of Upgrading to 2301-335 Halo Rings

Upgrading to the 2301-335 Halo Rings not only elevates the visual appeal of your vehicle but also enhances its safety and overall driving experience. The addition of halo rings significantly transforms the look of your car, providing a modern, unique appearance that stands out on the road. Beyond aesthetics, these brighter, more visible headlights improve safety by increasing visibility at night and in adverse weather conditions, such as rain, fog, or snow. The customization options offered by the ColorSHIFT technology allow drivers to tailor the look of their headlights to match their personal style, making their vehicle truly unique. This upgrade is perfect for car enthusiasts looking to personalize their vehicles and improve their visibility and safety on the road.

• Enhanced Vehicle Aesthetics: Transforms the look of your car with a modern and unique appearance.
• Improved Visibility: Enhances safety at night and in adverse weather conditions with brighter headlights.
• Customization Options: Allows customization of the look of the headlights with various colors and effects.

Installation Guide for the 2301-335 Headlight Halo Ring Emitter Set

Tools and Materials Required

Before you begin the installation of your 2301-335 Headlight Halo Ring Emitter Set, gather all necessary tools and materials to ensure a smooth and efficient process. This will help you avoid any delays and ensure everything is readily available when needed. Proper preparation is key to a successful installation. Ensure you have a clean, well-lit workspace, and consider protecting your vehicle’s paint with appropriate coverings to prevent scratches or damage.

• Screwdrivers: Various sizes, including Phillips head and flathead screwdrivers, are essential for removing screws and fasteners.
• Pliers: Needle-nose pliers and standard pliers are helpful for handling wires, connectors, and small components.
• Heat Gun (Optional): A heat gun can be used to soften the headlight sealant, making it easier to open and reseal the headlight housing.
• Halo Rings: The 2301-335 Headlight Halo Rings themselves.

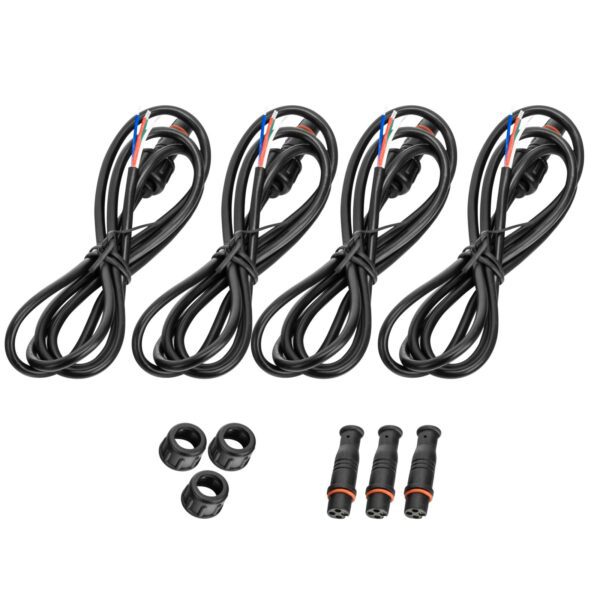

• Wiring Harness: The wiring harness provided with the kit, specifically designed to connect the halo rings to the vehicle’s power source.

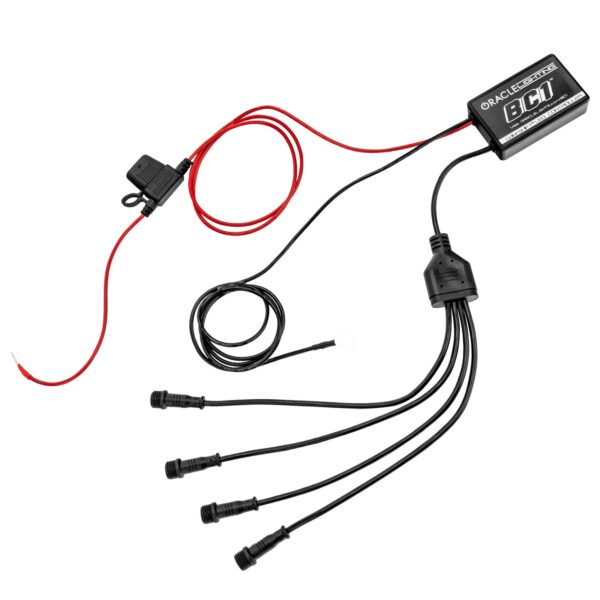

• Bluetooth Controller: The Bluetooth controller unit that manages the halo ring’s color and effects, often controlled by a smartphone app.

Step-by-Step Installation Instructions

Follow these step-by-step instructions to install the 2301-335 Headlight Halo Ring Emitter Set correctly. Remember to disconnect the vehicle’s battery before starting any electrical work for safety. Take your time and carefully follow each step to ensure a successful installation.

1. Step 1: Prepare the Vehicle: Disconnect the vehicle’s battery to prevent electrical shorts. Park the vehicle on a level surface and ensure the parking brake is engaged. Gather all necessary tools and materials, ensuring they are within reach.
2. Step 2: Remove the Headlights: Carefully remove the headlights from your vehicle. Refer to your vehicle’s service manual for specific instructions on how to remove the headlights, as this process varies depending on the make and model. Typically, this involves unscrewing bolts or removing clips.
3. Step 3: Wiring Process: Once the headlights are removed, locate the wiring harness and connect the halo rings to the correct terminals on the harness. If your kit includes a Bluetooth controller, connect the wiring harness to it. Ensure all connections are secure and properly insulated to prevent shorts.
4. Step 4: Testing and Mounting: Before completely reassembling the headlights, connect the wiring harness to a power source (typically the vehicle’s battery) to test the halo rings. Use the remote or app to cycle through the colors and effects to confirm functionality. If everything works correctly, carefully mount the halo rings inside the headlight housing, using the provided adhesive or mounting hardware.
5. Step 5: Reinstall the Headlights: Once the halo rings are securely mounted and tested, carefully reinstall the headlights back onto your vehicle. Reconnect any wiring that was disconnected during the removal process. Double-check all connections to ensure everything is secure. Finally, reconnect the vehicle’s battery and test the halo rings again to confirm everything is working as expected.

Technical Specifications of the 2301-335 Headlight Halo Ring Emitter Set

LED Specifications

Understanding the technical specifications of the LEDs used in the 2301-335 Headlight Halo Ring Emitter Set is crucial for appreciating their performance and capabilities. These specifications provide insight into the light output, efficiency, and lifespan of the halo rings. The use of high-quality LEDs ensures bright, reliable, and long-lasting illumination, enhancing both the aesthetics and safety of your vehicle.

• LED Type: SMD (Surface Mounted Device) LEDs are commonly used for their efficiency and brightness.
• Brightness: Typically measured in Lumens, the brightness can range from 500 to 1500 Lumens per ring, providing ample illumination.
• Color Temperature Range: Supports a wide color temperature range, from 3000K to 15000K, allowing for a variety of colors and effects.
• Lifespan: The LEDs are designed to have a long lifespan, often exceeding 50,000 hours of use, ensuring durability and reduced maintenance.

Controller Specifications

The controller is the brain of the halo ring system, managing the color, effects, and overall functionality of the lights. Knowing the specifications of the controller helps in understanding how to operate and customize the lighting to your preferences. The controller’s capabilities determine the range of colors, effects, and ease of use, contributing significantly to the overall user experience.

• Controller Type: Typically, Bluetooth or RF (Radio Frequency) controllers are used, offering convenient control options.
• Control Method: Control can be via a dedicated remote or a smartphone app, offering easy adjustments and customization.
• Input Voltage: Usually operates on a 12V DC input, making it compatible with most vehicles.
• Number of Channels: Commonly includes 4 channels to control different sections of the halo rings, allowing for more complex lighting effects.

Troubleshooting and FAQs

Common Issues and Solutions

Encountering issues with your 2301-335 Headlight Halo Ring Emitter Set is not uncommon, but most problems have straightforward solutions. Identifying the root cause is key to quickly resolving any issues. Review the following common problems and their solutions to ensure your halo rings function correctly and to avoid unnecessary downtime. Always consult the product manual for specific troubleshooting steps and safety precautions.

• Halo Ring not lighting up: Check for loose connections in the wiring harness, ensure the power source is functioning correctly, and verify the controller is properly connected.
• Controller connection errors: Ensure the controller is within range of the remote or smartphone, check for interference from other electronic devices, and reset the controller if necessary.
• Loose wires or connections: Carefully inspect all wiring connections for any loose wires or damaged insulation, and make sure the wires are securely connected.
• Battery issues: If the halo rings are not functioning, check the vehicle’s battery health, as a weak battery can affect the system’s operation.

Frequently Asked Questions

Addressing common questions can help clarify any doubts and provide essential information about the 2301-335 Headlight Halo Ring Emitter Set. This section provides answers to the most frequently asked questions to help users with their decision-making and usage experience. Always refer to the product manual for detailed information.

• Are the halo rings street legal? The legality of halo rings varies by region. Research local laws and regulations regarding aftermarket lighting modifications before installation.
• How long does installation take? Installation time varies depending on the vehicle and the installer’s experience. Typically, it takes between 2 to 4 hours.
• Do I need to modify my headlights? In most cases, minor modifications to the headlight housing may be necessary, such as opening the headlight.
• What kind of car is the 2301-335 compatible with? The 2301-335 is designed to fit a wide range of vehicles. Check the product specifications or consult with a professional to confirm compatibility with your vehicle model.
