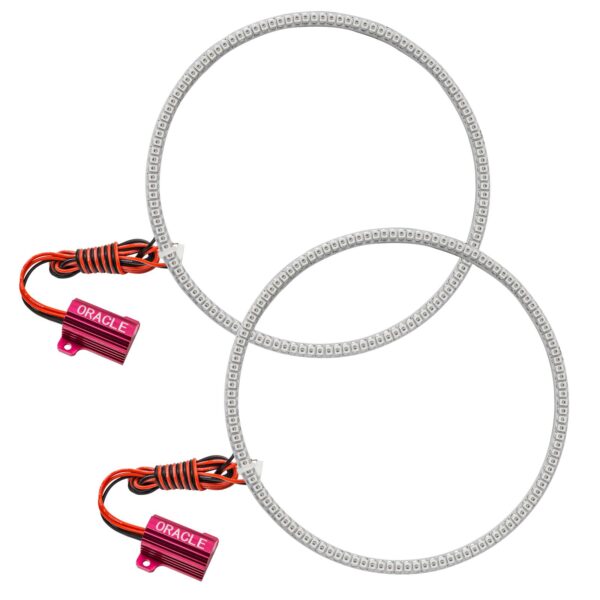

2316-009 – Hummer H3 2005-2010 ORACLE LED Halo Kit

Features and Benefits of the ORACLE LED Halo Kit for Hummer H3 (2005-2010)

Enhanced Vehicle Aesthetics

The ORACLE LED Halo Kit significantly enhances the visual appeal of your Hummer H3, providing a modern and distinctive look. This aftermarket upgrade allows Hummer H3 owners to personalize their vehicles, setting them apart from the standard factory appearance. The halo rings create a unique light signature, instantly updating the vehicle’s front-end design. This customization option is a straightforward way to make your Hummer H3 more eye-catching.

• Modernized look
• Customization options

Superior Illumination and Visibility

The ORACLE LED Halo Kit drastically improves headlight performance. Compared to standard headlights, the LED halo rings offer superior brightness and efficiency, which enhances visibility during nighttime and low-light conditions. By providing a brighter, more focused beam, the LED halo kit increases driver safety by improving the ability to see and be seen on the road. This enhancement is particularly beneficial in adverse weather conditions, such as rain or fog.

• Brighter and more efficient LEDs
• Improved visibility at night and in low-light conditions

Key Components and Technical Specifications

Kit Contents Breakdown

The ORACLE LED Halo Kit for the Hummer H3 includes several key components designed for a complete and easy installation. Each kit contains high-quality halo rings, LED drivers, a wiring harness, and, in some versions, a controller for color adjustments. The halo rings, typically made of durable materials, are designed to fit seamlessly within the Hummer H3’s headlight assembly. The LED drivers regulate power to the halo rings, ensuring consistent brightness and longevity. The wiring harness is often plug-and-play, simplifying the installation process. The included controller, when applicable, allows for easy adjustment of light colors and effects.

• Halo Rings: The kit includes two or four halo rings, depending on the headlight configuration.
• LED Drivers: High-efficiency LED drivers are included to regulate power and ensure longevity.
• Wiring Harness: A plug-and-play wiring harness is provided for easy and secure connections.
• Controller: Some kits include a controller, allowing for color customization and dynamic lighting effects.

Technical Specifications

The ORACLE LED Halo Kit operates on a 12V system, making it compatible with the Hummer H3’s electrical system. The LEDs used are typically surface mount devices (SMD), known for their brightness and longevity. The kits offer various color options, including single-color options and ColorSHIFT technology, which allows for customizable color changes. The product dimensions are designed to fit within the standard headlight housing of the Hummer H3, ensuring a secure and flush fit. It is important to check the exact specifications and dimensions for your specific Hummer H3 model before purchase.

• Voltage: 12V
• LED Type: SMD (Surface Mount Device)
• Color Options: Available in a variety of colors, including single color and ColorSHIFT options.
• Product Dimensions: Length 8.4 inches, width 8 inches, height 2.3 inches

Installation Guide for the ORACLE LED Halo Kit

Preparation and Tools Needed

Before beginning the installation of the ORACLE LED Halo Kit, ensure you have all necessary tools and materials. This will make the process smoother and more efficient. Required tools typically include screwdrivers (Phillips and flathead), a wrench or socket set, wire strippers, and wire connectors. Additional materials may include electrical tape or heat shrink tubing for secure connections. Ensure the vehicle’s battery is disconnected to prevent electrical shorts during installation. It is also recommended to consult the provided installation manual for specific instructions and any model-specific requirements.

• Tools List: Phillips and flathead screwdrivers, wrench or socket set, wire strippers
• Materials needed: Wire connectors, electrical tape or heat shrink tubing

Step-by-Step Installation Process

The installation process involves several steps, starting with the removal of the headlights and ending with the final testing of the halo rings. First, disconnect the vehicle’s battery. Next, remove the headlights from the Hummer H3. Then, install the halo rings into the headlight housing, securing them properly. After installing the halo rings, connect the wiring harness, ensuring all connections are secure and properly routed. Connect the wiring harness to the vehicle’s electrical system, ensuring proper polarity. Finally, test the halo rings to confirm proper operation. If the halo rings do not illuminate, double-check all connections and consult the troubleshooting tips.

1. Step 1: Removing the Headlights
2. Step 2: Installing the Halo Rings
3. Step 3: Wiring the Halo Kit
4. Step 4: Connecting to Power
5. Step 5: Testing and Finalizing

Troubleshooting Tips

If you encounter issues during the installation or operation of the ORACLE LED Halo Kit, several troubleshooting steps can help diagnose and resolve problems. Common issues include the halo rings not illuminating, flickering lights, or incorrect color display. If the lights do not turn on, check all wiring connections for proper and secure connections, and ensure the power source is correctly connected. Flickering lights might indicate a loose connection or an issue with the LED driver. Incorrect colors might result from incorrect wiring or controller settings. Consult the manufacturer’s instructions for specific troubleshooting steps and contact customer support if problems persist.

• Common issues: Halo rings not illuminating, flickering lights, incorrect color display.
• Solutions: Check wiring connections, ensure proper power source connection, verify controller settings.
