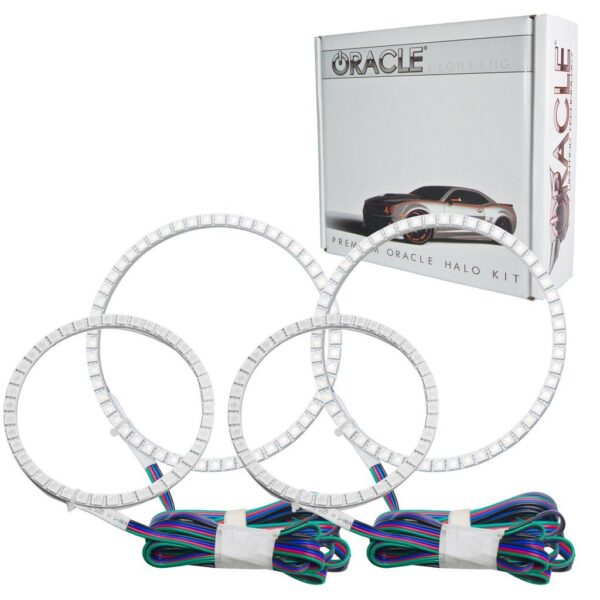

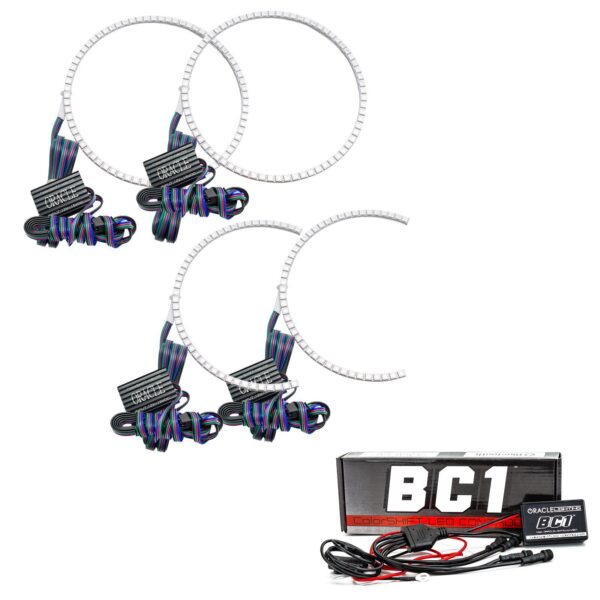

2344-335 – Headlight Halo Ring Emitter Set

Installation and Wiring Guide

Step-by-Step Installation Instructions

Follow these detailed steps to properly install your 2344-335 Headlight Halo Ring Emitter Set. Ensure you have the necessary tools and take safety precautions before beginning the installation process.

1. Step 1: Preparation: Gather all required tools, including a screwdriver set, wire strippers, and electrical tape. Disconnect the vehicle’s battery.
2. Step 2: Remove the Headlight: Carefully remove the headlight assembly from the vehicle. Refer to your vehicle’s service manual for specific instructions.
3. Step 3: Installing the Halo Rings: Place the halo rings around the headlight lenses. Secure them with the provided clips or adhesive.
4. Step 4: Wiring Connections: Connect the halo ring wires to the appropriate power source, and then connect the wires to the Bluetooth controller.
5. Step 5: Securing and Testing: Reassemble the headlight assembly and test the halo rings to ensure they function correctly.

Wiring Diagrams and Tips

Proper wiring is essential for the correct functioning of your halo rings. The following diagrams and tips will help you wire the rings to your vehicle’s power supply and controller:

• Diagram 1: Basic Wiring Diagram: This diagram provides a basic setup to power your halo rings, ensuring your vehicle’s electrical system is properly connected.

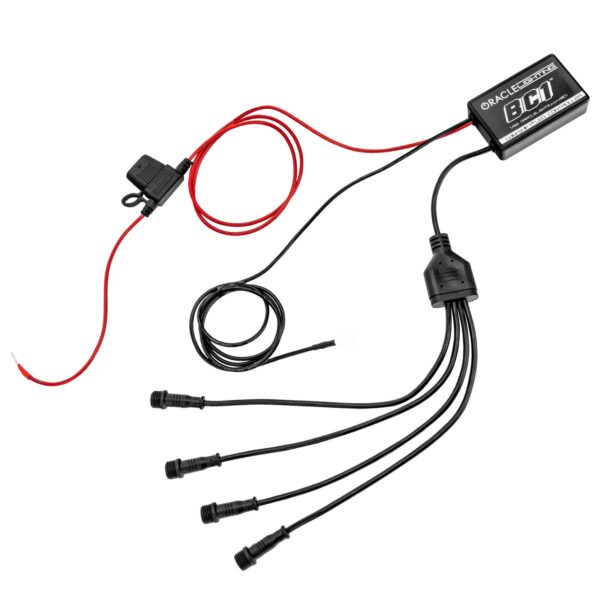

• Diagram 2: Wiring to a Bluetooth controller: Connect the wires to the Bluetooth controller, using the app to control the lighting.
• Tip 1: Safety precautions: Always disconnect the vehicle’s battery before beginning any electrical work. Wear safety glasses.
• Tip 2: Soldering and connectors: Consider soldering the wire connections for a secure and reliable connection. Use heat-shrink tubing to insulate the connections.
