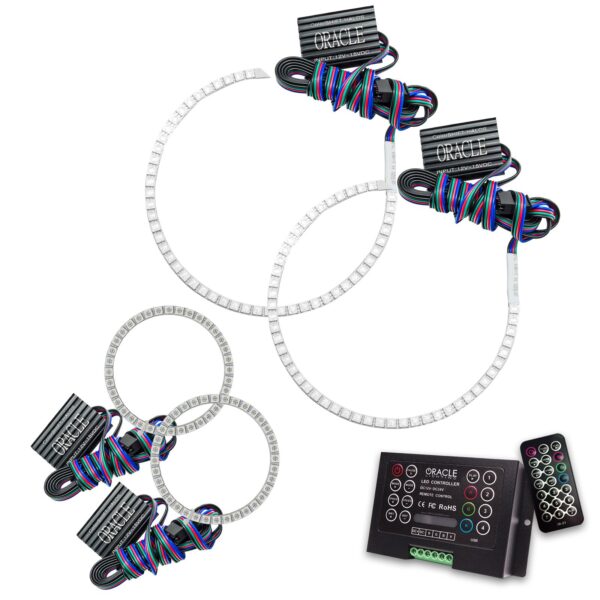

2414-333 – Lincoln Mark LT 2006-2007 ORACLE ColorSHIFT Halo Kit

Installation Guide for the 2006-2007 Lincoln Mark LT Halo Kit

Tools and Materials Needed

Gather the correct tools and materials before beginning the installation. Ensure you have everything necessary for a smooth installation process. The kit generally includes the necessary components, but some tools may be required separately.

• Phillips head screwdriver
• Flathead screwdriver
• Socket wrench set
• Wire strippers/crimpers
• Electrical tape
• Optional: Heat gun for easier seal removal

Step-by-Step Installation Process

Follow these detailed steps for a successful installation of the ORACLE ColorSHIFT Halo Kit on your Lincoln Mark LT.

1. Step 1: Remove the Headlights: Start by disconnecting the vehicle’s battery and removing the front grille and any surrounding trim to access the headlights. Unscrew and carefully remove the headlight assembly.
2. Step 2: Open the Headlight Housing: Gently heat the headlight housing to soften the sealant. Use a heat gun or place the headlight in an oven at a low temperature. Pry the lens away from the housing.

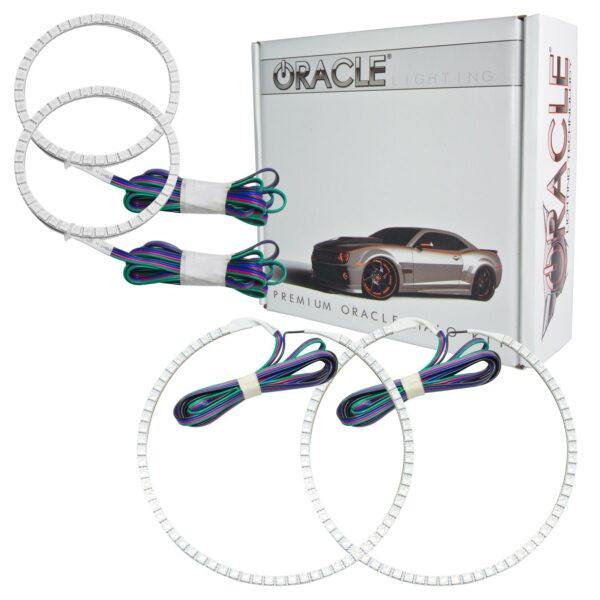

3. Step 3: Install the Halo Rings: Carefully place the halo rings inside the headlight housing, around the projector or reflector. Secure them using the provided clips or adhesive.
4. Step 4: Wiring and Connections: Connect the halo ring wires to the ColorSHIFT controller. Ensure secure and waterproof connections. Route the wiring neatly within the headlight housing.

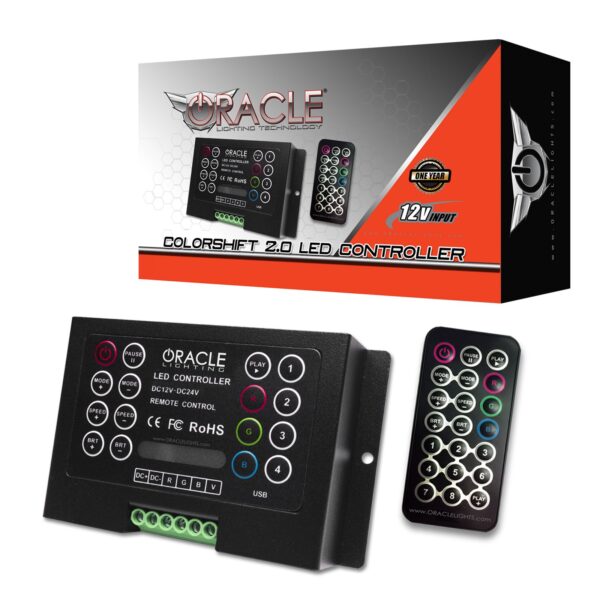

5. Step 5: Controller Installation: Mount the controller in a secure, accessible location under the hood. Connect the controller to the vehicle’s power source, following the wiring diagram.
6. Step 6: Reassemble and Test: Reassemble the headlight housing, ensuring a tight seal. Reinstall the headlights on the vehicle and reconnect the battery. Test the ColorSHIFT functionality.

Troubleshooting and Common Issues

Address any issues encountered during the installation process to ensure the proper functioning of the halo kit.

• Water condensation inside the headlight: Ensure the headlight housing is properly sealed. Apply silicone sealant if necessary.
• Color issues or controller problems: Check all wiring connections for security. Verify the controller’s power source.
