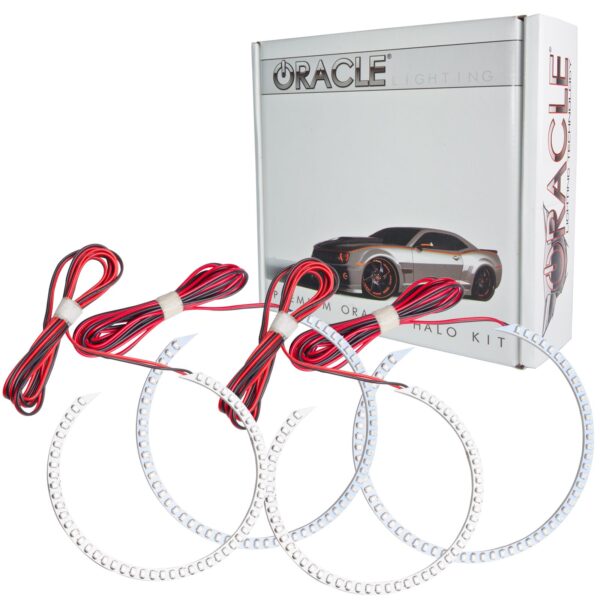

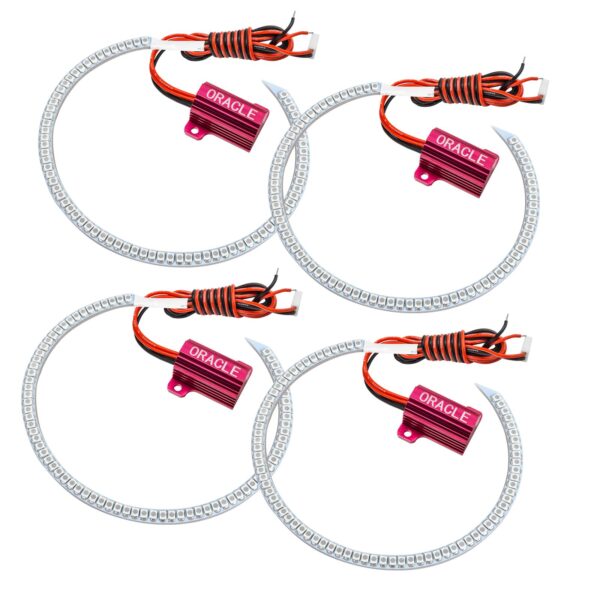

2435-004 – Nissan Maxima 2002-2003 ORACLE LED Halo Kit

Installation Guide for ORACLE LED Halo Kit on 2002-2003 Nissan Maxima

Tools and Materials Required

To install the ORACLE LED Halo Kit on your 2002-2003 Nissan Maxima, you will need the following tools and materials:

* Phillips head screwdriver
* Flathead screwdriver
* Heat gun or oven (for opening the headlight)
* Gloves
* Safety glasses
* Wiring connectors (e.g., T-taps or crimp connectors)
* Electrical tape
* Optional: Multimeter (for checking voltage and connections)

Links for purchasing these tools and materials can be found online at auto parts stores or through online retailers like Amazon.

Step-by-Step Installation Instructions

1. Step 1: Headlight Removal

   Begin by opening the hood of your Nissan Maxima. Locate the bolts or clips securing the headlights to the vehicle. Carefully remove these fasteners, typically using a Phillips head screwdriver or a suitable wrench. Gently detach the headlights from the vehicle, disconnecting any wiring harnesses connected to the lights. Place the headlights on a clean, stable surface to prevent scratches.

2. Step 2: Halo Ring Placement

   To install the halo rings, you will need to open the headlight housing. Use a heat gun or an oven (set to a low temperature, around 200°F) to soften the sealant around the headlight lens. Once the sealant is soft, carefully pry the lens away from the housing. Place the halo rings inside the headlight housing, ensuring they are properly aligned around the projector or reflector. Secure the halo rings using the provided adhesive or mounting clips. Be careful to route the wires neatly to avoid interference with other components.

3. Step 3: Wiring the Halo Kit

   Connect the wiring of the halo kit to the vehicle’s electrical system. Locate the wiring for the running lights or headlights. Use the provided wiring connectors (T-taps or crimp connectors) to tap into the power source, typically the parking light wire. Connect the positive and negative wires from the halo kit to the corresponding wires. Ensure all connections are secure and use electrical tape to insulate the connections. If your kit has a control module, mount it in a safe location, and connect it to the halo rings according to the wiring diagram.

4. Step 4: Headlight Reassembly and Testing

   Once the halo rings are wired, reassemble the headlights. Carefully place the lens back onto the headlight housing. Use the heat gun or oven to reseal the lens to the housing, ensuring a tight seal to prevent moisture from entering. Reinstall the headlights onto your Nissan Maxima, securing them with the original bolts or clips. Connect the wiring harnesses and test the halo kit. Turn on your parking lights or headlights to verify the halo rings illuminate. If everything works correctly, your installation is complete.

Installation Tips and Troubleshooting

For a smoother installation, pre-heat your oven to 200°F and keep it consistent to prevent the headlight housing from overheating. Make sure to clean the headlight housing before the assembly to make sure you have a clean seal. Also, make sure you check online for videos about the halo installation on the 2002-2003 Nissan Maxima to better visually follow the process. If the halo rings do not light up, double-check all wiring connections to ensure they are secure and correctly connected. Verify that the power source is functioning correctly. If you’re unsure about any step, consult with a professional or seek assistance from an experienced installer.

Frequently Asked Questions about ORACLE LED Halo Kits

What is an LED Halo Kit?

An LED halo kit is a set of LED lights designed to be installed around the headlights of a vehicle. The purpose is to enhance the vehicle’s aesthetics and improve its visibility.

Is the installation difficult?

The installation difficulty varies depending on the vehicle and the installer’s experience. Many kits are designed for easy, DIY installation. However, opening the headlights and wiring can be tricky, so professional installation is an option if you’re not comfortable with these tasks.

What colors are available?

ORACLE LED Halo Kits are available in various colors, including white, blue, red, and color-changing RGB options. Availability may vary based on the specific product and model.

Are these kits street legal?

The legality of LED halo kits varies by location. Always check your local regulations to ensure the kit complies with local laws. Some kits may not be street legal.
