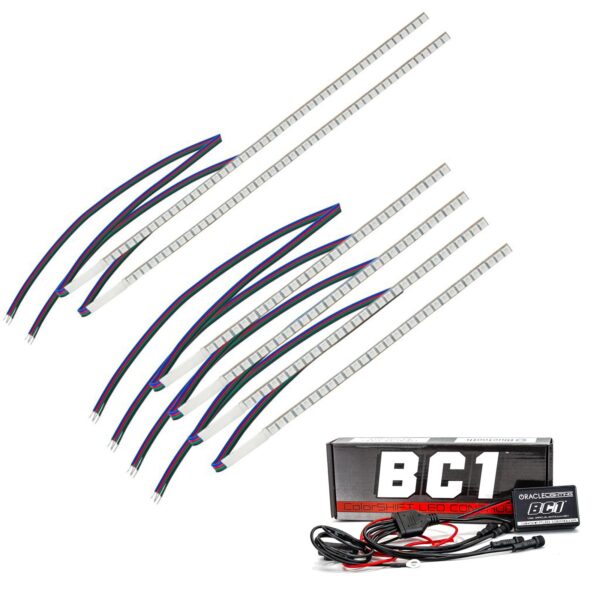

2522-335 – Daytime Running Light Circuit Board

Key Features and Benefits of the 2522-335 DRL Circuit Board

The 2522-335 Daytime Running Light (DRL) circuit board is designed for automotive enthusiasts and anyone looking to upgrade their vehicle’s lighting system. This advanced circuit board offers significant improvements in both functionality and aesthetics, enhancing the overall driving experience.

Enhanced Lighting Performance

The 2522-335 DRL circuit board is engineered to significantly improve the brightness, clarity, and overall performance of your vehicle’s daytime running lights. This results in enhanced visibility, ensuring your vehicle is easily seen by other drivers, thereby improving safety on the road.

• Improved light output
• Enhanced visibility

ColorSHIFT Technology and Customization

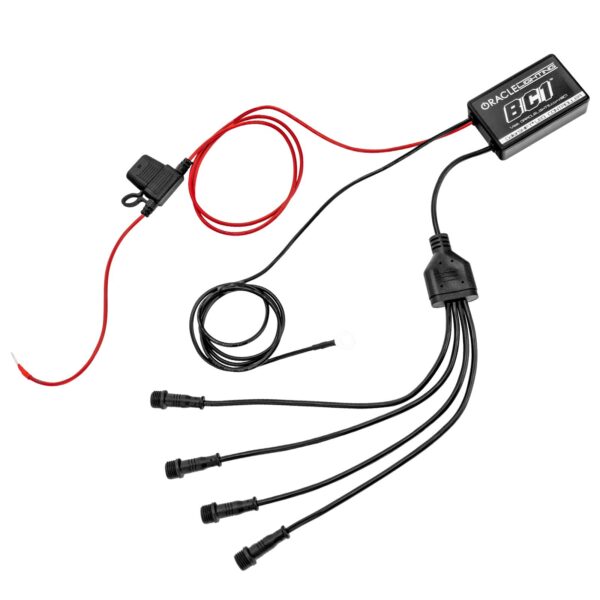

The 2522-335 DRL circuit board features ColorSHIFT technology, offering users the ability to customize the color of their DRLs. This feature is controlled via a smartphone app, allowing for a wide range of color options to suit your personal preferences or match the vehicle’s aesthetics. The included app provides an intuitive interface for easy color selection and customization.

• Customizable colors
• Smartphone control

Compatibility and Easy Installation

The 2522-335 DRL circuit board is designed for broad compatibility with a range of vehicle models. Installation is straightforward, with most users able to complete the process with basic tools. Please check the product specifications for specific vehicle compatibility information, including model years. This ensures a perfect fit and seamless integration with your vehicle’s existing electrical system.

• Easy installation
• Compatibility with specific vehicle models

Technical Specifications

Circuit Board Specifications

The 2522-335 DRL circuit board is built to precise specifications, ensuring optimal performance and durability. Understanding these specifications can help you assess the board’s suitability for your vehicle and its intended use. Here are some of the key specifications:

• Voltage: 12V DC, standard for most automotive applications.
• Wattage: Varies depending on the lighting configuration, optimized for energy efficiency.
• Dimensions (Length, Width, Height): Designed to fit within the standard DRL housing, ensuring easy integration.

Installation and Usage Guide

Installation Instructions

Installing the 2522-335 DRL circuit board is a straightforward process. However, it is important to follow these steps carefully to ensure proper installation and avoid any potential damage to your vehicle’s electrical system. If you are not comfortable performing this installation, consult a qualified automotive technician.

1. Step 1: Disconnect the vehicle’s battery. This is a critical safety step to prevent electrical shorts.
2. Step 2: Locate the DRL assembly. This usually involves accessing the front of the vehicle. Consult your vehicle’s manual for specific instructions.
3. Step 3: Remove the old circuit board. Carefully detach the existing circuit board from the DRL assembly. Note the connections for proper reinstallation.
4. Step 4: Install the new circuit board. Align and secure the 2522-335 DRL circuit board within the DRL assembly, ensuring all connections are properly made.
5. Step 5: Reconnect the vehicle’s battery. After verifying all connections are secure, reconnect the vehicle’s battery.
6. Step 6: Test the DRLs. Turn on the vehicle’s headlights and verify that the DRLs are functioning correctly, and that the ColorSHIFT feature is working as expected.

User Instructions for ColorSHIFT Control

The ColorSHIFT feature is controlled via a smartphone app, providing a user-friendly interface to customize the color of your DRLs. Follow these steps to operate the ColorSHIFT function:

• App download: Download the appropriate app for your device (iOS or Android).
• Bluetooth pairing: Enable Bluetooth on your smartphone and pair it with the DRL circuit board.
• Color selection: Use the app interface to select your desired color from the available options. You can also create custom color settings.
