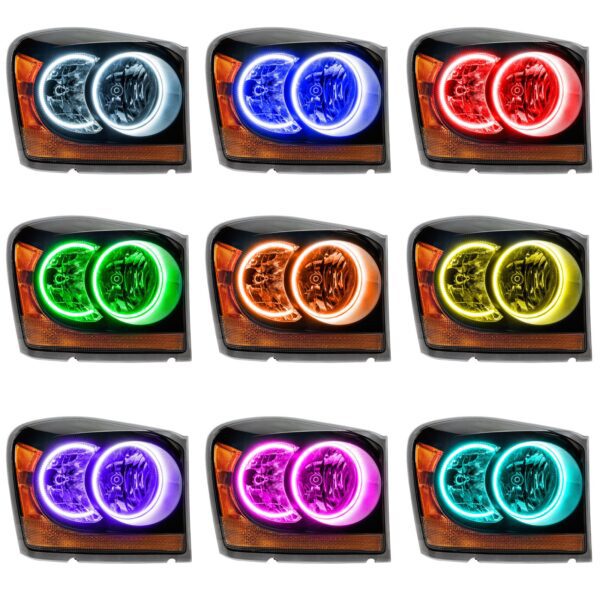

2645-333 – Dodge Durango 2004-2006 ORACLE ColorSHIFT Halo Kit

Installation Guide and Tips

Step-by-Step Installation Instructions

Installing the ORACLE ColorSHIFT Halo Kit involves several steps. Always disconnect the vehicle’s battery before starting any electrical work. Make sure to follow each step precisely.

1. Prepare the Headlights: Carefully remove the headlights from the vehicle. Depending on your Durango model, this may involve removing the front grille and several screws.
2. Disassemble the Headlights: Use a heat gun to soften the adhesive around the headlight lens. Carefully separate the lens from the housing.

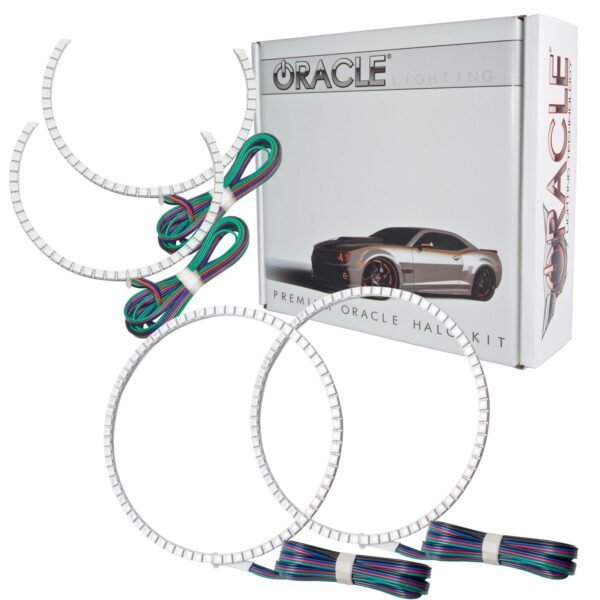

3. Install the Halo Rings: Position the halo rings inside the headlight housing, securing them with the provided adhesive or clips.

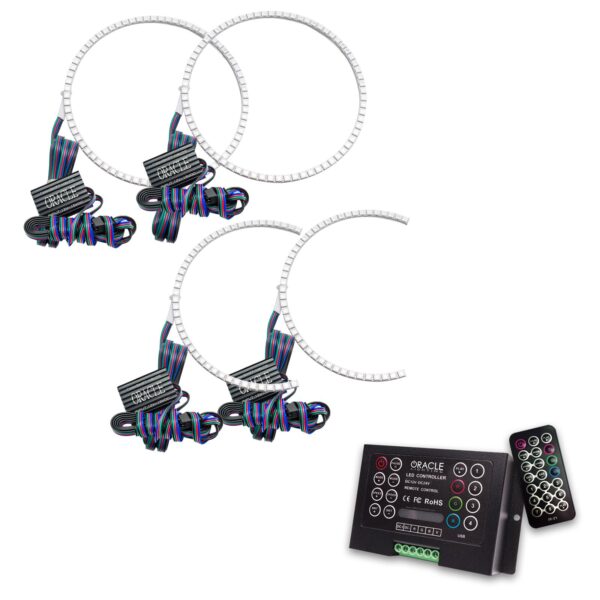

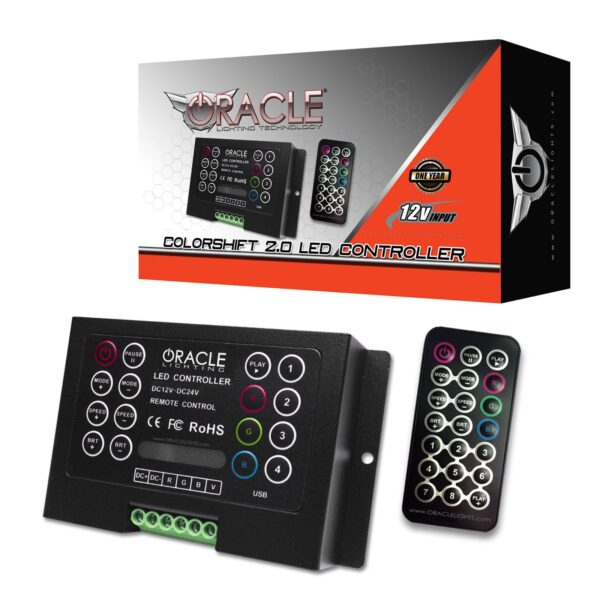

4. Wire the Controller: Connect the halo rings to the controller. Route the wiring harness to a power source and ground.
5. Reassemble the Headlights: Reattach the headlight lens to the housing, ensuring a secure seal.
6. Test the Lights: Reconnect the headlights to the vehicle and test the halo kit’s functionality using the remote or app.

Wiring and Electrical Connections

Proper wiring is critical for the halo kit’s performance and longevity. Familiarize yourself with the vehicle’s electrical system before starting. If unsure, consult a professional.

• Wiring Diagrams: The kit includes detailed wiring diagrams to help you connect the halo kit to the vehicle’s power and ground.
• Electrical Connections: Connect the power wire to a fuse or a suitable power source. Ground the ground wire to a chassis point.
• Safety Precautions: Always disconnect the battery before working with electrical components. Double-check all connections for security.

Troubleshooting Tips

If you encounter any issues during installation, review these common problems and their solutions.

• Common Issues: Incorrect wiring, faulty controller, or damaged LEDs.
• Troubleshooting Solutions: Double-check all wiring connections. Test the controller with a multimeter. Inspect the LEDs for damage. Contact customer support for additional assistance.
