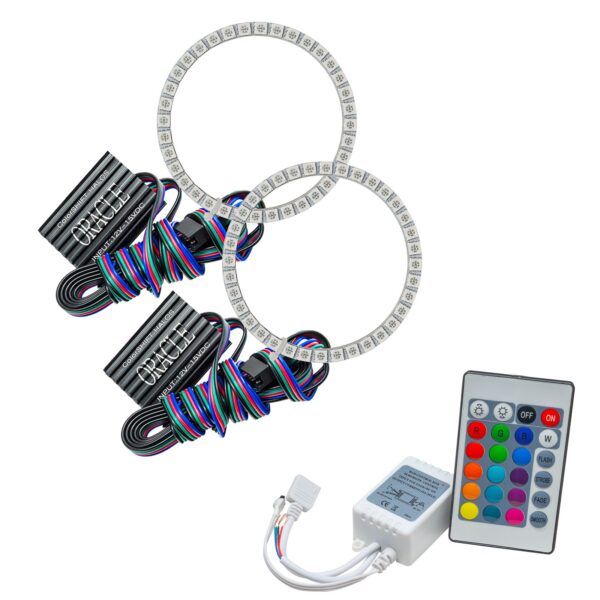

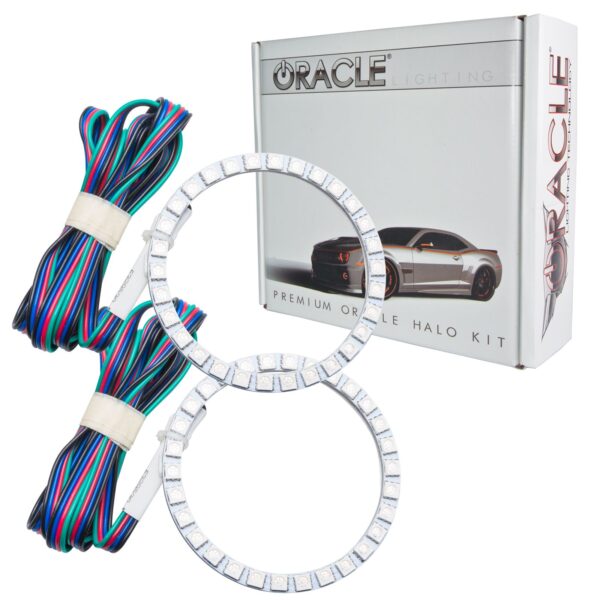

2655-504 – Ford Fusion 2012-2017 ORACLE ColorSHIFT Halo Kit

Installation & Maintenance

Installation Guide

Follow these steps for installation:

1. Prepare: Gather all tools and components of the kit.
2. Headlight Removal: Carefully remove the headlight assembly from the vehicle.
3. Halo Ring Installation: Mount the LED halo rings around the headlight.
4. Wiring: Connect the wiring harness according to the provided instructions, ensuring secure connections.

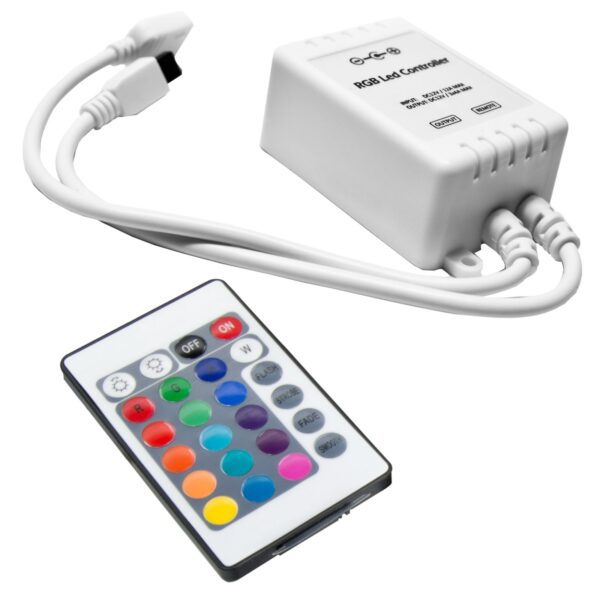

5. Controller Placement: Mount and connect the ColorSHIFT controller in a safe location within the vehicle.
6. Testing: Test the system to confirm functionality.
7. Reassembly: Reinstall the headlight assembly into the vehicle.

Ensure all connections are secure and that the system functions correctly before completing the installation.

Maintaining Your Halo Kit

Maintaining your ORACLE ColorSHIFT Halo Kit ensures its longevity and optimal performance. Regularly inspect the lighting components and wiring connections for any signs of wear or damage. Clean the halo rings with a soft cloth and mild cleaning solution to remove dirt and debris, avoiding harsh chemicals. Ensure the controller is protected from moisture and extreme temperatures. If any issues arise, consult the manufacturer’s instructions or seek professional assistance to address them promptly. Proper maintenance will ensure that your halo kit continues to provide reliable and attractive lighting for your Ford Fusion.
