2050-002 – ORACLE Pre-Wired Power Symbol Momentary Flush Mount LED Switch

Key Features of the ORACLE 2050-002 LED Switch

Design and Functionality

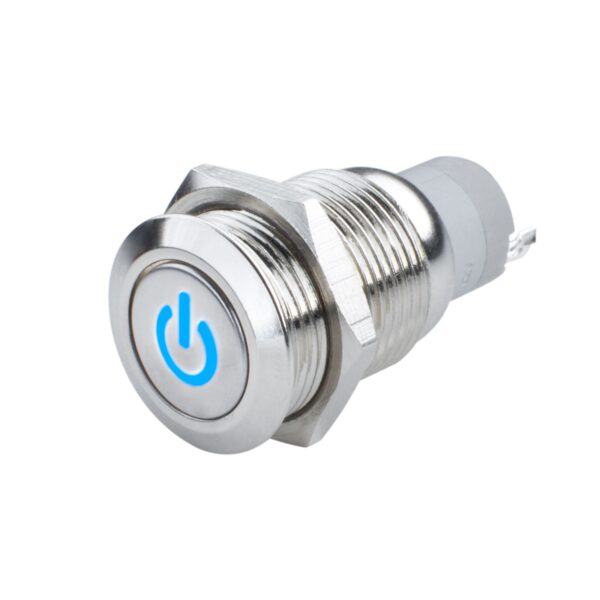

The ORACLE 2050-002 LED Momentary Flush Mount Switch is a robust and stylish solution for various applications. This switch features a sleek flush mount design, allowing for a clean and integrated look. The power symbol is clearly marked, ensuring easy identification and operation. The LED illumination provides clear visual feedback, indicating the switch’s status. The momentary action ensures that the switch only activates a circuit while it is being pressed, making it ideal for a variety of control functions.

Durability and Build Quality

Built to last, the ORACLE 2050-002 features heavy-duty brass assemblies and nickel plating, providing excellent corrosion resistance and longevity. The use of high-quality materials ensures the switch can withstand the rigors of daily use in demanding environments. The durable construction enhances the reliability of the switch, contributing to a longer service life. The switch is built to last, withstanding frequent use without compromising performance.

• Heavy-duty brass assemblies for enhanced durability.
• Nickel plating for corrosion resistance.

Technical Specifications and Compatibility

Electrical Specifications

The ORACLE 2050-002 LED Momentary Flush Mount Switch operates at 12V, making it suitable for a wide range of automotive, marine, and industrial applications. The switch is designed to handle electrical loads efficiently, ensuring reliable performance. The 12V rating ensures compatibility with common power systems, making integration straightforward. The switch is built to meet stringent electrical standards, providing safe and dependable operation.

Installation Requirements

Installation requires a 16MM mounting hole, allowing for secure and flush mounting. This size is standard, making it easy to integrate the switch into various panels and surfaces. Ensure that the mounting surface can support the switch and that there is sufficient clearance behind the panel for the switch body and wiring. Proper installation is crucial for optimal performance and a clean, professional appearance.

Installation and Wiring Guide

Wiring Instructions

Wiring the ORACLE 2050-002 is straightforward. Connect the positive (+) and negative (-) wires of the LED to a 12V power source. The switch wires connect to your load circuit. The switch is a momentary switch, so current only flows when the button is depressed. Detailed wiring diagrams are usually included with the product, ensuring easy and accurate connections.

Mounting Procedure

To flush mount the switch, first, drill a 16MM hole in the desired mounting surface. Insert the switch body through the hole from the front, and secure it using the included hardware. Ensure the switch is properly aligned and tightened to prevent movement. Flush mounting provides a clean and professional look, enhancing the overall aesthetic of the installation. Mounting correctly ensures a secure and stable fit.

Applications and Use Cases

Common Applications

The ORACLE 2050-002 is ideal for a wide variety of applications. Common uses include automotive applications such as controlling lights, horns, and other accessories. It can also be used in trucks, marine vehicles, and industrial equipment. The momentary action makes it suitable for various control functions where a brief activation is needed. The switch’s versatility and durability make it a popular choice for many projects.

Product Variations (Optional)

Available Colors

The ORACLE 2050-002 LED Momentary Flush Mount Switch is available in a variety of LED colors. Color options may include blue, green, red, and white. Check product specifications for the available options.
