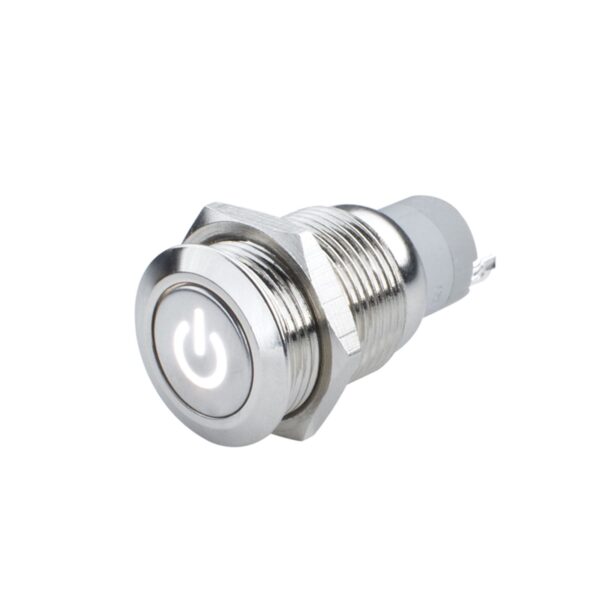

2057-001 – ORACLE Power Symbol On/Off Flush Mount LED Switch

Key Features of the ORACLE 2057-001 Power Symbol Switch

Durable Construction and Design

The ORACLE 2057-001 Power Symbol Flush Mount LED Switch is engineered with durability in mind. Constructed with a heavy-duty brass assembly, the switch ensures longevity and resilience, capable of withstanding the rigors of daily use. The nickel plating finish not only adds to the aesthetic appeal but also provides an extra layer of protection against wear and tear. A notable feature is the tactile “click” feedback, providing a satisfying confirmation of engagement. These material choices and design elements ensure that the switch can endure demanding environments.

• Heavy-duty brass assembly for enhanced durability
• Durable nickel plating finish
• Feelable “click” when engaged

Illuminated Power Symbol

The most distinguishing feature of the ORACLE 2057-001 is its illuminated power symbol, providing immediate visual confirmation of the switch’s status. The LED integrated into the switch enhances visibility, especially in low-light conditions, ensuring ease of use day or night. This feature not only adds to the functionality but also contributes to the modern aesthetic of any vehicle’s interior. This design element is crucial for both safety and convenience.

• Eye-catching illuminated power symbol
• Improved visibility in dark environments

Flush Mount Design

The flush mount design of the ORACLE 2057-001 LED Switch is a testament to its sleek and modern aesthetic. Designed to integrate seamlessly into any vehicle’s interior or exterior, the switch offers a clean, low-profile appearance that enhances the overall look. The precise dimensions of the switch, requiring a 16mm mounting hole, ensure a perfect fit, contributing to a professional and integrated installation. This attention to detail makes the switch a versatile choice for any automotive customization project, adding a touch of elegance while maintaining functionality.

• Flush mount design for a clean, modern look
• Requires a 16mm mounting hole

Technical Specifications and Compatibility

Electrical and Performance Specifications

The ORACLE 2057-001 Power Symbol Flush Mount LED Switch operates on a 12V power source, making it compatible with a wide range of vehicles. The design of the switch is CE compliant, ensuring that it meets the necessary safety and performance standards. This compliance indicates that the switch has been assessed to meet high safety, health, and environmental protection requirements, providing peace of mind to the user. These specifications guarantee reliable and safe operation within the intended electrical systems.

• 12V Powered
• CE Compliant

Installation Requirements

For a smooth and efficient installation process, the ORACLE 2057-001 switch requires a 16mm mounting hole. The specific size ensures a secure and stable fit within the vehicle’s paneling or dashboard. Adhering to the mounting hole dimensions is essential for ensuring the switch sits flush and functions properly, adding to the overall aesthetic and operational integrity of the installation. Careful attention to these specifications will contribute to a professional-looking and reliable outcome.

• 16MM Mounting Hole

Installation Guide and Best Practices

Tools and Materials Needed

To properly install the ORACLE 2057-001 Power Symbol Flush Mount LED Switch, several tools and materials are required. These include a drill and drill bits suitable for creating the 16mm mounting hole, wiring connectors or crimps for secure electrical connections, wire strippers and cutters to prepare the wires, and screwdrivers for any necessary adjustments. Having these items readily available will streamline the installation process, ensuring a clean, efficient, and safe installation.

• Drill and Drill Bits
• Wiring Connectors/Crimps
• Wire Strippers/Cutters
• Screwdrivers

Step-by-Step Installation Instructions

Installation of the ORACLE 2057-001 Power Symbol Flush Mount LED Switch involves a few straightforward steps. Begin by drilling a 16mm mounting hole in the desired location. Next, connect the switch to a 12V power source, ensuring that the wiring is properly secured using connectors or crimps. Finally, test the switch to confirm that the power symbol illuminates and that the connected devices operate as expected. Following these steps carefully will result in a successful installation, enhancing both the functionality and aesthetics of your vehicle. For any wiring concerns, consult a professional.

1. Drill a 16mm mounting hole
2. Connect to power source
3. Test the switch

Applications and Use Cases

Vehicle Applications

The ORACLE 2057-001 Power Symbol Flush Mount LED Switch is designed for a wide array of applications within vehicles. Common uses include controlling interior and exterior lighting systems, such as fog lights and LED light bars, as well as other interior accessories. This switch offers flexibility, allowing for customization based on the user’s needs and preferences. Its versatility makes it an ideal choice for enhancing the functionality and appearance of any vehicle.

• Fog lights
• LED light bars
• Interior accessories

Installation Locations

The flush mount design of the ORACLE 2057-001 allows for versatile placement within a vehicle. Ideal mounting locations include the dashboard, center console, or custom panels. The sleek design ensures that the switch integrates seamlessly into the vehicle’s interior, enhancing its overall appearance. The ease of installation and adaptability make it suitable for various interior configurations.

• Dashboard
• Console
• Custom panels
