2056-504 – ORACLE Pre-Wired Flush Switch Connector

ORACLE 2056-504 Connector: What It Is and Why You Need It

In the world of vehicle customization, installing aftermarket accessories often means dealing with complex wiring. The ORACLE 2056-504 pre-wired flush switch connector streamlines this process significantly. This innovative product is designed to simplify the installation of flush LED switches, commonly used for controlling various vehicle accessories. By choosing the ORACLE 2056-504, you eliminate the need for tedious manual wiring, saving valuable time and reducing the potential for installation errors. Whether you’re a DIY enthusiast or a professional installer, this connector provides a user-friendly solution for achieving a clean, professional finish in your car, truck, or other vehicle.

Overview of the ORACLE 2056-504

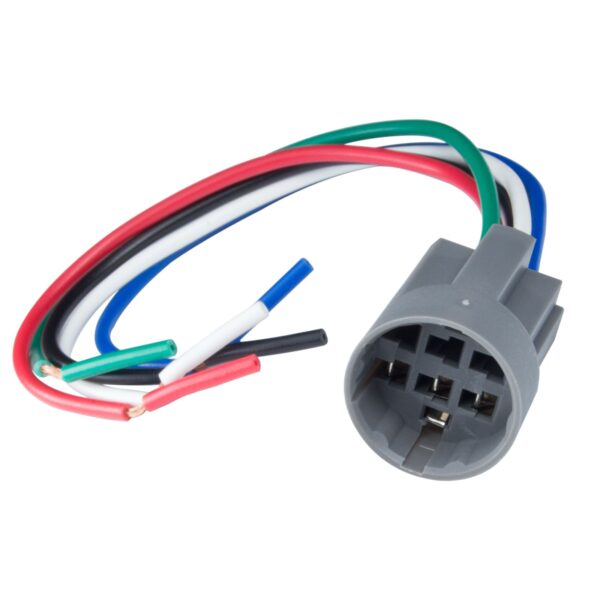

The ORACLE 2056-504 is a pre-wired connector specifically designed to work with flush-mount LED switches. Its primary function is to simplify the wiring process, making it easier to connect your switches to the vehicle’s electrical system. Unlike traditional wiring methods that require cutting, stripping, and crimping wires, this pre-wired solution comes ready to use, reducing installation time and the risk of wiring mistakes. The connector features a durable design, ensuring a reliable and long-lasting connection for your vehicle’s accessories.

Benefits of Using a Pre-Wired Connector

• Reduced Installation Time: Significantly cuts down the time spent on wiring, allowing for quicker accessory installations.
• Simplified Wiring Process: Eliminates the need for complex wiring tasks, making the installation accessible to users of all skill levels.
• Increased Reliability: Ensures a secure and dependable connection, reducing the chances of loose wires or electrical issues.

Key Features and Specifications

The ORACLE 2056-504 pre-wired flush switch connector is engineered to provide a robust and user-friendly solution for vehicle accessory wiring. It is built with high-quality materials, offering both durability and ease of use. Below are the technical specifications of the connector:

Technical Specifications

Compatibility and Applications

The ORACLE 2056-504 connector is specifically designed for use with flush-mount LED switches commonly found in automotive and truck applications. It is ideal for a variety of accessories, including LED light bars, auxiliary lights, interior lighting, and other vehicle customizations. The connector’s design ensures compatibility with a wide range of flush-mount switches, making it a versatile solution for vehicle owners looking to upgrade or add accessories. It’s particularly suited for those who desire a clean, professional installation without the complexities of traditional wiring methods. The pre-wired design simplifies the wiring process for various vehicle types, offering a convenient and reliable solution for both professional installers and DIY enthusiasts in the auto and truck categories.

Installation Guide: Step-by-Step Instructions

Installing the ORACLE 2056-504 pre-wired flush switch connector is straightforward. Follow these steps to ensure a successful installation. Always disconnect the negative battery terminal before beginning any electrical work on your vehicle.

Tools and Materials You’ll Need

1. ORACLE 2056-504 pre-wired flush switch connector
2. Flush-mount LED switch
3. Wire strippers/crimpers
4. Screwdriver or other tools for mounting the switch
5. Electrical tape or heat shrink tubing (optional, for added insulation)

Installation Steps

1. Prepare the Switch: Mount the flush-mount LED switch in the desired location on your vehicle’s dashboard, console, or other suitable panel. Ensure the switch fits securely and is easily accessible.
2. Connect the Connector: Connect the wires from the ORACLE 2056-504 connector to the corresponding terminals on the flush-mount LED switch. The connector is designed to be plug-and-play, ensuring a secure and reliable connection.
3. Connect to Power Source: Identify the power source for your accessory. This could be a direct connection to the vehicle’s battery (using an inline fuse for protection) or a connection to an existing circuit. Connect the appropriate wires from the ORACLE 2056-504 connector to the power source and the ground.
4. Test the Connection: Reconnect the negative battery terminal and test the switch by turning on the accessory. The LED light on the switch should illuminate, and the accessory should function correctly.
5. Secure the Wiring: Use electrical tape or heat shrink tubing to insulate any exposed wire connections, providing added protection against moisture and wear. Neatly route and secure the wiring to prevent it from interfering with other vehicle components.

Troubleshooting and FAQs

Even with a straightforward installation, you may encounter some issues. Here are some common problems and solutions, along with answers to frequently asked questions.

Common Installation Problems

• Accessory Not Working: Check all wire connections to ensure they are secure and properly connected. Verify that the power source is active and that the inline fuse (if used) is not blown.
• Switch Not Lighting Up: Check the wiring connections for the switch’s LED. Ensure that the ground connection is secure. The LED might have a separate power connection that needs to be verified.
• Loose Connections: Ensure all wire connections are firmly crimped or secured. Use electrical tape or heat shrink tubing to prevent wires from coming loose due to vibration or movement.

Frequently Asked Questions

• Are these connectors universal?

  The ORACLE 2056-504 connectors are designed to work with a wide range of flush-mount LED switches. However, it’s essential to check the switch’s specifications to ensure compatibility. The connector is primarily suited for switches that use standard wiring configurations.

• What type of switches are compatible?

  These connectors are compatible with most flush-mount LED switches commonly used in vehicles. These switches usually have standard terminals for power, ground, and the accessory. Confirm the switch’s wiring diagram before installation.
