2020-504 – Female DC Connector Plug

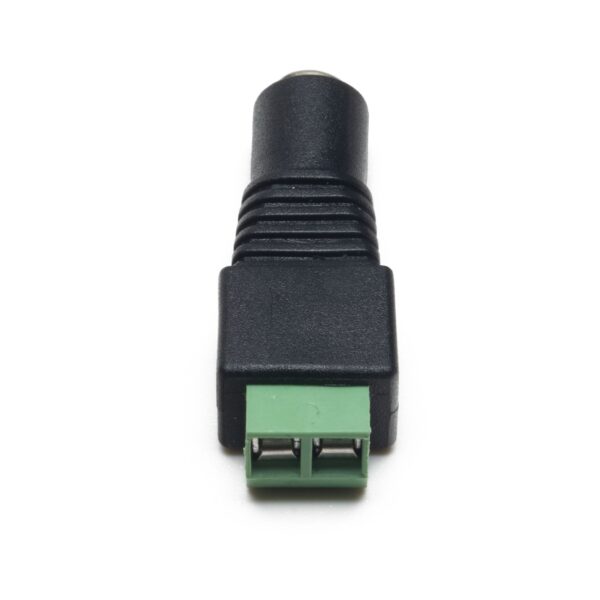

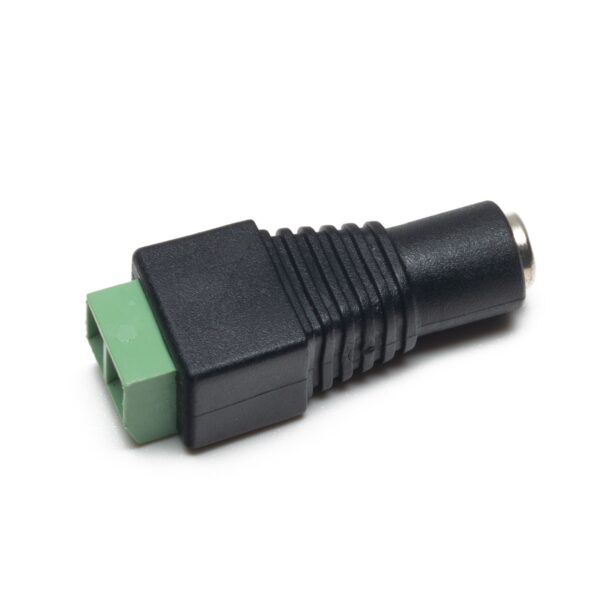

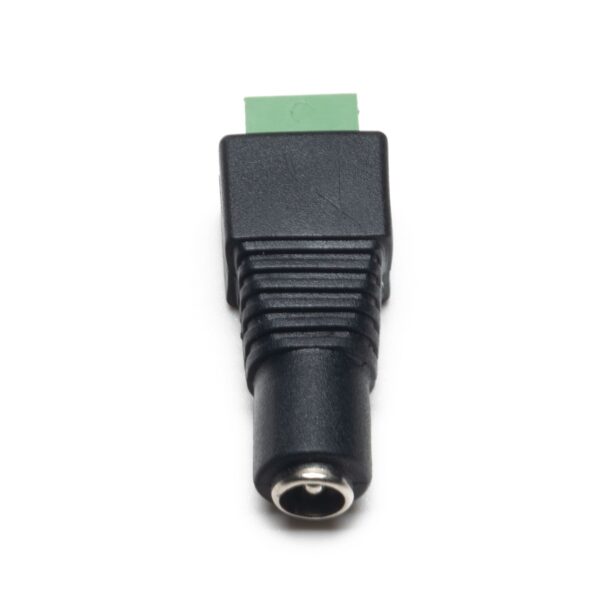

What is the Oracle Lighting 2020-504 Female DC Connector Plug?

The Oracle Lighting 2020-504 Female DC Connector Plug is designed to provide a reliable connection for DC power in various applications, with a strong emphasis on automotive lighting. This plug ensures secure and efficient power transfer for your electrical components.

Overview of the 2020-504 Plug

A female DC connector plug is a crucial component in electrical systems, serving to connect devices that require direct current (DC) power. Its primary function is to establish a safe and effective link between a power source and the device, allowing electricity to flow seamlessly. The Oracle Lighting 2020-504 is a standard 2.1mm DC power/pigtail female plug. It features a total length of 6 inches, with dimensions of 5.5 mm (outside dimension) x 2.1 mm (inside dimension). These specifications make it suitable for a wide range of applications, particularly in automotive settings.

Key Features and Benefits

The Oracle Lighting 2020-504 Female DC Connector Plug is engineered with specific features to ensure durability, ease of use, and reliable performance in various conditions.

Design and Build Quality

The plug is constructed from high-quality materials designed to withstand the rigors of automotive environments. This ensures the longevity and consistent performance of the connector. It features a robust housing that provides protection against physical damage and environmental factors. The overall length of 6 inches and the 5.5 mm x 2.1 mm dimensions provide a compact yet effective design, making it easy to integrate into different setups.

• Durable materials for long-lasting use.
• Total length: 6 inches.
• Dimensions: 5.5 mm (outside) x 2.1 mm (inside).

Ease of Installation and Use

The Oracle Lighting 2020-504 is designed for straightforward installation, making it a user-friendly option for both professionals and DIY enthusiasts. Its plug-and-play design minimizes the need for specialized tools or extensive technical knowledge. The connector’s design facilitates quick and easy connections, saving time and effort during installation. This ease of use ensures that users can quickly and efficiently set up their lighting or electrical systems without unnecessary complications.

• Simple plug-and-play design.
• User-friendly for quick setup.

Applications and Compatibility

The Oracle Lighting 2020-504 Female DC Connector Plug is particularly well-suited for use in automotive lighting applications. Its compatibility and design make it an ideal choice for various vehicle types and lighting systems.

Compatible Vehicles and Lighting Systems

The plug is designed to work with a wide range of vehicles, including trucks and other automotive applications. It is particularly suitable for use with LED lights, aftermarket lighting kits, and other DC-powered accessories commonly used in the automotive industry. This versatility makes it a valuable component for those looking to upgrade or customize their vehicle’s lighting. Specific compatibility includes trucks, SUVs, and other vehicles with standard DC power requirements.

• Trucks, SUVs, and other vehicles.
• LED lights and aftermarket lighting kits.

Alternative Applications

Beyond automotive lighting, the Oracle Lighting 2020-504 can be used in other DC-powered applications. Its reliable performance and ease of use make it suitable for various projects, including electronics and DIY projects. Its ability to securely connect devices makes it a versatile option for anyone needing a dependable DC power connection.

• Electronics projects.
• DIY projects needing a DC power connection.

Installation and Wiring Guide

Installing the Oracle Lighting 2020-504 Female DC Connector Plug is a straightforward process. Following these steps ensures a secure and effective connection for your electrical components.

Tools and Materials Needed

Before you begin, gather the necessary tools and materials to ensure a smooth installation process. Having these items readily available will streamline the installation.

• Wire strippers.
• Crimpers.

Step-by-Step Installation Instructions

Follow these detailed steps to correctly install the Oracle Lighting 2020-504 Female DC Connector Plug.

1. Strip the wires: Use wire strippers to remove the insulation from the wires you will be connecting to the plug. Be careful not to damage the wires themselves.
2. Connect the wires: Insert the stripped wire ends into the appropriate terminals of the connector, ensuring a secure fit.

Troubleshooting and Maintenance

To keep your Oracle Lighting 2020-504 Female DC Connector Plug working properly, follow these troubleshooting tips and maintenance practices.

Common Problems and Solutions

If you encounter any issues, here are some common problems and their solutions.

• Loose connections: Ensure all wire connections are secure. Re-crimp or tighten as needed.

Maintenance Tips and Best Practices

Proper maintenance can extend the life of your connector and ensure reliable performance. Regular checks and preventative measures can help avoid future issues.

• Inspect regularly: Check the plug periodically for any signs of damage or wear.
