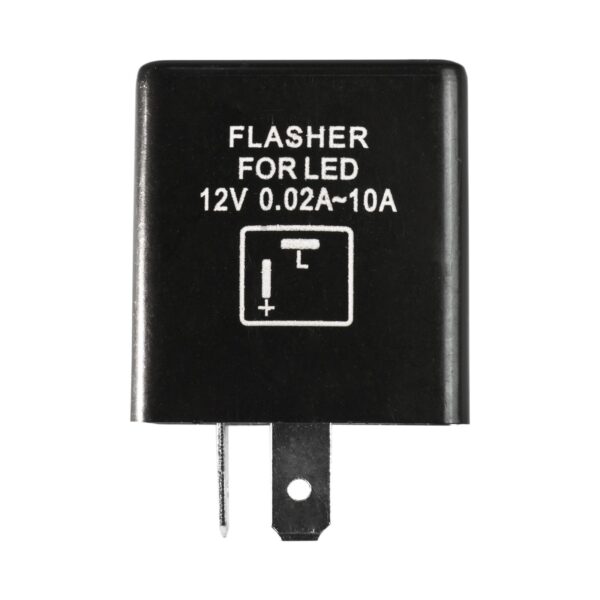

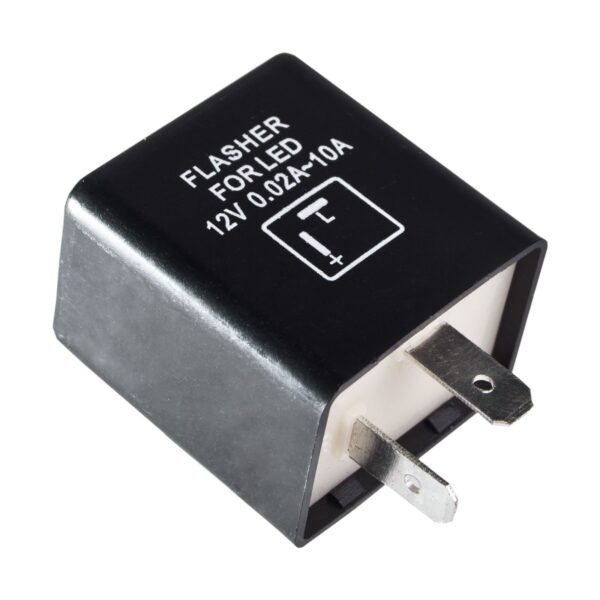

2022-504 – ORACLE LED 2 Pin Relay Flasher

What is the ORACLE 2022-504 LED Flasher Relay?

Overview

The ORACLE 2022-504 LED 2 Pin Relay Flasher is a replacement flasher designed to solve hyperflashing or no-flash issues when using LED turn signal bulbs in vehicles. Many modern vehicles experience this problem because LED lights draw less power than traditional incandescent bulbs, causing the original flasher to misinterpret the lower current draw.

Key Features and Benefits

Corrects Hyperflash

The ORACLE 2022-504 LED flasher relay is engineered to address the issue of hyperflash, which occurs when turn signals blink too rapidly after installing LED bulbs. This is due to the lower power consumption of LEDs compared to traditional incandescent bulbs. By correcting the blink rate, the relay restores turn signal function to factory specifications, ensuring the vehicle operates as intended and maintaining driver safety. The normal blink rate is critical for communicating intentions to other drivers, preventing confusion and potential accidents.

• Feature 1: Normalizes blink rate to factory specifications.
• Benefit: Ensures proper turn signal function.

Plug-and-Play Installation

The ORACLE 2022-504 LED flasher relay is designed for a plug-and-play installation, allowing for a straightforward and hassle-free upgrade. This means no cutting or splicing of wires is required, and the relay directly replaces the existing flasher unit. The simple installation process reduces the time needed for the upgrade and minimizes the potential for installation errors, making it a user-friendly solution for both novice and experienced vehicle owners. This ease of use saves time and simplifies the process of upgrading to LED turn signals.

• Feature 2: Simple installation without modifications.
• Benefit: Reduces installation time.

LED Compatibility

This relay is specifically designed to be compatible with LED bulbs. LED bulbs offer significant advantages over traditional incandescent bulbs, including longer lifespans, reduced energy consumption, and enhanced brightness. Using the ORACLE 2022-504 ensures that the LED bulbs function correctly, preventing issues like hyperflashing or non-functioning turn signals. The relay’s design is optimized to work seamlessly with a variety of LED bulb types, providing a reliable solution for upgrading to LEDs.

• Feature 3: Designed for LED Bulbs.
• Benefit: Ensures proper function and no rapid flashing.

Installation and Compatibility

Installation Instructions

The installation process is simple. First, locate the existing flasher relay in your vehicle. Common locations include under the dashboard, near the steering column, or in the fuse box under the hood. Consult your vehicle’s owner manual for the exact location. Once located, unplug the old flasher relay and replace it with the ORACLE 2022-504 LED flasher relay. Ensure the new relay is securely plugged in. Test the turn signals to confirm proper function. If hyperflashing is still present, double-check the connections. Note that some vehicles may require additional steps; always refer to your vehicle’s specific instructions.

1. Locate the existing flasher relay.
2. Unplug the old flasher.
3. Plug in the ORACLE 2022-504 relay.
4. Test turn signals.

Compatibility

The ORACLE 2022-504 LED flasher relay is designed for vehicles with a 2-pin flasher configuration. It is essential to verify the pin configuration of your vehicle’s existing flasher relay before purchase and installation. This relay is typically compatible with a wide range of vehicles, including many from the following manufacturers. Always verify compatibility before installation by checking your vehicle’s owner’s manual or consulting with a qualified mechanic. Incompatible vehicles will not function correctly with this relay and may experience issues. Compatibility is dependent on the vehicle’s electrical system and flasher relay design.

• List of Vehicle Makes
• Note any vehicles that are NOT compatible.

Specifications and Technical Information

Technical Specifications

The following specifications provide important technical details for the ORACLE 2022-504 LED flasher relay:

• Pin Configuration: 2-Pin
• Voltage: 12V
• Dimensions: length 2 inches, width 1.6 inches, height 1.6 inches
• Operating Temperature
