What is the ORACLE 2030-504 10W Resistor?

Overview and Function

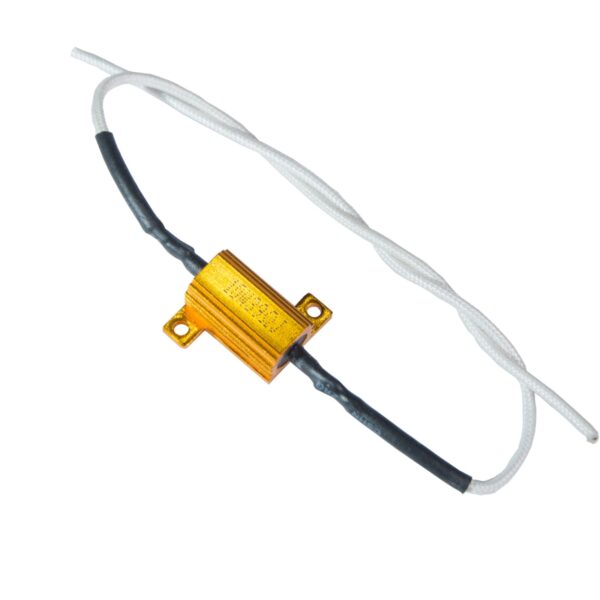

The ORACLE 2030-504 is a 10W/39-Ohm resistor designed to address issues commonly encountered when upgrading or modifying automotive lighting systems. It’s primarily used to counteract the lower resistance of LED or other aftermarket bulbs, which can trigger hyperflashing or cause the vehicle’s computer to incorrectly detect a burned-out bulb. This is a critical component in ensuring proper functionality and preventing error messages after lighting upgrades.

Common Uses and Applications

This resistor is frequently employed to resolve hyperflashing issues in turn signals, tail lights, and brake lights when LED bulbs are installed. Additionally, it prevents dashboard warning lights from illuminating due to the lower power draw of LED bulbs. The ORACLE 2030-504 can be used in various vehicle makes and models, providing a straightforward solution to common LED upgrade problems. Its versatility makes it suitable for a wide range of applications, including headlights, tail lights, and turn signals, making it a valuable component for DIY installers and automotive enthusiasts.

Key Features and Technical Specifications

Aluminum Housing and Heat Dissipation

The ORACLE 2030-504 features an aluminum housing designed to dissipate heat efficiently. This is critical because resistors generate heat when in operation. Effective heat dissipation prevents the resistor from overheating, which can damage the component and reduce its lifespan. Proper mounting on a metal surface is essential to facilitate heat transfer, ensuring the resistor functions reliably over time. The aluminum housing helps to maintain the integrity of the resistor, increasing its durability and performance.

Electrical Characteristics

The ORACLE 2030-504 is engineered with specific electrical characteristics to effectively manage the power demands of automotive lighting systems. These specifications are crucial for the resistor’s proper function.

• Resistance: 39 Ohms
• Power Rating: 10 Watts
• Voltage Compatibility: 12V DC systems

The 39-ohm resistance matches the electrical requirements needed to mimic the load of a standard incandescent bulb. The 10-watt power rating ensures the resistor can handle the current flow without overheating. The 12V DC compatibility is essential for seamless integration into most automotive electrical systems.

Installation and Compatibility Guide

Installation Steps

1. Before installation, disconnect the vehicle’s negative battery cable to prevent electrical shorts.
2. Locate the turn signal or lighting circuit where the LED bulb is installed.
3. Connect the ORACLE 2030-504 in parallel with the LED bulb. This means connecting one wire from the resistor to the positive (+) wire of the bulb and the other wire to the negative (-) wire.
4. Secure the resistor to a metal surface using screws, bolts, or heat-resistant tape to ensure effective heat dissipation.
5. Reconnect the negative battery cable and test the lighting system for proper operation.

Ensure proper connections to prevent malfunctions. The ORACLE 2030-504 is designed with wire leads for easy connection. The aluminum housing needs to be in contact with a metal surface to dissipate heat effectively. This helps to extend the life of the resistor. Verify that the lighting functions correctly after installation, including turn signals and hazard lights. If any issues occur, recheck the connections and mounting.

Compatibility Information

The ORACLE 2030-504 is designed to be compatible with a wide range of vehicles and lighting systems, especially those using LED bulbs. It is particularly well-suited for vehicles that experience hyperflashing or bulb-out warnings after LED upgrades. Compatibility extends to various makes and models, including but not limited to, most cars, trucks, and SUVs with 12V DC electrical systems. Ensure that the resistor is used in parallel with the LED bulb to mimic the load of an incandescent bulb. It may also be suitable for use in some CANbus systems, but compatibility should be verified based on the specific vehicle’s requirements.

Safety and Handling Precautions

Safety Warnings

Always disconnect the vehicle’s battery before installing the ORACLE 2030-504 to prevent electrical shocks or short circuits. The resistor generates heat during operation; avoid touching it directly after use. Ensure the resistor is securely mounted to a metal surface for proper heat dissipation. Avoid any installation or modifications that could compromise the vehicle’s electrical system. If you are unfamiliar with automotive electrical systems, seek professional assistance.

Handling and Mounting Guidelines

Handle the ORACLE 2030-504 with care to avoid damage. The aluminum housing is robust, but avoid dropping or striking the resistor. Mount the resistor on a metal surface to allow for efficient heat dissipation, preventing overheating and extending its lifespan. Use heat-resistant tape, screws, or other suitable mounting methods. Ensure the resistor is not in direct contact with plastic or other heat-sensitive materials. Regularly inspect the resistor for any signs of damage or wear. Properly installed, this resistor will resolve hyperflashing issues and dashboard warnings.
