Base Plate

What is a Base Plate for Towing?

A base plate is a vital component in flat towing setups, serving as the primary connection point between the towing vehicle and the vehicle being towed (often referred to as the dinghy). This allows a vehicle to be safely and securely towed behind another vehicle. Without a base plate, flat towing is not possible. The base plate design allows for the attachment of a tow bar, which provides the direct link for towing. Base plates are generally designed for SUVs, trucks, and some cars, making it easy to convert them for flat towing.

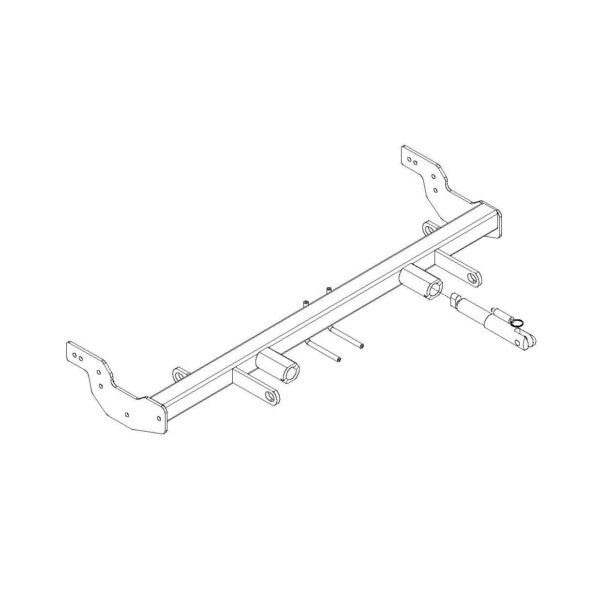

Base Plate Overview

Base plates are designed to bolt directly onto the frame of the vehicle, providing a solid and reliable attachment point for a tow bar. They typically feature two receiver tubes or connection points where the tow bar arms attach. The installation process involves aligning the base plate with the vehicle’s frame, securing it with bolts, and ensuring a tight fit. This design distributes the towing forces evenly, reducing stress on any single point and ensuring safe towing. Base plates integrate with a tow bar to provide a secure connection for towing.

• The base plate integrates with the tow bar through specific attachment points or receiver tubes.
• Base plates are commonly used with SUVs, trucks, and certain car models.

Key Features and Benefits of the BrandX Base Plate

Durable Construction

The BrandX Model Z-500 base plate is constructed from high-strength steel and treated with a protective powder coating, providing superior durability and corrosion resistance. The powder coating ensures that the base plate remains protected from the elements and road debris, extending its lifespan. The robust steel construction is designed to withstand the stresses of towing, providing peace of mind and reliability on every journey.

• Constructed from high-strength steel.
• Features a protective powder coating for corrosion resistance.
• Designed to handle a weight capacity of up to 10,000 lbs.

Easy Installation

The BrandX Model Z-500 is designed for straightforward installation, often requiring no welding and minimal modifications to your vehicle. The custom-fit design ensures a perfect match for your vehicle’s frame, reducing the time and effort needed for installation. Comprehensive instructions and all necessary hardware are included, making the process user-friendly for DIY enthusiasts. While professional installation is an option, most users can successfully install this base plate with basic tools and mechanical skills.

• The design allows for a custom fit for easy installation.
• All necessary mounting hardware is included.
• User-friendly design to simplify installation.

Vehicle Compatibility

The BrandX Model Z-500 base plate is designed to fit a wide range of vehicles. Please check the specific make, model, and year of your vehicle to ensure compatibility. Proper fitment is crucial for both safety and optimal performance. The design is custom-engineered to match your vehicle’s frame, preventing any issues during the towing process.

• 2018-2020 Ford F-150
• 2019-2022 Ram 1500
• 2017-2021 Jeep Grand Cherokee

Specifications and Dimensions

Base Plate Dimensions

These dimensions are crucial to ensure proper fit and to give you an understanding of the base plate size. Please measure your vehicle accordingly and consult our fit guides.

• Length: 43.5 inches
• Width: 19.5 inches
• Height: 6.5 inches

Additional Specifications

These specifications provide key details about the base plate’s composition, weight capacity, and the materials used.

• Weight: 45 lbs
• Material: High-strength steel
• Finish Type: Black powder coat
• Certifications/Standards: Meets SAE J684 towing standards

Installation Guide and Tips

Step-by-Step Installation Instructions

Follow these steps for an easy and successful installation.

1. Step 1: Prep the Vehicle Frame: Clean and inspect the vehicle’s frame where the base plate will be installed. Ensure the area is free of rust, debris, and any obstructions that could interfere with the installation.
2. Step 2: Mount the Base Plate: Align the base plate with the vehicle’s frame. Secure it using the provided bolts and hardware. Refer to the detailed instructions for bolt torque specifications.
3. Step 3: Connect the Tow Bar: Attach the tow bar to the base plate. Follow the tow bar manufacturer’s instructions for securing it to the base plate.
4. Step 4: Test and Finalize: Double-check all connections and hardware. Test the towing setup in a controlled environment to ensure it functions correctly before hitting the road.

Installation Tips and Advice

Here are some tips to help you along the way.

• Use of a torque wrench to ensure bolts are tightened to the correct specifications.
• If you are unsure, seek professional help to ensure your safety and the safety of your vehicle.
