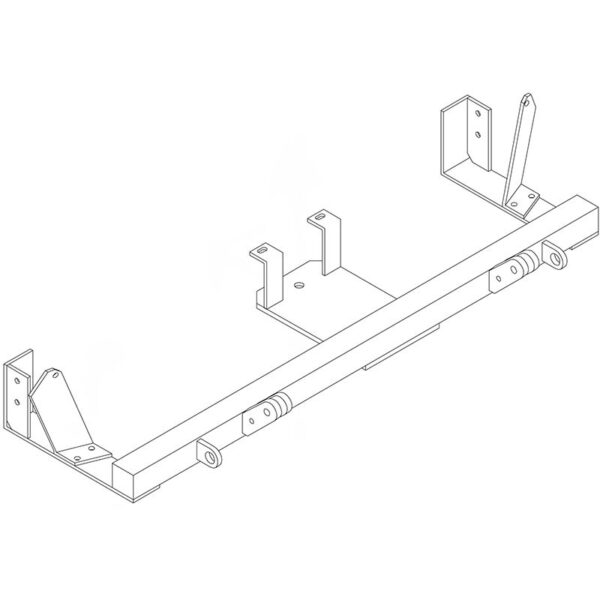

Base Plate

Base Plate: What It Is and Why You Need One

What is a Base Plate?

A base plate is a crucial component in a flat towing setup, designed to securely connect a tow bar to the frame of your vehicle. This connection allows you to safely tow your truck or SUV behind a motorhome or another towing vehicle with all four wheels on the ground. The base plate provides the necessary attachment points for the tow bar, ensuring a stable and reliable link between the two vehicles.

• Connects to the vehicle’s frame
• Provides attachment points for the tow bar
• Allows for flat towing (four-wheels-down towing)

Why Choose a Base Plate?

Choosing a base plate for towing offers significant advantages over other methods, primarily in terms of safety, stability, and ease of use. Base plates are engineered to withstand the stresses of towing, providing a robust and secure connection that minimizes the risk of accidents. The design of a base plate allows for a balanced distribution of forces, reducing strain on your vehicle and the towing vehicle.

• Safety and Stability during towing
• Durability and Longevity
• Ease of Use and Installation

Key Features and Technical Specifications

Construction and Materials

Our heavy-duty base plates are constructed from high-strength steel, ensuring maximum durability and reliability under demanding towing conditions. The use of precision welding techniques guarantees the structural integrity of the base plate, providing a secure and long-lasting connection. To protect against corrosion and the elements, the base plates are finished with a durable powder-coating, extending their lifespan and maintaining their appearance. This construction method adheres to industry standards for safety and longevity.

• Material: Heavy-Duty Steel
• Welding: Precision Welding for Durability
• Coating: Powder-coated for corrosion resistance

Dimensions and Compatibility

The dimensions of our base plate are as follows: 47 inches in length, 19 inches in width, and 8 inches in height. These dimensions ensure a proper fit and optimal performance. Please refer to our compatibility chart to verify that the base plate is suitable for your specific vehicle make and model, as compatibility can vary. It is important to consult the manufacturer’s guidelines for proper installation and use.

• Length: 47 inches
• Width: 19 inches
• Height: 8 inches
• Vehicle compatibility

Installation and Maintenance

Installation Guide

Installing a base plate requires careful attention to detail and adherence to the manufacturer’s instructions. The process typically involves preparing the vehicle frame, attaching the base plate brackets, securing the base plate to the brackets, and completing the necessary wiring and connections. Always ensure that the vehicle is parked on a level surface and that you have the appropriate tools, such as a wrench set, a torque wrench, and potentially a drill. If you are unsure about any step, seek professional assistance.

1. Step 1: Prepare Vehicle Frame
2. Step 2: Attach Base Plate Brackets
3. Step 3: Secure Base Plate to Brackets
4. Step 4: Wiring and Connections

Maintenance Tips

Regular maintenance is crucial to ensure the longevity and safety of your base plate. Perform periodic inspections to check for any signs of damage, such as cracks, corrosion, or loose bolts. Clean the base plate regularly to remove any debris or dirt that could compromise its performance. If applicable, lubricate moving parts as recommended by the manufacturer. By following these maintenance tips, you can extend the life of your base plate and ensure safe towing.

• Regular inspection for damage
• Cleaning to remove debris
• Lubrication (if applicable)

Safety Considerations

Important Safety Notes

Prioritizing safety is essential when towing. Always adhere to the manufacturer’s weight capacity and towing speed recommendations. Ensure that the load is evenly distributed to maintain stability. Regularly inspect the base plate, tow bar, and all other components for wear and tear. Before each towing trip, verify that all connections are secure and that the lights and signals are functioning correctly. These safety measures are essential for safe and responsible towing practices.

• Weight Capacity
• Towing Speed
• Regular Inspections

Compliance and Regulations

Our base plates are designed to meet or exceed relevant safety standards. However, it is your responsibility to ensure that the base plate and your towing setup comply with all applicable local, state, and federal regulations. Adherence to these standards is essential for ensuring the safety of yourself and others on the road.

• DOT
• SAE
