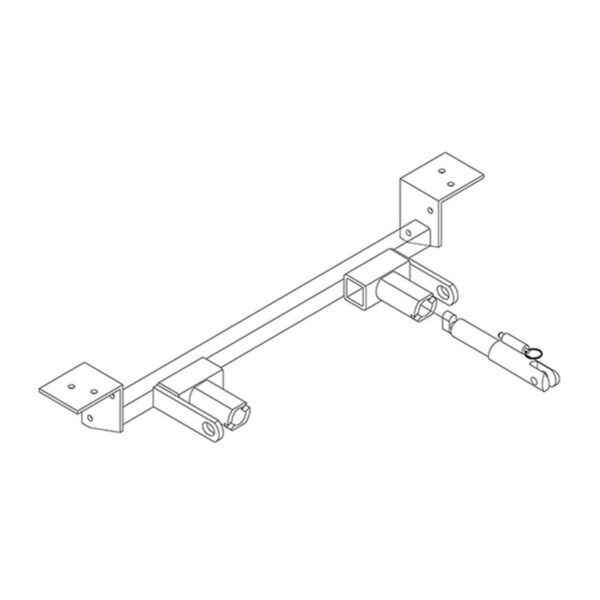

Base Plate

Base Plate Specifications and Technical Information

Dimensions and Measurements

The X-Series base plate is meticulously designed to provide a secure and reliable connection for towing. The dimensions, designed to ensure an optimal fit, vary slightly based on the specific vehicle model. As a general reference, measurements include a length of approximately 30 inches, a width of 8 inches, and a height of 6 inches. These measurements are approximate and can vary. Detailed specifications for your specific vehicle model are available in the product manual. Mounting points are strategically placed, ensuring the even distribution of towing forces across the vehicle’s frame. The distance between the mounting holes is approximately 20 inches, but this varies based on vehicle specifications. The robust design of the X-Series base plate is built to accommodate various tow bar styles, enhancing compatibility.

Weight Capacity

The X-Series base plate is engineered to handle substantial towing loads, providing a safe and reliable towing experience. The maximum towing capacity is typically 10,000 pounds, although this can vary based on the specific vehicle and model. Always ensure that the total weight of the towed vehicle, including any cargo, does not exceed the maximum towing capacity of the base plate, the tow bar, and the towing vehicle. Exceeding this capacity can compromise the safety of the towing operation. Ensure you check the towing capacity of all related equipment to verify they are all compatible. The weight capacity of the X-Series base plate is compliant with industry standards, ensuring it meets all relevant safety regulations. Never exceed the maximum towing capacity, as doing so can lead to equipment failure and a dangerous situation.

Included Hardware

The X-Series base plate package comes complete with all necessary hardware to ensure a straightforward installation process. The hardware kit includes high-strength bolts, washers, and mounting brackets. The specific hardware provided is designed to fit your vehicle’s make and model. The X-Series kit also includes detailed instructions and diagrams to guide you through each step of the installation process. Ensure all components of the hardware kit are present before starting the installation. Using all provided hardware is essential for maintaining the integrity and safety of the towing setup. The following are included in the X-Series base plate hardware kit: High-Strength Bolts, Washers, Mounting Brackets, Safety Chain Attachments and Installation Guide. Always use the included hardware; do not substitute with other parts.
