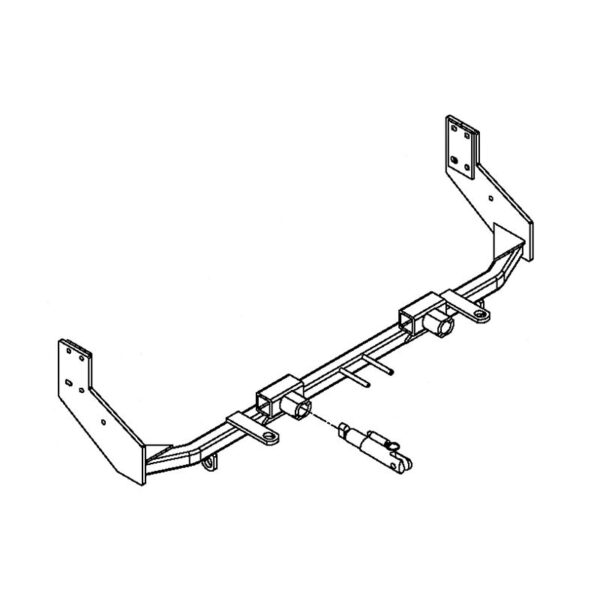

Base Plate

The Ultimate Guide to BrandX Base Plates

A BrandX base plate is a crucial component for safely and effectively flat towing a vehicle. Designed for RV owners, individuals needing to tow a vehicle, and anyone seeking a reliable towing solution, this base plate connects directly to your vehicle’s frame, providing a secure attachment point for a tow bar. This setup allows the vehicle to be towed with all four wheels on the ground, a method known as flat towing. This is a popular choice for its convenience and ease of use, ensuring your vehicle arrives safely at your destination.

What is a Base Plate?

A base plate is a structural component that attaches directly to the chassis of a vehicle. It serves as the primary connection point for a tow bar, which then connects to the towing vehicle. The base plate is engineered to withstand the stresses of towing, ensuring a secure and stable connection. Base plates are vehicle-specific, ensuring a precise fit and optimal performance. When choosing a base plate, it’s essential to select one that is specifically designed for your vehicle’s make and model.

Key Benefits of the BrandX Base Plate

• Durability and Strength: The BrandX Base Plate is constructed from high-strength steel, offering exceptional durability and resistance to wear and tear. The robust construction ensures a reliable towing connection, capable of withstanding the rigors of various road conditions. The steel is powder-coated for enhanced corrosion resistance, extending the lifespan of the base plate.
• Easy Installation: The BrandX Base Plate is designed for a straightforward installation process. While professional installation is always recommended, the design allows for relatively easy DIY installation with basic tools. Detailed instructions and all necessary hardware are included, streamlining the setup process.
• Vehicle Compatibility: The BrandX Base Plate is engineered to fit a wide range of vehicles. Always consult the product specifications to ensure compatibility with your specific vehicle make and model. Check the provided fit guide for the most up-to-date vehicle compatibility information.

Key Features and Technical Specifications

Construction and Materials

The BrandX Base Plate is crafted from high-strength steel, chosen for its durability and ability to withstand significant towing forces. The steel undergoes a meticulous manufacturing process to ensure precision and reliability. A premium powder-coated finish is applied to provide superior corrosion resistance, protecting the base plate from the elements and extending its service life. This finish also adds an extra layer of protection against scratches and abrasions, keeping the base plate in top condition.

Dimensions and Weight

The BrandX Base Plate has the following dimensions: Length: 51.5 inches, Width: 16.25 inches, Height: 10.25 inches. The weight of the base plate is approximately 45 lbs. These specifications may vary slightly depending on the specific model and vehicle application. Always refer to the product packaging for the most accurate measurements and weight information.

Compatibility

The BrandX Base Plate is designed to be compatible with a wide array of vehicle makes and models. This includes, but is not limited to, various models from Ford, Jeep, and Chevrolet. Always verify the specific compatibility of the base plate with your vehicle’s make, model, and year before purchase and installation. Compatibility details can be found on the product packaging and in the accompanying documentation.

Installation Guide

Step-by-Step Installation Process

1. Step 1: Pre-installation preparations: Gather all necessary tools and carefully read the installation manual. Identify all included components and ensure they are present. Place the vehicle on a level surface, and engage the parking brake. Disconnect the negative battery cable to prevent any electrical shorts during installation.
2. Step 2: Attaching the base plate to the vehicle frame: Position the base plate components against the vehicle frame according to the instructions. Secure the base plate using the provided bolts, nuts, and washers. Torque the bolts to the manufacturer’s recommended specifications.
3. Step 3: Connecting the base plate to the tow bar: Once the base plate is securely attached, connect the tow bar to the base plate. Ensure the tow bar is properly aligned and locked into position. The tow bar should be designed for use with your specific base plate model.
4. Step 4: Safety Checks: After installation, perform a thorough safety check. Verify all bolts are properly torqued, and all connections are secure. Inspect the base plate and tow bar for any signs of damage or misalignment. Test the system by gently pulling on the tow bar to ensure a stable connection.

Tools and Materials Required

The following tools and materials are typically required for the installation of a BrandX Base Plate: a socket wrench set, torque wrench, various wrenches and screwdrivers, safety glasses, work gloves, and a level. The base plate kit should include all necessary hardware, such as bolts, nuts, and washers. Consult the instruction manual for any specific tools recommended for your vehicle model.

Care and Maintenance

Cleaning and Inspection

Regular cleaning and inspection of your BrandX Base Plate are essential for ensuring its longevity and safe operation. Rinse the base plate with fresh water after each use, especially after towing in wet or salty conditions. Use a mild soap and water solution to remove any dirt or debris. Periodically inspect the base plate for any signs of rust, corrosion, or damage. Pay close attention to the welds and connection points. If any damage is found, have the base plate repaired or replaced immediately.

Preventative Maintenance

Regular inspections for wear and tear are crucial for maintaining the integrity of your base plate. Check the mounting bolts for proper torque, and ensure all connections remain secure. Examine the powder-coated finish for any chips or scratches, as these can expose the metal to corrosion. If any damage is present, address it promptly to prevent further deterioration. Lubricate moving parts, if applicable, as directed in the manufacturer’s instructions. Adhering to a preventative maintenance schedule will help to extend the life of your base plate and ensure its continued safe operation.

Safety Information

Safety Precautions

Always follow the manufacturer’s instructions during installation and use. Ensure the base plate is properly installed and securely attached to both the vehicle and the tow bar. Never exceed the maximum towing weight capacity specified for the base plate. Regularly inspect the base plate and tow bar for any signs of damage or wear and tear. Always use safety chains, according to industry standards, when towing. Ensure that all lights and signals on both vehicles are functioning correctly. Consider professional installation if you are not familiar with vehicle repair.

Weight Capacity

The BrandX Base Plate is designed to meet or exceed industry standards. Always adhere to the maximum towing weight capacity specified by the manufacturer. Never exceed the weight capacity, as this can lead to damage to the base plate and potentially cause an accident. The maximum towing weight capacity is clearly stated on the product packaging and in the accompanying documentation. It’s essential to verify this capacity and ensure it is suitable for the vehicle you are towing.

Warnings

Improper installation or use of the BrandX Base Plate can lead to serious injury or damage. Never modify the base plate or its components. Always consult a qualified mechanic if you are unsure about any aspect of the installation or use of the base plate. Ensure that all safety precautions are followed at all times. Failure to adhere to safety warnings and instructions can result in accidents and void any warranty. Always prioritize safety when towing.
