Base Plate

What is a Base Plate for a Tow Bar?

A base plate, also known as a tow bar base plate or a baseplate, is a crucial component in flat towing—a method of towing a vehicle with all four wheels on the ground. Its primary function is to provide a secure and stable connection point between the towed vehicle and the tow bar, which in turn attaches to the towing vehicle. This setup allows the towed vehicle to follow the towing vehicle smoothly and safely.

Overview and Functionality

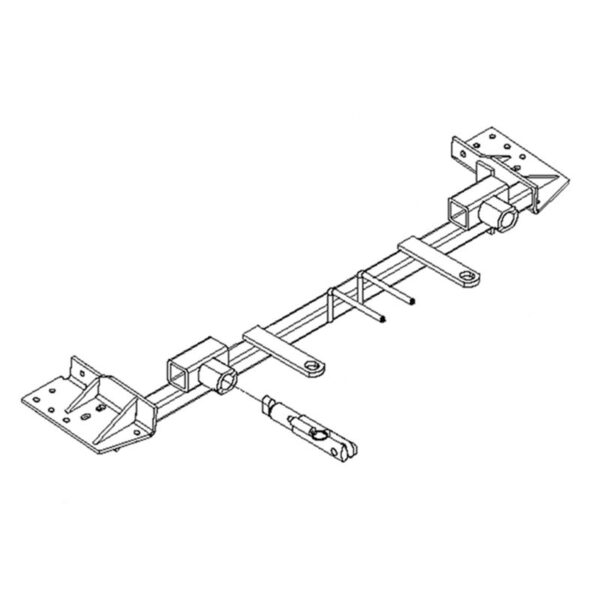

The base plate is typically a robust metal structure that mounts directly to the chassis of the towed vehicle. It usually consists of two main components: the mounting brackets and the attachment points for the tow bar. These brackets are specifically designed to fit the make and model of the vehicle, ensuring a secure and precise fit. The attachment points, often in the form of removable tabs or fixed brackets, are where the tow bar connects. When properly installed, the base plate evenly distributes the towing forces across the vehicle’s frame, which is crucial for maintaining structural integrity and safe towing. The connection allows the towed vehicle to move in unison with the towing vehicle, including steering, braking, and turning. (Example diagram of base plate components)

Base Plate Components

A standard base plate comprises several key components designed to ensure a secure and efficient towing experience. These components include:

• Mounting Brackets: Custom-designed to fit the vehicle’s frame, these brackets provide the primary attachment points for the base plate.
• Attachment Points: These are the connection points for the tow bar. They can be either removable tabs or fixed brackets, offering flexibility depending on the base plate’s design.
• Hardware: High-grade bolts, nuts, and washers are included to securely fasten the base plate to the vehicle’s chassis. The quality of the hardware is crucial for maintaining the integrity of the connection.
• Safety Chains/Cables: Many base plates include attachment points for safety chains or cables, which act as a secondary safety measure in case of a primary connection failure.
• Wiring Connectors: Some base plates integrate connectors for vehicle lighting. These connect the towed vehicle’s lights to the towing vehicle’s electrical system, ensuring proper signaling.

Key Features and Benefits of a Base Plate

Choosing a base plate offers several advantages for a safer and more reliable towing experience, including improved safety, convenience, and vehicle protection.

Durability and Construction

Base plates are typically constructed from high-strength steel, often treated with a durable powder-coat finish. This combination provides exceptional strength, resistance to rust, and long-term durability, even under harsh weather conditions and frequent use. The powder-coat finish acts as a protective barrier against corrosion, ensuring the base plate can withstand the elements. In addition, some base plates are rigorously tested and certified to meet specific safety standards, providing assurance of their ability to handle the stresses of towing. The choice of material and construction methods directly impacts the longevity and performance of the base plate, making it a reliable investment for towing needs.

Easy Installation

Most base plates are designed for relatively straightforward installation, often allowing for a DIY approach. While professional installation is an option, many vehicle owners can install a base plate using basic tools and following the manufacturer’s instructions. The installation process generally involves attaching the mounting brackets to the vehicle’s frame and securing them with bolts. The process usually takes a few hours, depending on the vehicle model and the base plate design. The ease of installation makes base plates an accessible and convenient solution for those looking to flat tow their vehicles. However, if you’re uncomfortable working on your vehicle, seeking professional help is always recommended.

Vehicle Compatibility and Custom Fit

Base plates are engineered to provide a custom fit for specific vehicle makes and models. This precise fit is critical for ensuring proper alignment, secure attachment, and optimal towing performance. Manufacturers design base plates to match the vehicle’s frame, mounting points, and dimensions. Vehicle owners can easily determine compatibility by consulting the manufacturer’s website or product information, where they can often find a vehicle compatibility chart. Entering the make, model, and year of the vehicle will display compatible base plates. Always confirm compatibility before purchasing to ensure a seamless and safe installation.

Safety Features

Base plates are designed with multiple safety features to enhance towing security and protect both the towed and towing vehicles. Secure attachment points are a core safety feature. These are engineered to withstand the forces of towing and prevent separation during transit. The robust construction and reliable attachment are essential for maintaining a stable connection. Many base plates include integrated safety chains or cables. These serve as a backup measure to prevent complete detachment in case the primary connection fails. Properly installed safety chains ensure that the towed vehicle remains connected to the towing vehicle, mitigating potential hazards. Furthermore, base plates often distribute towing forces evenly across the vehicle’s frame, reducing stress on any single point. This even distribution minimizes the risk of damage to the vehicle’s structure. These features contribute to a safer and more reliable towing experience.

Installation Guide: How to Install a Base Plate

Installing a base plate is a task that many vehicle owners can complete with the proper tools and guidance. Always consult the manufacturer’s instructions for your specific base plate model, as procedures may vary. Be sure to wear safety glasses and gloves during the installation process.

Tools and Materials Needed

Before you start, gather all the necessary tools and materials. This typically includes:

• Base plate kit
• Wrenches and sockets (metric and/or SAE)
• Torque wrench
• Drill (if any drilling is required)
• Safety glasses and gloves
• Jack and jack stands
• Measuring tape
• Marker
• Vehicle-specific instructions

Step-by-Step Installation Instructions

Follow these general steps. Always refer to the manufacturer’s instructions for specific details. These steps are an example only:

1. Prepare the Vehicle: Park the vehicle on a level surface, set the parking brake, and disconnect the negative battery cable.
2. Access the Frame: Depending on the vehicle, you may need to raise it using a jack and secure it with jack stands. Consult your vehicle’s owner’s manual for proper jacking points.
3. Locate Mounting Points: Identify the mounting points on the vehicle’s frame where the base plate will attach. These are usually pre-drilled holes, but some models may require drilling.
4. Attach the Brackets: Position the base plate brackets onto the frame, aligning them with the mounting points.
5. Secure with Hardware: Insert the provided bolts and washers through the brackets and frame. Hand-tighten the bolts initially.
6. Torque the Bolts: Using a torque wrench, tighten the bolts to the manufacturer’s specified torque settings. This is crucial for a secure and safe installation.
7. Check and Double-Check: Verify that all bolts are securely tightened and that the base plate is properly aligned.
8. Reinstall Components: Reinstall any removed vehicle components, such as the bumper or undercarriage panels.
9. Connect Wiring: If applicable, connect any wiring for the vehicle’s lights according to the instructions provided with your base plate kit.
10. Lower the Vehicle: Carefully lower the vehicle.
11. Final Inspection: Reconnect the negative battery cable and perform a final inspection to ensure all connections are secure and that everything looks correct.

Post-Installation Checklist

After the installation, ensure everything is correctly installed and safe. The checklist should include:

• Bolt Tightness: Double-check that all bolts are torqued to the manufacturer’s specifications.
• Alignment: Confirm that the base plate is correctly aligned and does not interfere with any vehicle components.
• Safety Chains: Ensure that the safety chains or cables are properly attached and have sufficient slack.
• Lights: Test the vehicle’s lights to ensure they are functioning correctly.
• Test Drive: Perform a short test drive to confirm that the base plate and tow bar are functioning correctly.

Choosing the Right Base Plate: Compatibility and Selection

Selecting the correct base plate is critical for safe and effective towing. It’s essential to consider several factors to ensure the base plate is compatible with your vehicle and suitable for your towing needs.

Vehicle Compatibility Chart

A vehicle compatibility chart is an essential tool for identifying the correct base plate for your vehicle. Most base plate manufacturers provide charts on their websites or in their product literature. To use the chart, you’ll need to provide the vehicle’s make, model, and year. The chart will then list the base plates that are compatible with your vehicle. Verify the fit by cross-referencing the base plate part number with the vehicle’s specifications. Always check the compatibility chart provided by the manufacturer before purchasing.

Towing Capacity and Ratings

Matching the base plate’s towing capacity to the towed vehicle’s weight is critical for safety. The base plate’s towing capacity should always meet or exceed the gross vehicle weight (GVW) of the towed vehicle. Exceeding the base plate’s capacity can lead to damage or failure of the base plate. Check the manufacturer’s specifications for both the base plate and the towed vehicle. Also, consider the towing capacity of the towing vehicle. The base plate is only one part of the overall towing system, so the other components must also be rated to handle the load. Make sure to adhere to all the relevant towing capacity ratings to ensure safe towing. These are often provided by the manufacturer, and failure to do so could lead to serious accidents.

Considerations for Usage and Towing Scenarios

Different towing scenarios may call for particular base plate features. For short trips or occasional use, a standard base plate may suffice. However, for long-distance or frequent towing, it might be beneficial to consider a base plate with enhanced durability or corrosion resistance. If you plan to tow off-road, look for a base plate specifically designed for rugged terrain. This type of base plate will provide additional reinforcement and higher ground clearance. When considering features, assess how they align with your anticipated use to ensure the base plate meets all your towing requirements. Choose the plate that gives you the right balance of performance, durability, and safety.

Maintenance and Care for Your Base Plate

Regular maintenance is crucial for extending the life of your base plate and ensuring safe towing operations. Proper maintenance will help prevent wear and tear and identify any potential issues before they escalate. Following these maintenance tips can help keep your base plate in excellent condition.

Regular Inspection

Inspect your base plate before each towing trip and periodically throughout the towing season, as well. Look for any signs of wear, damage, or corrosion. Check the mounting hardware for any loose bolts or nuts. Inspect the attachment points for cracks, deformation, or excessive wear. Also, check the safety chains and wiring connections to ensure they are in good condition. Any issues should be addressed immediately. A thorough inspection can help identify problems early, preventing more significant issues down the road. Make it a habit to inspect your base plate regularly to ensure everything is safe and in good working order.

Cleaning and Lubrication

Clean your base plate regularly to remove dirt, debris, and road salt. Use a mild soap and water solution for cleaning. Avoid using harsh chemicals that could damage the finish. After cleaning, rinse the base plate thoroughly and allow it to dry. Lubricate any moving parts, such as the attachment points, to prevent rust and ensure smooth operation. Use a quality lubricant designed for automotive applications, and apply it according to the manufacturer’s recommendations. Proper cleaning and lubrication can help prevent corrosion, maintain functionality, and extend the life of your base plate.

Storage Tips

When not in use, store your base plate in a dry, protected environment. Remove the base plate from the vehicle if you don’t plan to use it for an extended period. Store the base plate indoors, away from direct sunlight and extreme temperatures, to prevent corrosion and deterioration. If indoor storage is not possible, cover the base plate with a protective cover. Regularly inspect the base plate and ensure that all components are clean and dry before storing it. Proper storage will help protect the base plate from the elements and extend its lifespan.
