Base Plate

What is a Base Plate? Your Guide to Tow Bar Connections

Definition and Purpose

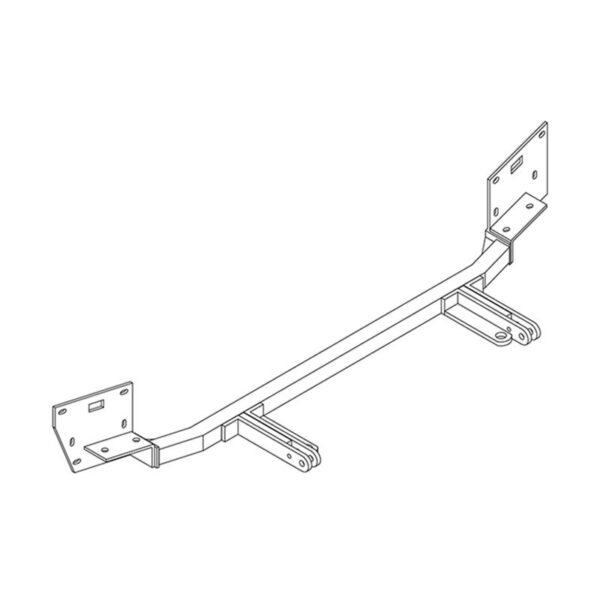

A base plate is a crucial component in flat towing, serving as the primary connection point between a towed vehicle and a tow bar. It’s a custom-designed bracket that bolts directly onto the frame of the vehicle being towed, enabling a secure and stable link to the tow bar.

Components of a Base Plate System

A complete base plate system includes the base plate itself, which is specifically engineered to fit the vehicle’s make and model. It also comprises connection points where the tow bar attaches, and all necessary hardware such as bolts, brackets, and sometimes wiring for the towed vehicle’s lights. These components work together to ensure a safe and reliable towing experience.

Key Features & Benefits of Base Plates

Enhanced Safety and Security

Base plates significantly enhance towing safety by providing a robust and secure connection between the towed vehicle and the tow bar. This secure connection minimizes the risk of detachment during transit, especially on uneven roads or during sharp turns. A well-installed base plate system ensures the towed vehicle moves in sync with the towing vehicle, reducing the likelihood of accidents caused by improper connections or sudden movements.

• Secure Connection Points
• Reduce the Risk of Detachment

Custom Fit and Vehicle Compatibility

Base plates are custom-designed to fit specific vehicle makes and models, ensuring optimal performance and ease of installation. This custom fit minimizes the need for modifications, providing a seamless integration with the vehicle’s frame. The vehicle-specific design ensures the base plate aligns perfectly with the vehicle’s structural components, maximizing its effectiveness and longevity.

• Vehicle Specific Design
• Easy Installation

Durability and Longevity

Base plates are typically constructed from high-strength steel, chosen for its durability and ability to withstand significant towing forces. The manufacturing process often includes protective coatings, such as powder-coating or e-coating, to resist corrosion and wear. These coatings extend the base plate’s lifespan and maintain its structural integrity over time, even when exposed to harsh weather conditions and road salt.

Types of Base Plates and Considerations

Material

Base plates are usually made from robust materials like high-strength steel due to their strength and ability to endure significant towing stresses. Steel is a preferred material because it can withstand wear and tear, providing long-lasting reliability. The choice of steel, along with the quality of manufacturing and protective coatings, influences the base plate’s resistance to corrosion and damage, guaranteeing that it endures diverse weather conditions and continuous use. Always refer to industry standards for material specifications to ensure that the base plate meets safety and performance requirements.

Installation

Installation options typically include bolting and welding, with bolting being the more common method due to its ease and non-permanent nature. Bolting a base plate involves attaching it to the vehicle’s frame using bolts that fit pre-drilled holes. Welding provides a more permanent and potentially stronger connection, involving fusing the base plate to the frame. The choice between bolting and welding often depends on the vehicle type, the base plate design, and personal preference. Always follow the manufacturer’s instructions and consider professional installation to ensure safety and structural integrity.

• Bolting
• Welding

How to Choose the Right Base Plate for Your Vehicle

Vehicle Compatibility

Selecting a base plate specifically designed for your vehicle’s make, model, and year is crucial. This ensures a perfect fit and optimal performance. Incorrectly matched base plates can lead to installation problems, reduced towing capacity, and safety risks. Consult the manufacturer’s website, product catalogs, or online compatibility tools to verify that the base plate is compatible with your vehicle. This guarantees a secure and effective towing setup, crucial for a safe journey.

• Make and Model
• Year

Weight Capacity and Towing Needs

Determining the correct weight capacity is essential to ensure the base plate can safely handle your towing requirements. This involves knowing the gross vehicle weight of the towed vehicle, including any cargo, passengers, or added equipment. The base plate’s weight capacity should match or exceed the total weight being towed. Exceeding the weight capacity can lead to damage or failure of the base plate, potentially causing accidents. Always refer to the base plate’s specifications and the manufacturer’s recommendations to ensure safe and compliant towing practices.

Installation and Maintenance

Installation Steps

Follow these general steps when installing a base plate. Remember to consult the manufacturer’s specific instructions for your model, as procedures vary by vehicle and base plate design. Incorrect installation can compromise safety and performance, so take your time and ensure each step is completed carefully. If you are not comfortable, consider professional installation.

1. Step 1: Preparation: Gather all necessary tools and equipment, including wrenches, sockets, and any hardware provided with the base plate kit. Ensure the vehicle is parked on a level surface and the ignition is off, with the parking brake engaged.
2. Step 2: Mount the base plate to the vehicle frame: Align the base plate with the vehicle’s frame, typically using pre-drilled holes. Secure the base plate using the provided bolts, ensuring they are tightened to the manufacturer’s specified torque. Use a torque wrench to avoid over-tightening or under-tightening.
3. Step 3: Secure the attachments: Double-check that all bolts are securely tightened and that the base plate is firmly attached to the frame. Connect any wiring for the towed vehicle’s lights, if applicable. Test the towing setup before hitting the road.

Maintenance and Care Tips

Regular maintenance ensures that your base plate remains in good condition and continues to perform reliably. Following these tips will extend its lifespan and ensure safe towing.

• Regular cleaning: Clean the base plate regularly to remove dirt, debris, and road salt, especially during winter months. Use mild soap and water, and avoid abrasive cleaners that can damage the finish.
• Inspection for damage: Inspect the base plate regularly for any signs of damage, such as cracks, rust, or loose bolts. Check the connection points for wear and tear. Address any issues promptly to prevent them from escalating.

Conclusion

Base plates are essential for anyone who wants to flat tow a vehicle safely and efficiently. They offer a secure connection to the tow bar, ensuring stability and reducing the risk of detachment. By understanding the different types of base plates, their features, and how to choose the right one for your vehicle, you can significantly improve your towing experience. Always prioritize safety, follow the manufacturer’s instructions, and perform regular maintenance to ensure your base plate performs as expected. Consider your specific towing needs and vehicle specifications when making your selection.
