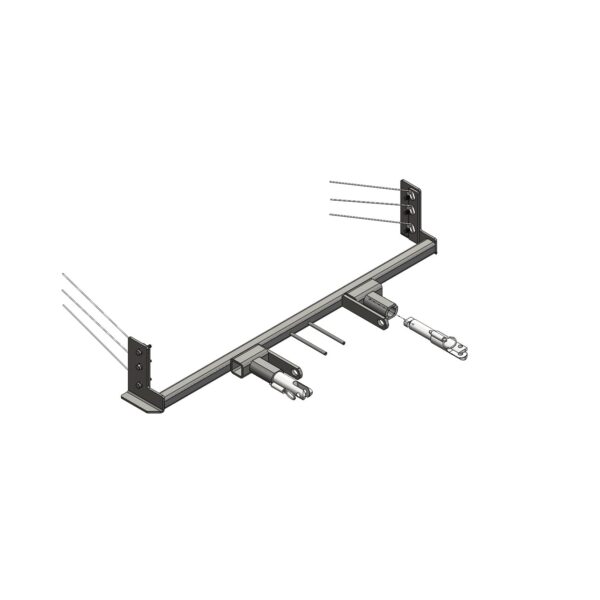

Base Plate

What is a Base Plate and Why Do You Need One?

A base plate, also known as a tow bar base plate, is a crucial component in a flat towing system. It is a custom-designed metal structure that bolts directly to the frame of your vehicle. Its primary function is to provide a secure and robust attachment point for the tow bar, which in turn connects your vehicle to the towing vehicle (e.g., a recreational vehicle or another car).

Defining a Base Plate

A base plate is a vehicle-specific bracket system designed to be permanently mounted to the chassis of a vehicle. This system provides the necessary points for connecting a tow bar, enabling the vehicle to be towed safely on all four wheels.

The Role of a Base Plate in Towing

The base plate acts as the interface between your vehicle and the tow bar. It’s engineered to withstand the stresses of towing, ensuring that the vehicle remains securely connected to the towing vehicle during transit. Without a properly installed base plate, flat towing is not possible.

Benefits of Using a Base Plate

Utilizing a base plate offers several advantages. Firstly, it enhances safety by providing a reliable connection point, minimizing the risk of separation during towing. Secondly, it simplifies the towing process, allowing for quick and easy attachment and detachment of the tow bar. Finally, a well-designed base plate can help protect your vehicle’s frame from damage that could occur from improper towing methods.

Choosing the Right Base Plate

Vehicle Compatibility and Fitment

Base plates are designed to be vehicle-specific, meaning they are engineered to fit a particular make, model, and sometimes even specific year ranges. This ensures that the base plate integrates seamlessly with your vehicle’s frame, providing a secure and proper fit. Before purchasing, it is critical to verify the base plate’s compatibility with your vehicle, consulting the manufacturer’s guidelines for accurate fitment.

Materials and Construction

Base plates are typically constructed from high-strength steel or aluminum. Steel offers superior strength and durability, making it a reliable option for heavy-duty towing applications. Aluminum base plates are lighter, which can improve fuel efficiency and reduce strain on the towing vehicle. However, aluminum may be less durable than steel under extreme conditions. Both materials are often treated with corrosion-resistant coatings to protect against rust and environmental damage.

Key Features to Consider

Several features can enhance the functionality and ease of use of a base plate. Removable or folding tabs allow for easy access to the vehicle’s front end when the tow bar is not connected, preserving the vehicle’s aesthetics. Ease of installation is also a key consideration; look for base plates that come with clear instructions and all necessary hardware. Safety certifications from recognized organizations like SAE International provide assurance that the base plate meets stringent safety standards.

Base Plate Installation Guide

Preparation and Tools

Before you begin, gather the necessary tools, including a wrench set, socket set, torque wrench, drill, and potentially a cutting tool, depending on your vehicle and base plate model. Read the manufacturer’s installation instructions thoroughly. Park the vehicle on a level surface, engage the parking brake, and disconnect the negative battery cable to prevent electrical shorts.

Step-by-Step Installation Instructions

Installation steps usually involve the following stages: First, identify the mounting points on your vehicle’s frame. Next, attach the base plate brackets to these points, securing them with the provided hardware. Tighten all bolts to the manufacturer’s specified torque settings using a torque wrench to ensure a secure and lasting fit. If necessary, trim or modify the vehicle’s fascia or undercarriage components to accommodate the base plate. Finally, double-check all connections and ensure that the base plate is securely fastened before testing. Always consult the manufacturer’s instructions for precise details specific to your base plate model.

Post-Installation Checks and Maintenance

After the installation, inspect all connections to ensure that they are properly tightened. Examine the base plate regularly for signs of wear or damage, such as corrosion or loose bolts. Lubricate any moving parts as recommended by the manufacturer. Check the tow bar connection points before each towing session to ensure they are clean and properly aligned. Regular maintenance and inspections are essential for ensuring the safe and reliable operation of your base plate and towing system.

Safety and Technical Specifications

Weight Capacity and Towing Limits

It is critical to adhere to the weight capacity specified for both the base plate and your vehicle. Exceeding these limits can lead to serious safety risks, including equipment failure, loss of control, and accidents. Always check the manufacturer’s specifications for the maximum towing weight and the Gross Vehicle Weight Rating (GVWR) of your vehicle. Never exceed the lowest weight rating of any component in your towing system, including the base plate, tow bar, and vehicle.

Safety Standards and Certifications

Base plates should meet or exceed industry safety standards. Look for base plates that are tested and certified by organizations like SAE International, which sets standards for automotive components. These certifications assure that the base plate has undergone rigorous testing and meets certain safety criteria.

Technical Specifications and Dimensions

Base plate specifications typically include dimensions, weight, and the type of materials used in its construction. Knowing the dimensions allows you to determine whether the base plate will fit your vehicle without any interference. The weight is essential for calculating the overall weight of your towing setup. Refer to the manufacturer’s specifications for precise technical details about your base plate model.
