Base Plate

What is a Base Plate?

Base Plate Overview

A base plate is a crucial component in flat towing, a method where a vehicle is towed behind another without using a trailer. It serves as the primary connection point between the towed vehicle and the tow bar, which, in turn, connects to the towing vehicle, such as an RV or a truck. This system facilitates a secure and stable towing experience by transferring the forces involved in stopping, starting, and turning.

Base Plate Components and Features

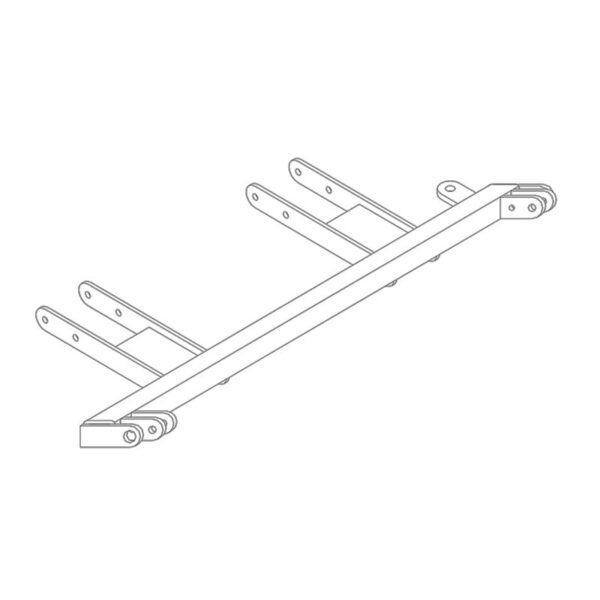

• A base plate typically comprises two main parts: the brackets that attach directly to the towed vehicle’s frame and the receiver points where the tow bar connects.
• Base plates are commonly constructed from high-strength steel to ensure durability and resilience against the stresses of towing. Steel provides the necessary strength to withstand substantial forces, ensuring the safety and longevity of the towing setup.

Key Features and Benefits of Base Plates

Safety and Reliability

Base plates provide a robust and reliable connection between the towed vehicle and the tow bar, directly impacting the safety of the towing process. A well-engineered base plate ensures that the towed vehicle moves in sync with the towing vehicle, reducing the risk of accidents caused by an unstable or improperly connected setup. By providing a secure and stable connection, base plates minimize the potential for sway and other dangerous movements during transit, contributing to a safer towing experience.

Custom Fit and Vehicle Compatibility

A vehicle-specific design is a key aspect of base plate effectiveness. This custom fit guarantees that the base plate integrates seamlessly with the vehicle’s frame, maximizing its structural integrity and towing capacity. This precision design ensures a secure and stable connection, which is crucial for safe towing.

• A custom fit reduces installation time and complexity, as the base plate is specifically designed to match the vehicle’s existing mounting points.
• Base plates are available for a wide variety of vehicle makes and models, including popular SUVs, sedans, and trucks from manufacturers like Ford, Chevrolet, and Jeep.

Durability and Build Quality

The longevity and performance of a base plate are significantly influenced by the materials used in its construction. High-quality base plates are typically made from robust materials such as powder-coated steel. This material selection not only provides exceptional strength but also offers excellent resistance to corrosion, rust, and wear, ensuring the base plate can withstand various environmental conditions. The build quality and material choices are crucial in maintaining the integrity of the towing system over time, guaranteeing consistent performance and safety.

Installation Guide: How to Install a Base Plate

Preparing for Installation

Before starting the installation, gather the necessary tools and equipment, including a socket wrench set, torque wrench, drill, and safety glasses. Additionally, ensure you have the manufacturer’s instructions and all the hardware included with the base plate kit. Place the vehicle on a level surface and engage the parking brake. Always wear safety glasses and gloves throughout the installation process to protect yourself.

Step-by-Step Installation

1. Carefully read the manufacturer’s instructions for the specific base plate model to understand the process and any specific requirements.
2. Position the base plate brackets against the vehicle’s frame, aligning them with the designated mounting points.
3. Secure the brackets using the provided hardware, ensuring that all bolts are tightened to the torque specifications outlined in the instructions.
4. Attach the tow bar receiver to the brackets, securing it with the appropriate pins or locking mechanisms.
5. Double-check all connections and hardware to ensure everything is securely fastened and aligned correctly.

Post-Installation Checklist

After the installation is complete, conduct a thorough inspection. Verify that all bolts are torqued to the specified values, all connections are secure, and the base plate is properly aligned. Test the system by attaching the tow bar to the towing vehicle and ensuring it functions correctly. Regularly inspect the base plate for wear and tear, especially before long trips. If you are not comfortable with any part of the installation process, consult a professional mechanic.

Base Plate Dimensions & Specifications

Dimension Data

Length: 34.5 inches, Width: 15.75 inches, Height: 6.25 inches. These measurements are approximate and can vary depending on the specific make and model of the base plate. Always refer to the product specifications for precise dimensions.

Material and Build

• Base plates are typically constructed from heavy-duty steel to provide maximum strength and durability. They are often powder-coated to resist corrosion and environmental damage, ensuring a long lifespan.
• Weight capacity can range from 5,000 to 10,000 pounds or more, depending on the specific design and intended use.

Choosing the Right Base Plate

Vehicle Compatibility

Selecting the right base plate involves ensuring compatibility with your specific vehicle make and model. Check the manufacturer’s specifications to confirm that the base plate is designed for your vehicle’s year, make, and trim. This ensures a proper fit and optimal performance. Using a base plate designed for a different vehicle can compromise the integrity of the towing system and potentially lead to safety issues.

Towing Needs

Assess your towing requirements, including the weight of the vehicle being towed and the frequency of use. Choose a base plate that is rated to handle the combined weight of your towed vehicle and any additional cargo or equipment. Consider the type of terrain and driving conditions you will encounter, as these factors can impact the durability and performance of the base plate. Selecting the correct base plate will improve the safety and efficiency of the towing process.
