Base Plate

What is a Tow Bar Base Plate?

A tow bar base plate is a crucial component for flat towing a vehicle. It serves as the primary connection point between the towed vehicle and the tow bar, allowing for safe and controlled towing. The base plate is specifically designed to attach to the frame of a vehicle, providing a robust and secure foundation for the towing process. Its purpose is to distribute the forces of towing evenly across the vehicle’s structure, ensuring stability and preventing damage during transit.

Understanding Base Plate Functionality

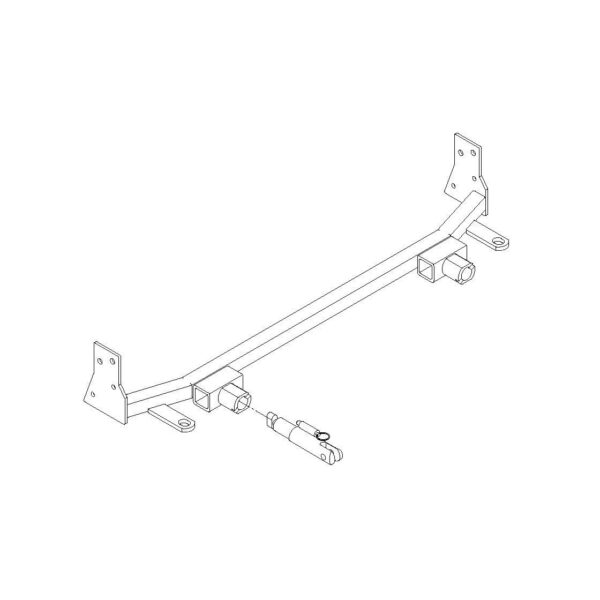

A base plate typically consists of two main components: the brackets that attach to the vehicle’s frame and the receiver tubes or connection points for the tow bar. The brackets are custom-designed to fit the specific make and model of the vehicle, ensuring a precise and secure fit. The receiver tubes provide a standardized connection point for the tow bar, allowing for easy attachment and detachment. The base plate is engineered to withstand the stresses of towing, including the weight of the towed vehicle and the forces generated by acceleration, braking, and changes in direction. It’s essential to choose a base plate that is compatible with both the vehicle being towed and the tow bar being used. Consult with a professional to ensure proper installation and compatibility, as incorrect installation can compromise safety.

Key Features and Benefits

Durability and Build Quality

Base plates are constructed from high-quality materials to ensure longevity and reliability under various conditions. The most common materials used in base plate construction include steel, known for its strength and durability, and aluminum, offering a lightweight alternative. Steel base plates often feature a powder-coated finish, which provides a protective layer against rust, corrosion, and the elements, extending the lifespan of the product. The powder-coating process involves applying a dry powder to the metal surface and then curing it under heat, creating a hard, durable finish. This finish not only protects the base plate from environmental damage but also enhances its appearance. The build quality of a base plate directly impacts its ability to withstand the stresses of towing, making material selection and manufacturing processes critical. Regular inspection and maintenance can further extend the lifespan of the base plate.

Custom Fit and Vehicle Compatibility

Base plates are designed to provide a custom fit for specific vehicle makes and models, ensuring optimal performance and safety. This custom fit is achieved by designing the base plate brackets to integrate seamlessly with the vehicle’s frame. The precise fit prevents any undue stress or strain on the vehicle’s structure during towing. It’s important to choose a base plate that is specifically designed for the vehicle being towed. This compatibility is determined by factors such as the vehicle’s frame design, weight capacity, and mounting points. When selecting a base plate, consider the manufacturer’s recommendations and ensure that the product is suitable for the vehicle’s model year. Improper fit can compromise the integrity of the towing system and lead to safety risks. Always verify vehicle compatibility before purchasing and installing a base plate.

• Compatible with:
• Jeep Wrangler (JL) 2018-2024
• Jeep Gladiator (JT) 2020-2024

Safety and Reliability

Base plates are engineered with several safety features to ensure secure and reliable towing. These features are designed to prevent separation between the towed vehicle and the tow bar during transit. One key safety aspect is the robust attachment of the base plate to the vehicle’s frame. The brackets are designed to withstand significant pulling forces and are securely bolted to the frame. Quality base plates also incorporate features to minimize play and ensure a tight connection with the tow bar. Regular inspection of the base plate, including the bolts and connection points, is essential to maintain safety. Always follow the manufacturer’s instructions for installation and usage to ensure the system operates as intended. Additionally, using safety cables is highly recommended to provide an added layer of security, preventing complete separation in the unlikely event of a primary connection failure.

• Robust Attachment to Vehicle Frame
• Safety Cables Compatibility

Easy Installation

Base plates are designed to be installed with common hand tools, although the specific process may vary depending on the vehicle make and model. The installation process generally involves attaching the brackets to the vehicle’s frame using the provided hardware. It’s important to follow the manufacturer’s instructions carefully and ensure all bolts are tightened to the specified torque. Most base plates come with detailed instructions and diagrams to guide the user through the installation process. However, if you are not comfortable with this procedure, consider professional installation to ensure the base plate is properly mounted and aligned. Incorrect installation can compromise the integrity of the towing system, making it unsafe. After installation, it’s crucial to test the connection and ensure everything is secure before towing.

1. Prepare the vehicle by removing any components that might obstruct the installation of the base plate brackets, such as the fascia.
2. Attach the base plate brackets to the vehicle frame using the provided bolts, nuts, and washers, ensuring they are tightened to the manufacturer’s specifications.

Base Plate Specifications and Technical Details

Dimensions and Measurements

Detailed dimensions of the base plate are essential for ensuring proper fit and compatibility with your vehicle and other towing components.

• Length: 45 inches
• Width: 11 inches
• Height: 7.5 inches
• Mounting Hole Diameter: 0.5 inches

Material and Finish

The choice of material and finish significantly impacts the durability, corrosion resistance, and overall performance of the base plate. Powder coating is commonly used to provide a protective and aesthetically pleasing finish.

Below is a detailed table that shows the material used, finish, and any other relevant specifications.

Weight Capacity

Weight capacity is a crucial specification that indicates the maximum weight the base plate can safely handle. Exceeding this capacity can lead to structural failure and potential safety hazards.

The base plate can handle a maximum towing weight of 5,000 lbs.

Installation and Compatibility Guide

Preparing for Installation

Before beginning the installation, gather all necessary tools and equipment to ensure a smooth and efficient process. Having all the required items on hand will prevent delays and ensure that the installation can be completed safely and correctly.

• Socket Set
• Wrench Set
• Torque Wrench
• Drill
• Safety Glasses

Step-by-Step Installation Instructions

The installation process involves attaching the base plate brackets to the vehicle’s frame. It is important to read the instructions carefully and follow each step to ensure the base plate is correctly and securely installed.

1. Position the base plate brackets against the vehicle frame, aligning them with the pre-drilled holes or mounting points.
2. Insert the provided bolts through the brackets and into the frame. Secure the bolts with washers and nuts, tightening them to the specified torque.

Vehicle Compatibility Check

Verify that the base plate is compatible with your vehicle’s make, model, and year to ensure a proper fit and safe towing. This table provides a quick reference for vehicle compatibility.

Base Plate Comparison Chart

A comparison chart is a valuable tool for evaluating different base plate options. It allows you to compare key features and specifications side-by-side, helping you make an informed decision based on your specific needs. The table below highlights the differences between the Base Plate and competitor products.

Care and Maintenance

Proper care and maintenance are essential to extend the lifespan of your base plate and ensure it functions safely and reliably. Regular inspections and maintenance will help prevent potential issues and keep your towing system in top condition. Following the manufacturer’s recommendations is important for optimal performance and safety.

Cleaning and Inspection

Regular cleaning and inspection are crucial for maintaining the performance and longevity of your base plate. Removing debris and inspecting for damage will ensure that your base plate is in good working order. Inspecting your base plate regularly can prevent future issues.

• Rinse the base plate with fresh water to remove dirt, salt, and other debris.
• Inspect the base plate for any signs of damage, such as cracks, rust, or corrosion.

Regular Maintenance Tips

Regular maintenance helps keep the base plate in good condition and ensures that it functions safely and reliably. Regularly performing these tasks will help maintain the longevity of your base plate.

• Check and tighten all bolts and fasteners periodically, especially before long trips.
• Lubricate moving parts, such as the tow bar connection points, to prevent rust and ensure smooth operation.

Related Towing Products

Enhance your towing setup with these related products for a safer and more convenient experience. Using these additional accessories will maximize safety.

• Tow Bar: Provides a secure connection between the base plate and the towing vehicle.
• Safety Cables: Ensures the base plate is secured to the vehicle.
